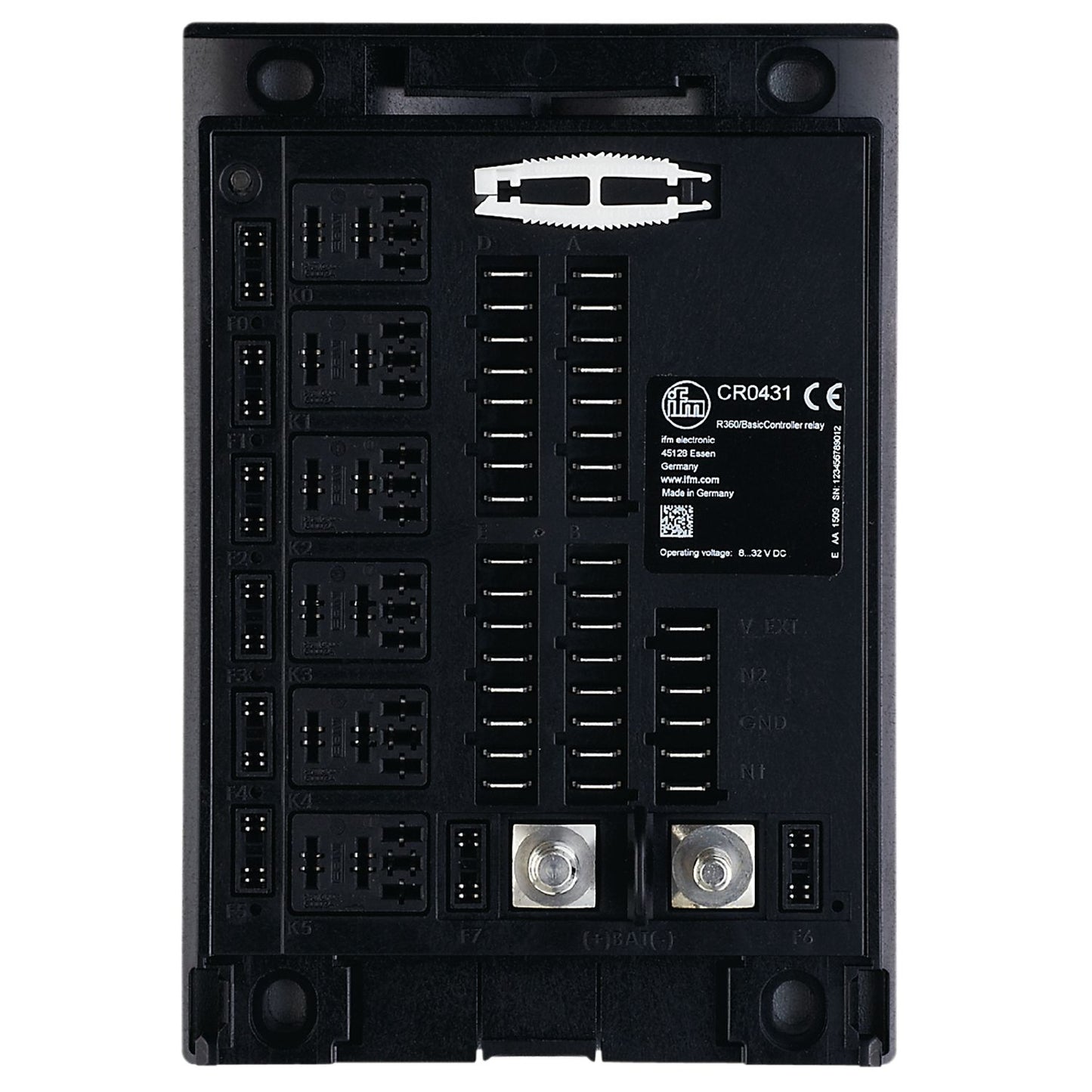

IFM CR0431 - Programmable controller for mobile machines R360/BasicController relay

For simple control functions in vehicles and mobile machines.
With many multifunctional configurable input and output channels.
High-performance CAN interfaces for various communication tasks.
For use in driver's cabin and control cabinet.
Freely programmable to IEC 61131-3 with CODESYS 2.3

Operating voltage [V]	8...32 DC
Current consumption [mA]	< 45

Inputs / outputs

Total number of inputs and outputs	14
Number of inputs and outputs	Number of digital inputs: 8; Number of analogue inputs: 4; Number of frequency inputs: 4; Number of resistor inputs: 4; Number of relay outputs: 6

Inputs

Number of frequency inputs	4
Number of resistor inputs	4
Number of digital inputs	8
Number of analogue inputs	4
Analogue input (current) [mA]	0...20
Analogue input (voltage) [V]	0...32

Outputs

Number of relay outputs	6

Software / programming

Parameter setting options	input/output functions
PLC function to IEC 61131-3	yes

Interfaces

Number of CAN interfaces	2

Tests / approvals

MTTF [years]	106

Weight [g]	561
Dimensions [mm]	163 x 112 x 46.1

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — CR0431-00 — 13.04.2023 —
