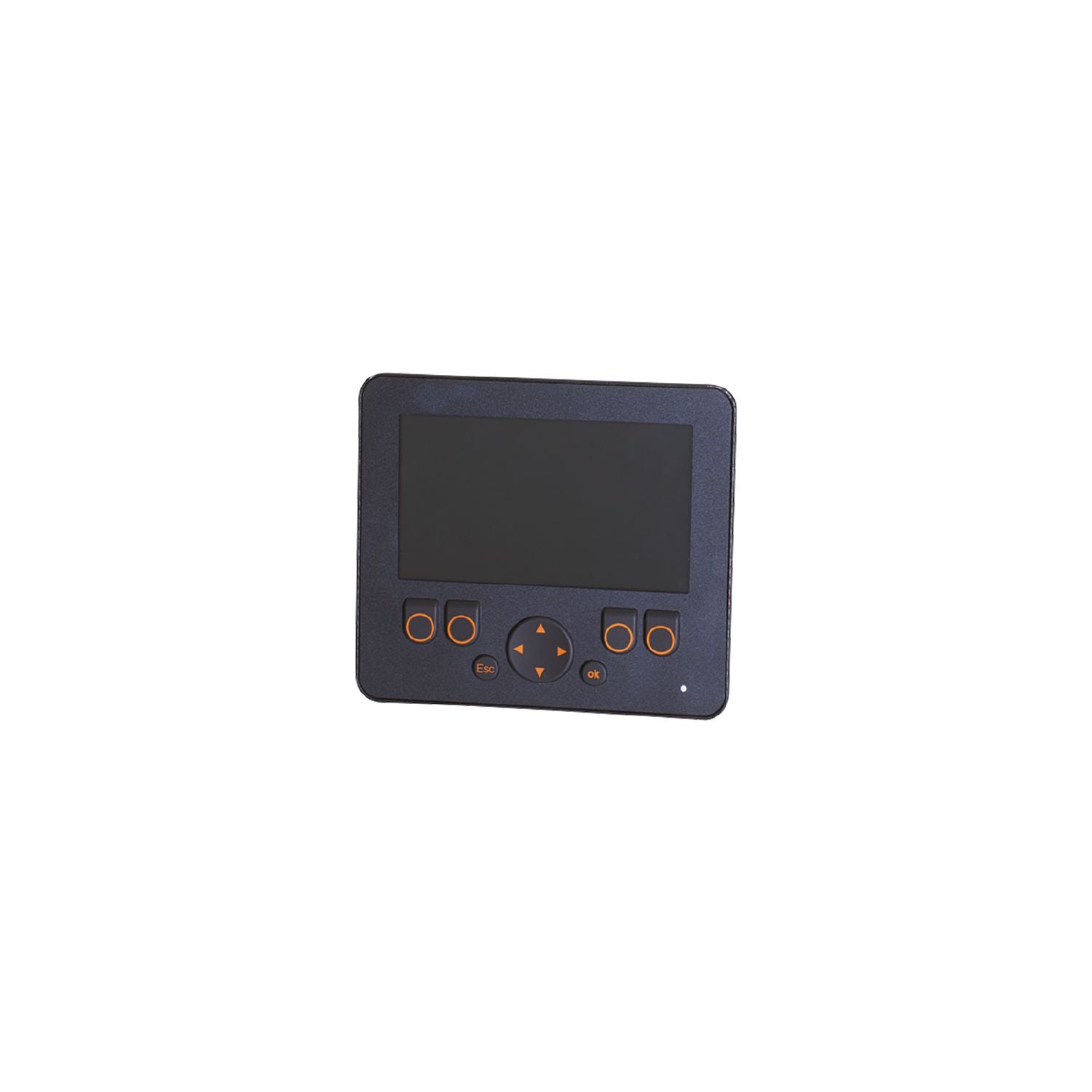

IFM CR0452 - Programmable graphic display for controlling mobile machines R360/BasicDisplay XL

Robust HMI for fast and simple installation.
Optimised for cost-efficient system solutions.
High-performance CAN interfaces for various communication tasks.
User-friendly handling by means of backlit function keys with tactile feedback.
Freely programmable to IEC 61131-3 with CODESYS 2.3

Operating voltage [V]	8...32 DC

Software / programming

PLC function to IEC 61131-3	yes

Interfaces

Number of CAN interfaces	1

Tests / approvals

MTTF [years]	237

Weight [g]	291.5
Type of mounting	panel / surface
Dimensions [mm]	109.5 x 124.5 x 40.5

Displays / operating elements

Display	4,3" colour display
Operating elements	6 freely programmable backlit function keys 1 navigation key for cursor function
Display resolution	480 x 272
Display type	colour display
Display size	4.3"
Display background illumination	LED

Pack quantity	1 pcs.

Electrical connection

	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — CR0452-00 — 13.04.2023 —
