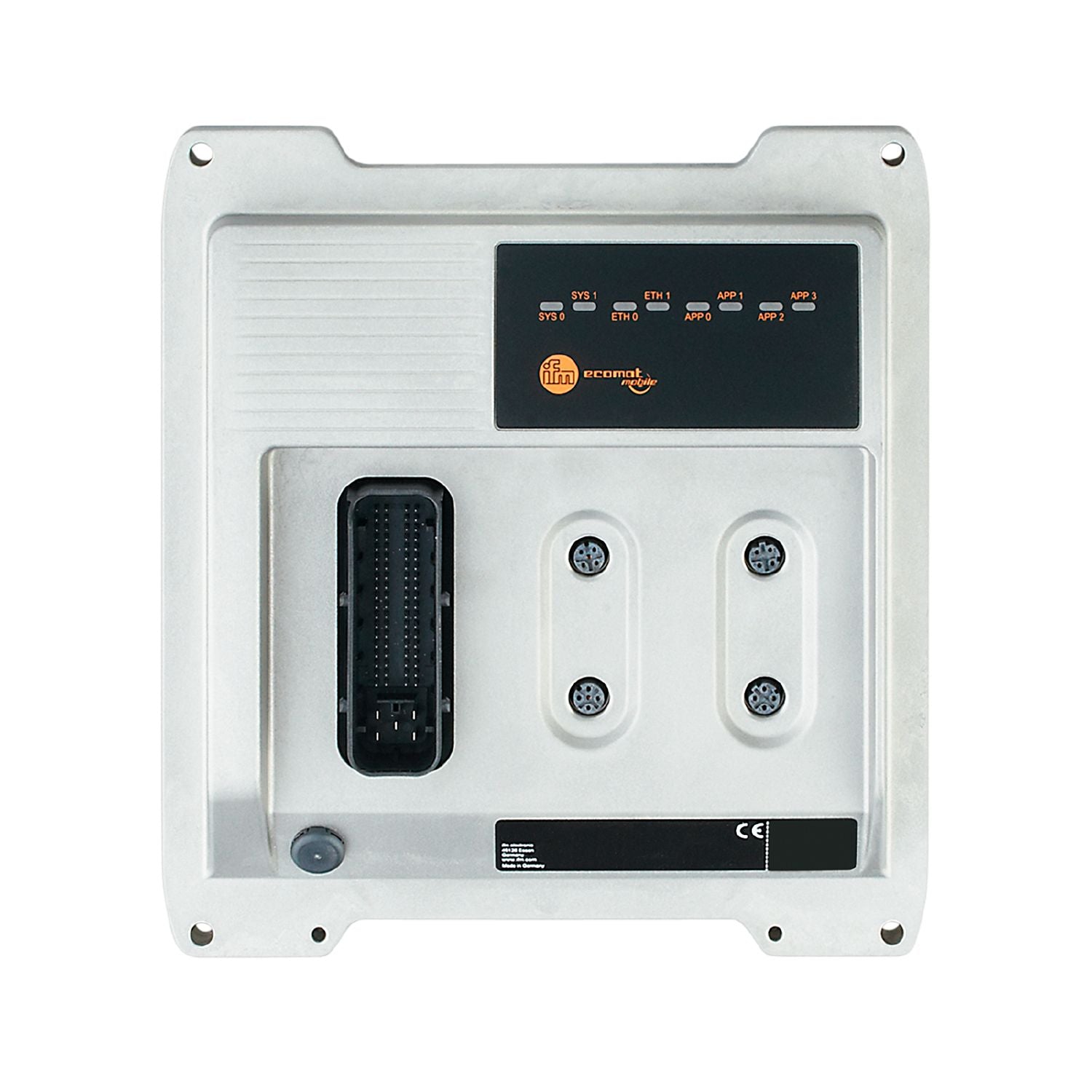

IFM CR0708 - ecomatController ecomatController/37/Std.

IFM CR0708 - ecomatController ecomatController/37/Std.

€906,30
€906,30
Sale Sold out
Taxes included.

📦 Ready for dispatch: 03.12.2025

SKU: CR0708


Total number of inputs 20
Total number of outputs 17
Communication interface Ethernet; CAN; RS232
Protection IP 65; IP 67;(for inserted connectors with individually sealed cores and inserted M12 connectors or sealing caps: IP 67)
Operating voltage [V] 8...32 DC;(t < 10 s: 36 V)
Nominal voltage DC [V] 12 / 24
Current consumption [mA] < 400
Power consumption [W] 8;(VBB30)
Reverse polarity protection yes;(in case of supply via the on-board system / battery)
Inputs / outputs
Total number of inputs and outputs 37
Inputs
Total number of inputs 20
Number of frequency inputs 8
Number of resistor inputs 4
Number of digital inputs 20
Number of analogue inputs 8
digital inputs, frequency signal(IN FREQUENCY-B)
Number
8
Plug ST A
IN0000...IN0003
IN0500...IN0503
Frequency input
function type frequency, Zykluszeit
software mode IN_PERIOD_RATIO_CSO/CSI
frequency [Hz] 0,01...5000
switching level high [V] > 70 % VBB30
switching level low [V] < 30 % VBB30
input resistance [Ω] 10000
accuracy ± 10 µs
Frequency input
function type frequency, Zykluszeit
software mode IN_PERIOD_RATIO_US_CSO/CSI
frequency [Hz] 0,1...5000
switching level high [V] > 70 % VBB30
switching level low [V] < 30 % VBB30
input resistance [Ω] 10000
accuracy ± 10 µs
Frequency input
function type frequency
software mode IN_FREQUENCY_CSO/CSI
frequency [Hz] 0,5...30000
switching level high [V] > 70 % VBB30
switching level low [V] < 30 % VBB30
input resistance [Ω] 10000
accuracy ± 10 µs
Frequency input
function type pulse
software mode IN_COUNT_CSO/CSI
frequency [Hz] 0...30000
switching level high [V] > 70 % VBB30
switching level low [V] < 30 % VBB30
input resistance [Ω] 10000
accuracy ± 10 µs
Frequency input
function type pulse, incremental
software mode IN_INC_ENCODER_CSO/CSI
frequency [Hz] 0,0625...5000
switching level high [V] > 70 % VBB30
switching level low [V] < 30 % VBB30
input resistance [Ω] 10000
accuracy ± 10 µs
Frequency input
function type phase
software mode IN_PHASE_CSO/CSI
frequency [Hz] 0,0625...5000
switching level high [V] > 70 % VBB30
switching level low [V] < 30 % VBB30
input resistance [Ω] 10000
accuracy ± 10 µs
Analogue input
function type Voltage
software mode IN_VOLTAGE_10
input range [V] 0...10
input resistance [Ω] 67600
Resolution 12 Bit
accuracy 100 mV
input frequency [Hz] < 330
diagnostic level low 0 V; (parameterisable)
diagnostic level high 10 V; (parameterisable)
Digital input
function type binary, High-Side
software mode IN_DIGITAL_CSO
switching level high [V] > 65 % VBB30; (parameterisable)
switching level low [V] < 25 % VBB30; (parameterisable)
Resolution 12 Bit
accuracy 960 mV
input frequency [Hz] < 330
input resistance [Ω] 10000
diagnostic level low 0 % VBB30; (parameterisable)
diagnostic level high 100 % VBB30; (parameterisable)
Digital input
function type binary, low-side
software mode IN_DIGITAL_CSI
switching level high [V] > 70 % VBB30; (parameterisable)
switching level low [V] < 30 % VBB30; (parameterisable)
Resolution 12 Bit
accuracy 320 mV
input frequency [Hz] < 330
input resistance [Ω] 10000
diagnostic level low 0 % VBB30; (parameterisable)
diagnostic level high 400 % VBB30; (parameterisable)
multifunction inputs, analogue / digital (IN MULTIFUNCTION-A)
Number
8
Plug ST A
IN0100...IN0103
IN0600...IN0603
Analogue input
function type Current
software mode IN_CURRENT_CSI
input range [mA] 0...20
input resistance [Ω] 298
Resolution 12 Bit
accuracy ± 345 µA
input frequency [Hz] < 330
diagnostic level low 0 mA; (parameterisable)
diagnostic level high 20 mA; (parameterisable)
Analogue input
function type Voltage
software mode IN_VOLTAGE_10
input range [V] 0...10
input resistance [Ω] 67600
Resolution 12 Bit
accuracy 100 mV
input frequency [Hz] < 330
diagnostic level low 0 V; (parameterisable)
diagnostic level high 10 V; (parameterisable)
Analogue input
function type Voltage
software mode IN_VOLTAGE_32
input range [V] 0...32
input resistance [Ω] 51000
Resolution 12 Bit
accuracy 320 mV
input frequency [Hz] < 330
diagnostic level low 0 V; (parameterisable)
diagnostic level high 32 V; (parameterisable)
Analogue input
function type Voltage, ratiometric
software mode IN_VOLTAGE_RATIO
input range [V] 0...100 % VBB30
input resistance [Ω] 51000
Resolution 12 Bit
accuracy 320 mV
input frequency [Hz] < 330
diagnostic level low 0 ‰; (parameterisable)
diagnostic level high 1000 ‰; (parameterisable)
Digital input
function type binary, low-side
software mode IN_DIGITAL_CSI
switching level high [V] > 70 % VBB30
switching level low [V] < 30 % VBB30
Resolution 12 Bit
accuracy 320 mV
input frequency [Hz] < 330
input resistance [Ω] 9500
diagnostic level low 1 V; (parameterisable)
diagnostic level high 95 % VBB30; (parameterisable)
digital / resistor inputs (IN RESISTOR-A)
Number
4
Plug ST A
IN0400...IN0401
IN0900...IN0901
Digital input
function type binary, low-side
software mode IN_DIGITAL_CSI
switching level high [V] > 70 % VBB30
switching level low [V] < 30 % VBB30
Resolution 12 Bit
accuracy 320 mV
input frequency [Hz] < 330
input resistance [Ω] 3200
diagnostic level low 0 % VBB30; (parameterisable)
diagnostic level high 400 % VBB30; (parameterisable)
Resistor input
function type binary, high-side
software mode IN_RESISTOR
input range [Ω] 16...30000
measuring current [mA] < 2,0
Resolution 12 Bit
accuracy 16...3000 Ω: ± 600 Ω
3000...15000 Ω: ± 1500 Ω
15000...30000 Ω: ± 3000 Ω
diagnostic level low 0 Ω; (parameterisable)
diagnostic level high 31000 Ω; (parameterisable)
reset (RESET-COM)
Number
1
Digital input
switching level high [V] > 70 % VBB30
switching level low [V] < 30 % VBB30
accuracy 1,6 V
Outputs
Total number of outputs 17
Number of digital outputs 16
Number of analogue outputs 1
Number of PWM outputs 16
Number of PWM-I outputs 10
Number of outputs with H-bridge 4;(2 x 2)
output groups
Number
2
Plug ST A
VBB0, VBB1
Output group switch
function type second independent switch-off mode of the output group
Voltage range [V] 6...32 DC
voltage measurement [V] 0...36
voltage measurement accuracy [mV] 360
diagnostic function current monitoring, voltage monitoring
lower limit of current monitoring [mA] 0; (parameterisable)
upper limit of current monitoring [mA] 12000; (parameterisable)
digital / PWM outputs; 4,0 A; H bridge (OUT PWM-40-BRIDGE-A)
Number
4
Plug ST A
OUT0006, OUT0007
OUT0106, OUT0107
PWM output
function type binary, high-side
software mode OUT_PWM_CSO
Voltage range [V] 6...32 DC
switching current [A] 0,025...4
output frequency [Hz] 20...2000
pulse/pause ratio 1...1000 ‰; (parameterisable)
Resolution 1 ‰; (20...250 Hz)
protective circuitry inductive load; thermal protection
current measurement [A] 0...6
accuracy of the current measurement [A] 0,04
Diagnostic functions wire break; short circuit; current monitoring
lower limit of current monitoring [mA] 0; (parameterisable)
upper limit of current monitoring [mA] 4000; (parameterisable)
PWM output
function type binary, low-side
software mode OUT_PWM_CSI
Voltage range [V] 6...32 DC
switching current [A] 0,025...4
output frequency [Hz] 20...500
pulse/pause ratio 1...1000 ‰; (parameterisable)
Resolution 1 ‰; (20...250 Hz)
protective circuitry inductive load; thermal protection
PWM-I output
function type current-controlled
software mode OUT_CURRENT_CSO
Voltage range [V] 6...32 DC
switching current [A] 0,025...4
output frequency [Hz] 20...2000
control range [A] 0,05...4
setting resolution [mA] 1
control resolution [mA] 2
Min. load resistance [Ω] 12 V: 3 Ω / 24 V: 6 Ω
protective circuitry inductive load; thermal protection
current measurement [A] 0...6
accuracy of the current measurement [A] 0,04
Diagnostic functions wire break; short circuit; current monitoring
lower limit of current monitoring [mA] 0; (parameterisable)
upper limit of current monitoring [mA] 4000; (parameterisable)
Digital output
function type binary, high-side
software mode OUT_DIGITAL_CSO
Voltage range [V] 6...32 DC
switching current [A] 0,025...4
protective circuitry inductive load; thermal protection
current measurement [A] 0...6
accuracy of the current measurement [A] 0,04
switching status monitoring [V] 2
switching status monitoring accuracy [V] ± 1
diagnostic function wire break; short circuit; current monitoring
lower limit of current monitoring [mA] 0; (parameterisable)
upper limit of current monitoring [mA] 4000; (parameterisable)
Digital output
function type binary, low-side
software mode OUT_DIGITAL_CSI
Voltage range [V] 6...32 DC
switching current [A] 0,025...4
protective circuitry inductive load; thermal protection
digital / PWM outputs; 2,5 A (OUT PWM-25-A)
Number
6
Plug ST A
OUT0000, OUT0002, OUT0004
OUT0100, OUT0102, OUT0104
PWM output
function type binary, high-side
software mode OUT_PWM_CSO
Voltage range [V] 6...32 DC
switching current [A] 0,025...2,5
output frequency [Hz] 20...2000
pulse/pause ratio 1...1000 ‰; (parameterisable)
Resolution 1 ‰; (20...250 Hz)
protective circuitry inductive load; thermal protection
current measurement [A] 0...4
accuracy of the current measurement [mA] 37,5
Diagnostic functions wire break; short circuit; current monitoring
lower limit of current monitoring [mA] 0; (parameterisable)
upper limit of current monitoring [mA] 2500; (parameterisable)
PWM-I output
function type current-controlled
software mode OUT_CURRENT_CSO
Voltage range [V] 6...32 DC
switching current [A] 0,025...2,5
output frequency [Hz] 20...2000
control range [A] 0,05...2,5
setting resolution [mA] 1
control resolution [mA] 2
Min. load resistance [Ω] 12 V: 3 Ω / 24 V: 6 Ω
protective circuitry inductive load; thermal protection
