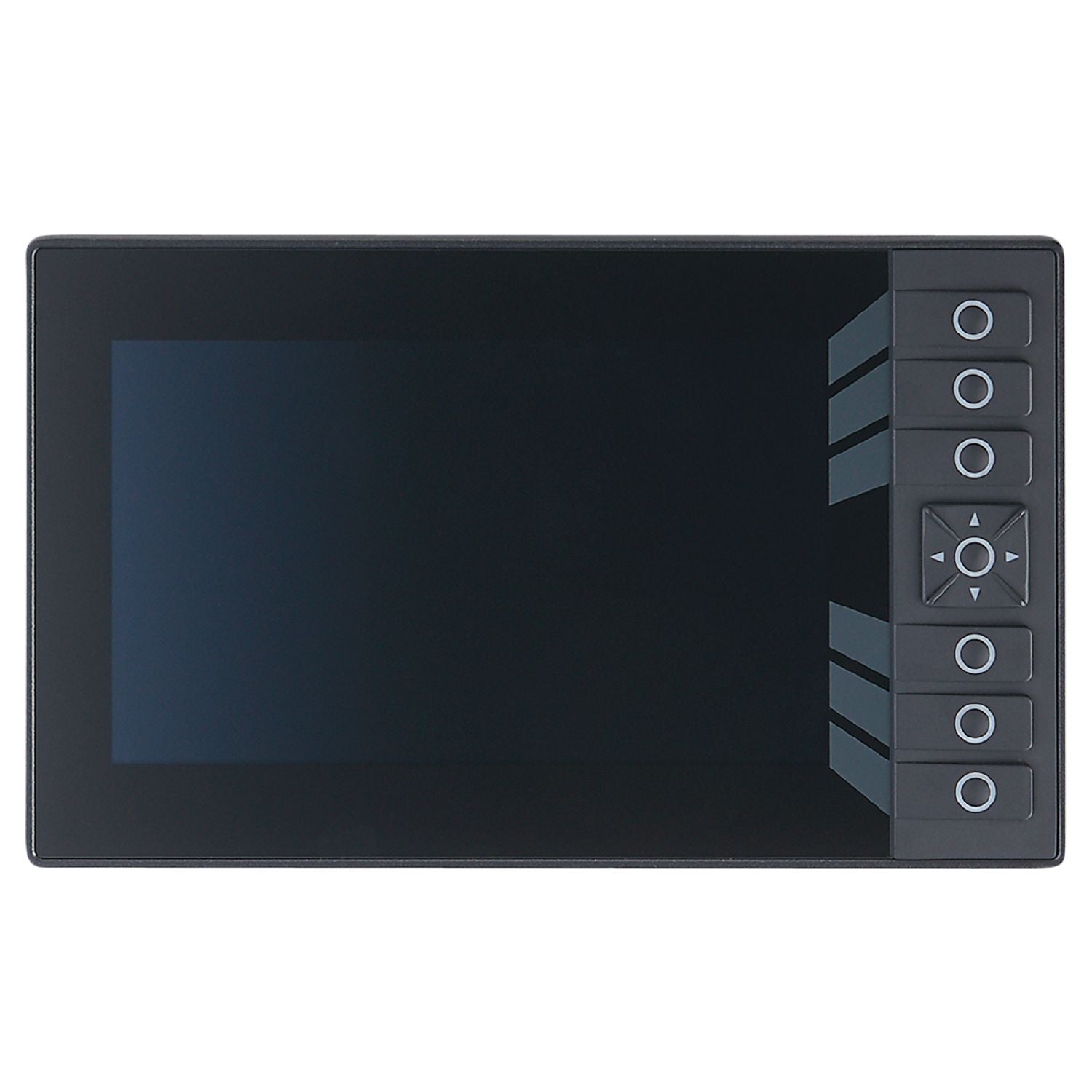

Powerful, robust HMI with modern 64-bit architecture. RGB backlit function keys with tactile feedback.. High-performance USB interface for data logging, support for Ethernet cameras. High-performance CAN and Ethernet interfaces for various communication tasks. Freely programmable to IEC 61131-3 with CODESYS 3.5
Operating voltage [V]
8...32 DC
Nominal voltage DC [V]
12 / 24
Current consumption [mA]
< 1125;(24 V DC; with switched outputs: < 5000 mA)
Power consumption [W]
27
Outputs
Audio output
Stereo Line-Out
Software / programming
Parameter setting options
CODESYS 3.5
PLC function to IEC 61131-3
yes
Operating system
Embedded Linux 4.14
Interfaces
Communication interface
Ethernet; CAN; USB
Number of CAN interfaces
2
Number of Ethernet interfaces
1
Number of USB interfaces
1
CAN
Transmission rate
20 kBit/s... 1 MBit/s
Protocol
CANopen; SAE J1939; free protocol
Profile
CiA DS 301 Version 4; CiA DS 401 Version 1.4
Interface
CAN Interface 2.0 A/B ISO 11898
Ethernet
Transmission standard
10Base-T; 100Base-TX
Transmission rate
100 MBit/s
Protocol
TCP/IP; UDP; Modbus TCP; OPC UA; EtherNet/IP
Note on interfaces
OPC UA Micro Embedded Device Server
USB
Transmission rate
< 480 MBit/s
Version
2.0
Operating conditions
Ambient temperature [°C]
-35...65
Note on ambient temperature
2000 m: -30...65 °C
3000 m: -30...60 °C
Storage temperature [°C]
-35...85
Max. relative air humidity [%]
90;(non condensing)
Max. height above sea level [m]
3000
Protection
IP 65; IP 67;(for inserted connectors with individually sealed cores and inserted M12 connectors or sealing caps: IP 67)
Pollution degree
2
Tests / approvals
EMC
UN/ECE-R10 noise emission and noise interference:
100 V/m
DIN EN 61000-6-2 ESD
DIN EN 61000-6-4 Burst
ISO 7637-2 pulse 1
severity level 4 / function state C (24 V)
ISO 7637-2 pulse 2a
severity level 4 / function state A (24 V)
ISO 7637-2 pulse 2b
severity level 4 / function state C (24 V)
ISO 7637-2 pulse 3a
severity level 4 / function state A (24 V)
ISO 7637-2 pulse 3b
severity level 4 / function state A (24 V)
ISO 7637-2 pulse 4
severity level 4 / function state A (24 V)
ISO 7637-2 pulse 5
severity level 3 / function state C (24 V)
ISO 7637-2 pulse 4
severity level 4 / function state A (12 V)
Continuous shock resistance
ISO 16750-3
30 g 6 ms / 24000 shocks
Fast temperature change
EN 60068-2-30 damp heat: cyclical
55 ° C upper temperature limit / 6 cycles
EN 60068-2-78 damp heat: constant
40 ° C 93 % rH / test period 21 days
Vibration resistance
ISO 16750-3 Test VII
random, mounting place car body
EN 60068-2-6 Sinus
10...500 Hz / 10 cycles/axis, sine
Salt spray test
EN 60068-2-52 Salt spray
severity level 3 / motor vehicle
MTTF [years]
45
Weight [g]
1476.5
Type of mounting
panel / surface
Dimensions [mm]
223.6 x 137.4 x 46.5
Materials
diecast aluminium powder-coated; Display: glass anti-reflective and hardened
Information on service life
pushbuttons:
1000000 Betätigungen
navigation key with pushbutton:
1000000 Betätigungen
Display LED lifetime:
> 70000 h
Displays / operating elements
Display
status LED
1 LED, RGB
Operating elements
LED, RGB
Operating elements
6
Operating elements
1
navigation key with pushbutton
Display resolution
800 x 480
Display type
colour display
Display size
7"
Aspect ratio
16:10
Display background illumination
LED
Colour depth
18 Bit
Brightness [cd/m²]
< 800;(adjustable: 0...100 %; In steps of: 1 %)
Contrast ratio
1000:1
Hardware
Processor
ARM Dual Core 64 Bit 800 MHz
Working memory
1 GByte RAM
Mass storage
2 GByte Flash
Data memories
Real-time clock
yes; UTC, battery buffered
Pack quantity
1 pcs.
