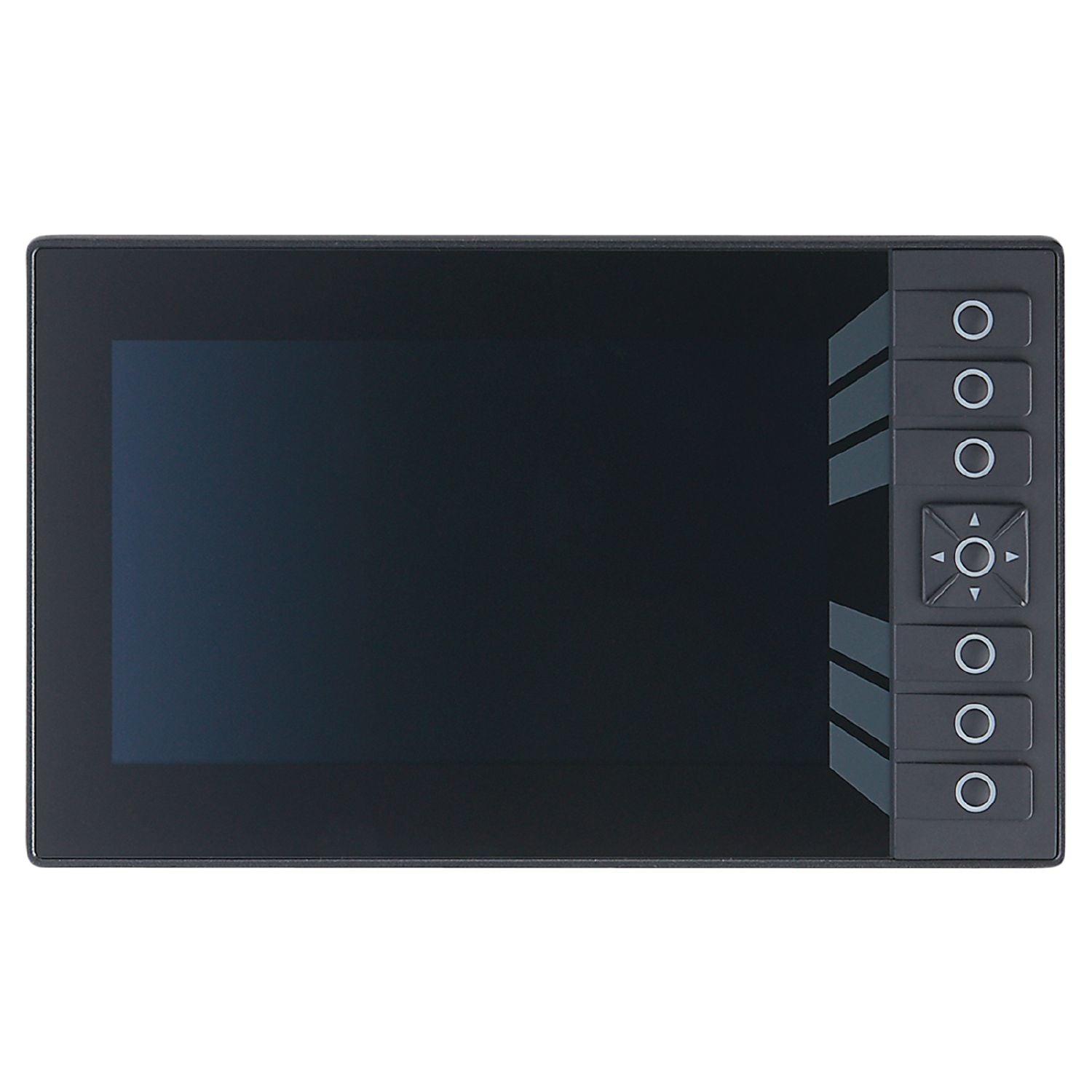

Powerful, robust HMI with modern 64 bit architecture and optional touch screen. Versions with RGB backlit function keys with tactile feedback. High-performance USB interface for data logging and support of analogue cameras and Ethernet cameras. High-performance CAN and Ethernet interfaces for various communication tasks. Programmable to IEC 61131-3 with CODESYS
Operating voltage [V]
8...32 DC
Nominal voltage DC [V]
12 / 24
Current consumption [mA]
< 5000
Power consumption [W]
27
Inputs / outputs
Number of inputs and outputs
Number of digital inputs: 2; Number of digital outputs: 2
The temperature of the mainboard must not exceed 85 °C.
for further information please see the operating instructions
Storage temperature [°C]
-35...85
Max. relative air humidity [%]
90;(non condensing)
Max. height above sea level [m]
3000
Protection
IP 65; IP 67;(for inserted connectors with individually sealed cores and inserted M12 connectors or sealing caps: IP 67)
Pollution degree
2
Chemical media
ISO 16750-5
AA, BA, BD, HLP, CC, DB, DC, DD, CA
only one chemical permitted at a time
Tests / approvals
EMC
UN/ECE-R10 noise emission and noise interference:
100 V/m
DIN EN 61000-6-2 ESD
DIN EN 61000-6-4 Burst
ISO 10605 ESD
ISO 7637-2 pulse 1
severity level 4 / function state C (24 V)
ISO 7637-2 pulse 2a
severity level 4 / function state A (24 V)
ISO 7637-2 pulse 2b
severity level 4 / function state C (24 V)
ISO 7637-2 pulse 3a
severity level 4 / function state A (24 V)
ISO 7637-2 pulse 3b
severity level 4 / function state A (24 V)
ISO 7637-2 pulse 4
severity level 4 / function state A (24 V)
ISO 7637-2 pulse 5
severity level 3 / function state C (24 V)
ISO 7637-2 pulse 4
severity level 4 / function state A (12 V)
Continuous shock resistance
ISO 16750-3
30 g 6 ms / 24000 shocks
Fast temperature change
EN 60068-2-30 damp heat: cyclical
55 ° C upper temperature limit / 6 cycles
EN 60068-2-78 damp heat: constant
40 ° C 93 % rH / test period 21 days
Vibration resistance
ISO 16750-3 Test VII
random, mounting place car body
EN 60068-2-6 Sinus
10...500 Hz / 10 cycles/axis, sine
Salt spray test
EN 60068-2-52 Salt spray
severity level 3 / motor vehicle
MTTF [years]
37
Railway applications
DIN EN 50155 Pkt 12.2
EN 50121-3-2
EN 55016
Weight [g]
1512
Type of mounting
for mounting base
Dimensions [mm]
223.6 x 137.4 x 46.5
Materials
housing: diecast aluminium powder-coated; Display: glass anti-reflective and hardened
Information on service life
pushbuttons:
1000000 Betätigungen
navigation key with pushbutton:
1000000 Betätigungen
Display-LED Lebensdauer:
> 70000 h
Displays / operating elements
Display
status LED
1 LED, multi-colour freely programmable
Operating elements
6
freely programmable backlit function keys
1
navigation key with pushbutton
Display resolution
800 x 480
Display type
colour display in optical bonding technology
Display size
7"
Aspect ratio
16:10
Display background illumination
LED
Colour depth
18 Bit
Brightness [cd/m²]
< 800;(adjustable: 0...100 %; In steps of: 1 %)
Contrast ratio
1000:1
Touchscreen version
PCAP
Hardware
Processor
ARM Quad Core 64 Bit 1,2 GHz
Working memory
1 GByte RAM
Mass storage
8 GByte Flash
Non-volatile memory
16 kByte
Data memories
Real-time clock
yes; UTC, battery buffered
Pack quantity
1 pcs.
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — CR1077-01 — 14.11.2023 —
