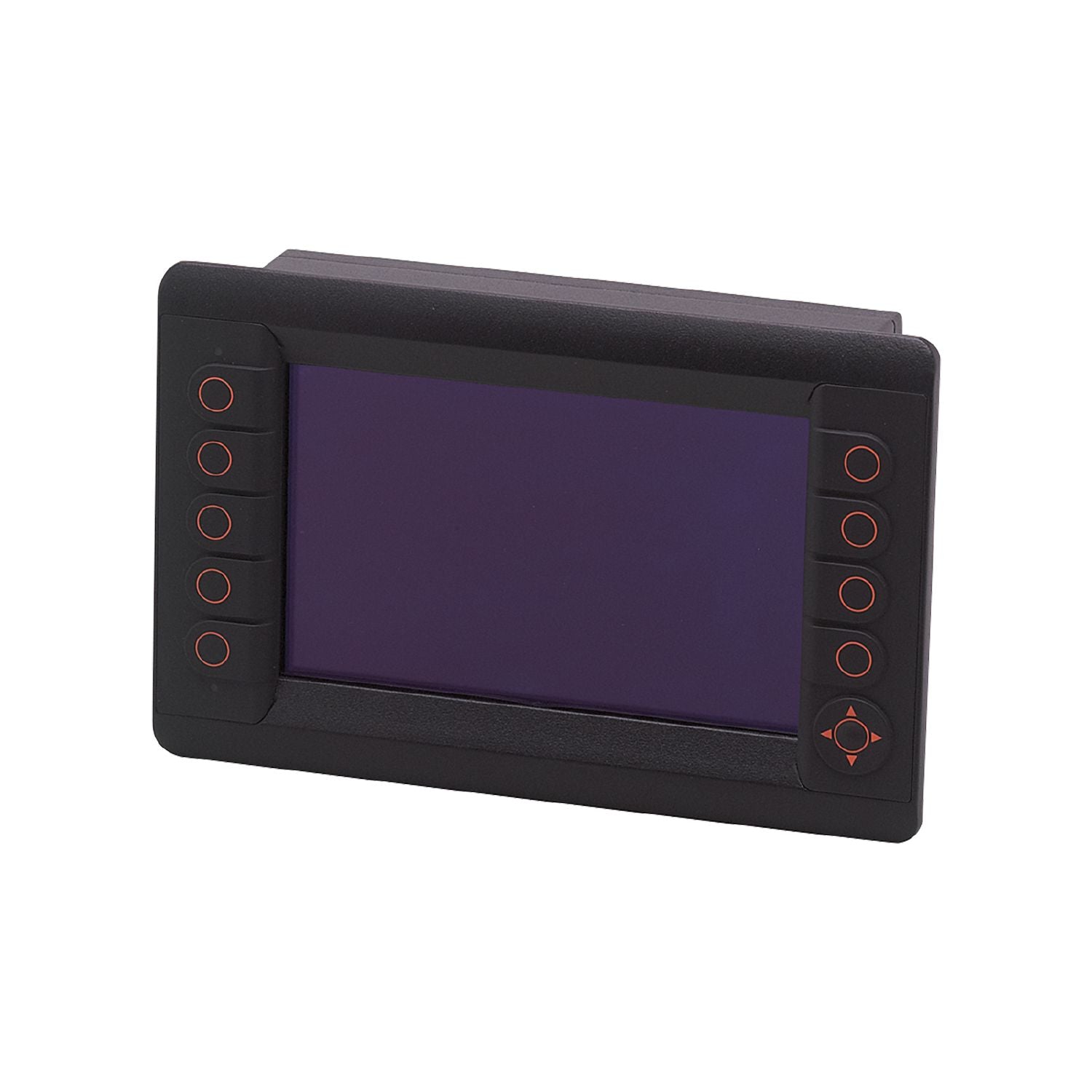

IFM CR1082 - Programmable graphic display for controlling mobile machines R360/PDM NG/DialogDisplay

Robust HMIs with backlit function keys with tactile feedback and touch screen.
High-performance CAN interfaces for various communication tasks.
Freely programmable to IEC 61131-3 with CODESYS 3.5 or CODESYS 2.3.
USB interface for data logging and optional interface for analogue cameras

Operating voltage [V]	10...32 DC
Power consumption [W]	7.2

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 1; Number of analogue inputs: 1; Number of digital outputs: 1

Inputs

Number of digital inputs	1
Number of analogue inputs	1
Analogue input (current) [mA]	0...20
Analogue input (voltage) [V]	0...32

Outputs

Number of digital outputs	1

Software / programming

PLC function to IEC 61131-3	yes

Interfaces

Number of CAN interfaces	4
Number of Ethernet interfaces	1
Number of USB interfaces	2
Number of video interfaces (CVBS)	2

Weight [g]	1694
Type of mounting	panel / surface
Dimensions [mm]	146 x 225 x 64.5

Displays / operating elements

Display	7" colour display
Operating elements	1 touch screen 9 freely programmable backlit function keys 1 navigation key with pushbutton
Display resolution	800 x 480
Display type	colour display
Display size	7"
Display background illumination	LED

Data memories

Real-time clock	yes

Pack quantity	1 pcs.

Electrical connection

	Connector: 1 x M12
