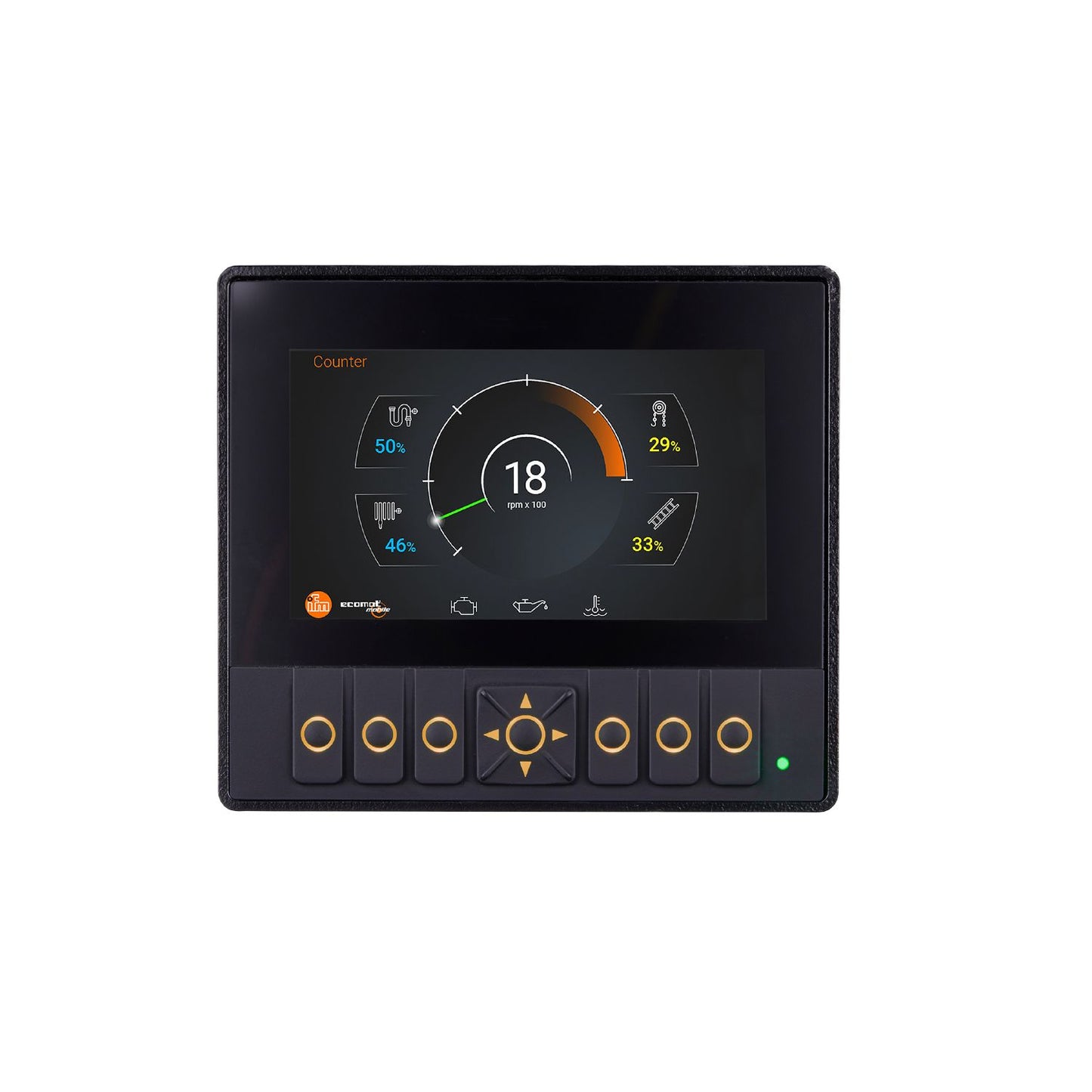

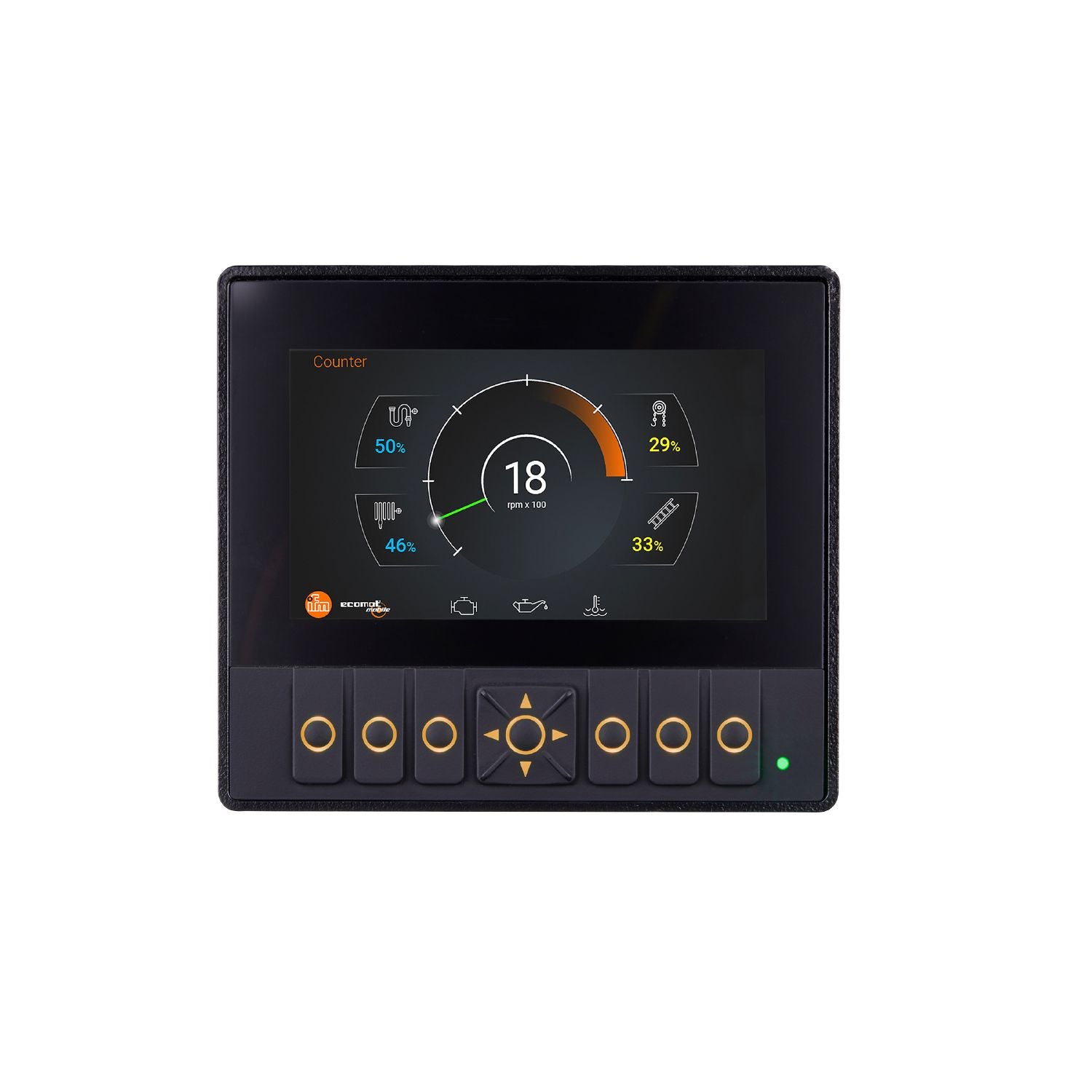

Powerful, robust HMI with modern 64-bit architecture. RGB backlit function keys with tactile feedback.. High-performance USB interface as service interface. High-performance CAN interface for various communication tasks. Freely programmable to IEC 61131-3 with CODESYS 3.5
Application
for mobile applications; For use in industrial environments; for use in wet environments
Operating voltage [V]
8...32 DC;(to SELV/PELV)
Nominal voltage DC [V]
12 / 24
Current consumption [mA]
< 333;(24 V DC)
Power consumption [W]
8
Inputs / outputs
Number of inputs and outputs
Number of digital inputs: 1
Inputs
Number of digital inputs
1;(non-configurable service input)
Software / programming
Parameter setting options
CODESYS 3.5; Qt
PLC function to IEC 61131-3
yes
Operating system
Embedded Linux
Interfaces
Communication interface
CAN; USB
Number of CAN interfaces
1
Number of USB interfaces
1
CAN
Transmission rate
10 kBit/s... 1 MBit/s
Protocol
CANopen; SAE J1939; free protocol
Profile
CiA DS 301 Version 4.2; CiA DS 401 Version 1.4
Interface
CAN Interface 2.0 A/B ISO 11898
Factory settings
Transmission rate: 250 kBit/s
USB
Transmission rate
< 480 MBit/s
Version
2.0
Operating conditions
Ambient temperature [°C]
-30...65
Note on ambient temperature
2000 m: -30...65 °C
3000 m: -30...61 °C
4000 m: -30...60 °C
5000 m: -30...58 °C
The mainboard temperature must not exceed 80 °C.
for further information please see the operating instructions
Storage temperature [°C]
-30...85
Max. relative air humidity [%]
90;(non condensing)
Max. height above sea level [m]
5000
Protection
IP 65; IP 67
Pollution degree
2;(before installation and when the device is replaced)
Chemical media
ISO 16750-5
AA, BA, BD, CC, DB, DC, DD, ED
only one chemical permitted at a time
Tests / approvals
EMC
UN/ECE-R10 noise emission and noise interference:
100 V/m
DIN EN 61000-6-2
DIN EN 61000-6-4
DIN EN 13766-1
ISO 10605 ESD
immunity ISO 11452-1
ISO 7637-2 pulse 1
severity level 4 / function state C (24 V)
ISO 7637-2 pulse 2a
severity level 4 / function state A (24 V)
ISO 7637-2 pulse 2b
severity level 4 / function state C (24 V)
ISO 7637-2 pulse 3a
severity level 4 / function state A (24 V)
ISO 7637-2 pulse 3b
severity level 4 / function state A (24 V)
ISO 16750-2 pulse 4
severity level 4 / function state A (12 V)
ISO 16750-2 pulse 4
severity level 4 / function state A (24 V)
ISO 16750-2 pulse 5
severity level 3 / function state C (24 V)
ISO 16750-2 pulse 4
severity level 4 / function state A (12 V)
Continuous shock resistance
ISO 16750-3
30 g 6 ms / 24000 shocks
Fast temperature change
EN 60068-2-30 damp heat: cyclical
55 ° C upper temperature limit / 6 cycles
EN 60068-2-78 damp heat: constant
40 ° C 93 % rH / test period 21 days
Vibration resistance
ISO 16750-3 Test VII
random, mounting place car body
EN 60068-2-6 Sinus
10...500 Hz / 0.72 mm / 10 g 10 cycles/axis, sine
Salt spray test
EN 60068-2-52 Salt spray
severity level 3 / motor vehicle
Railway applications
DIN EN 50155 Pkt 12.2
EN 50121-3-2
EN 55016
Weight [g]
509.4
Type of mounting
panel / surface; installation in panels or panel cutouts;(panel cutout: 114 x 99 mm)
Dimensions [mm]
125.1 x 110 x 41.3
Materials
housing: diecast aluminium powder-coated; Display: glass anti-reflective and hardened; rear of the housing: plastics; diaphragm: Gore-Tex
Information on service life
pushbuttons:
750000 Betätigungen
navigation key with pushbutton:
750000 Betätigungen
Display-LED Lebensdauer:
> 50000 h
Displays / operating elements
Display
status LED
1 LED, multi-colour freely programmable
Operating elements
6
freely programmable backlit function keys
1
navigation key with central confirmation button
Display resolution
800 x 480
Display type
colour display
Display size
4.3"
Aspect ratio
16:10
Display background illumination
LED
Colour depth
24 Bit
Brightness [cd/m²]
1000;(adjustable: 0...100 %; In steps of: 1 %)
Contrast ratio
800:1
Hardware
Processor
ARM Dual Core 64 Bit 1,4 GHz
Working memory
1 GByte RAM
Mass storage
4 GByte Flash
Non-volatile memory
8 kByte
Data memories
Real-time clock
yes; UTC, battery buffered
Pack quantity
1 pcs.
Electrical connection - CAN
Connector: 1 x M12; coding: A
Electrical connection - USB
Connector: 1 x M12; coding: B
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — CR1141-00 — 21.03.2024 —
