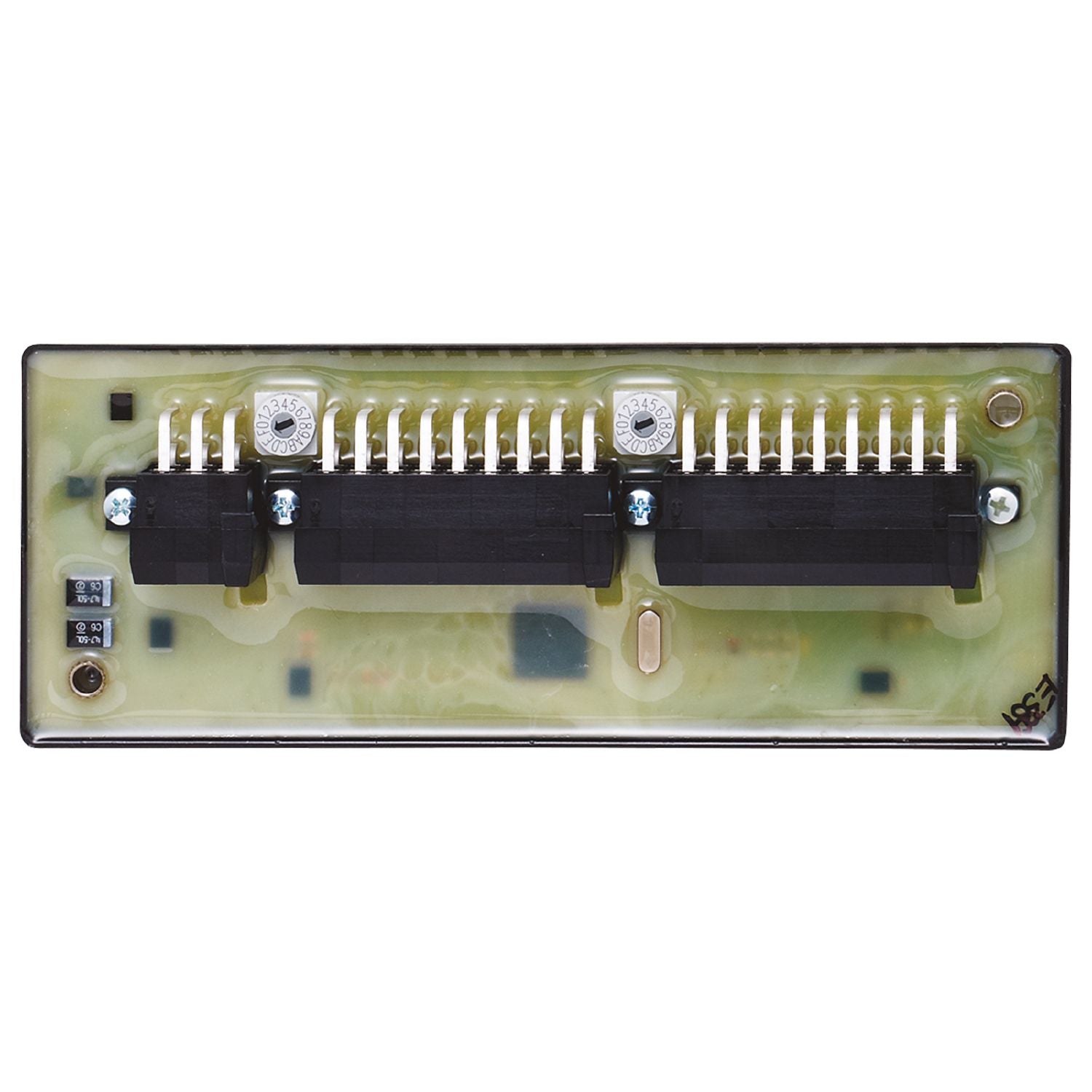

IFM CR2012 - I/O module for mobile machines R360/MODULE/I/12/O/4/10V

Decentralised connection of sensors and actuators.
Use as a controller for cockpit or operating panels of mobile machines.
With many multifunctional configurable inputs and outputs.
High-performance CAN interface for various communication tasks

Operating voltage [V]	10...32 DC

Inputs / outputs

Total number of inputs and outputs	16
Number of inputs and outputs	Number of digital inputs: 16; Number of analogue inputs: 4; Number of digital outputs: 4

Inputs

Number of digital inputs	16
Number of analogue inputs	4
Analogue input (voltage) [V]	0...10

Outputs

Number of digital outputs	4
Number of PWM outputs	2

Software / programming

Parameter setting options	input/output functions

Interfaces

Number of CAN interfaces	1

Tests / approvals

MTTF [years]	250

Weight [g]	204.5

Pack quantity	1 pcs.

Electrical connection

	AMP Crimp connector:
