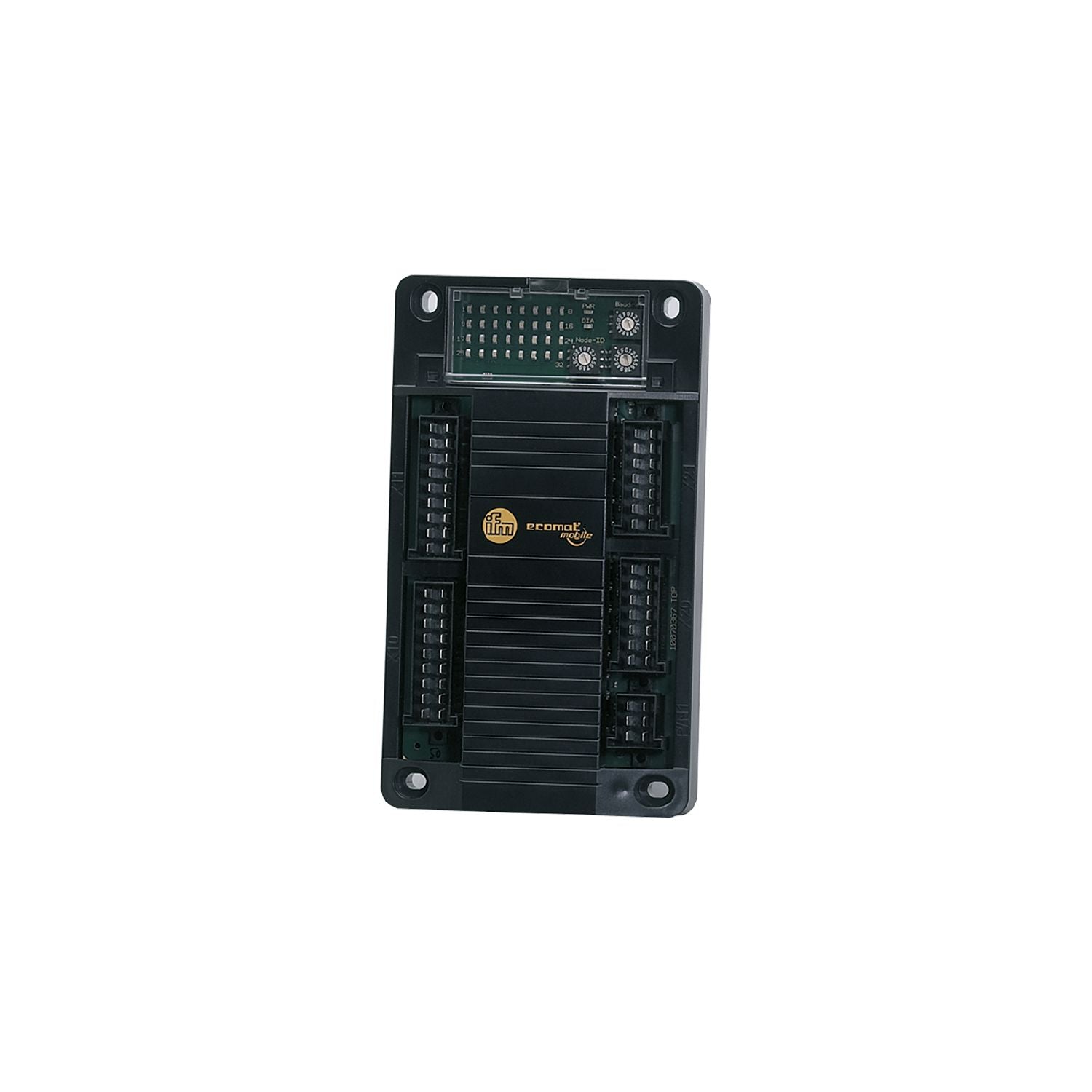

IFM CR2016 - I/O module for mobile machines R360/CabinetModule/32I/0

Decentralised connection of sensors and actuators.
Use as a controller for cockpit or operating panels of mobile machines.
With many multifunctional configurable inputs and outputs.
High-performance CAN interface for various communication tasks

Operating voltage [V]	10...32 DC

Inputs / outputs

Total number of inputs and outputs	32
Number of inputs and outputs	Number of digital inputs: 16; Number of analogue inputs: 4; Number of frequency inputs: 4; Number of digital outputs: 16

Inputs

Number of frequency inputs	4
Number of digital inputs	16
Number of analogue inputs	4
Analogue input (current) [mA]	0...20
Analogue input (voltage) [V]	0...32

Outputs

Number of digital outputs	16
Number of PWM outputs	4

Software / programming

Parameter setting options	input/output functions

Interfaces

Number of CAN interfaces	1

Tests / approvals

MTTF [years]	102

Weight [g]	499.3
Dimensions [mm]	181 x 105 x 30

Pack quantity	1 pcs.

Electrical connection

	AMP Crimp connector:
