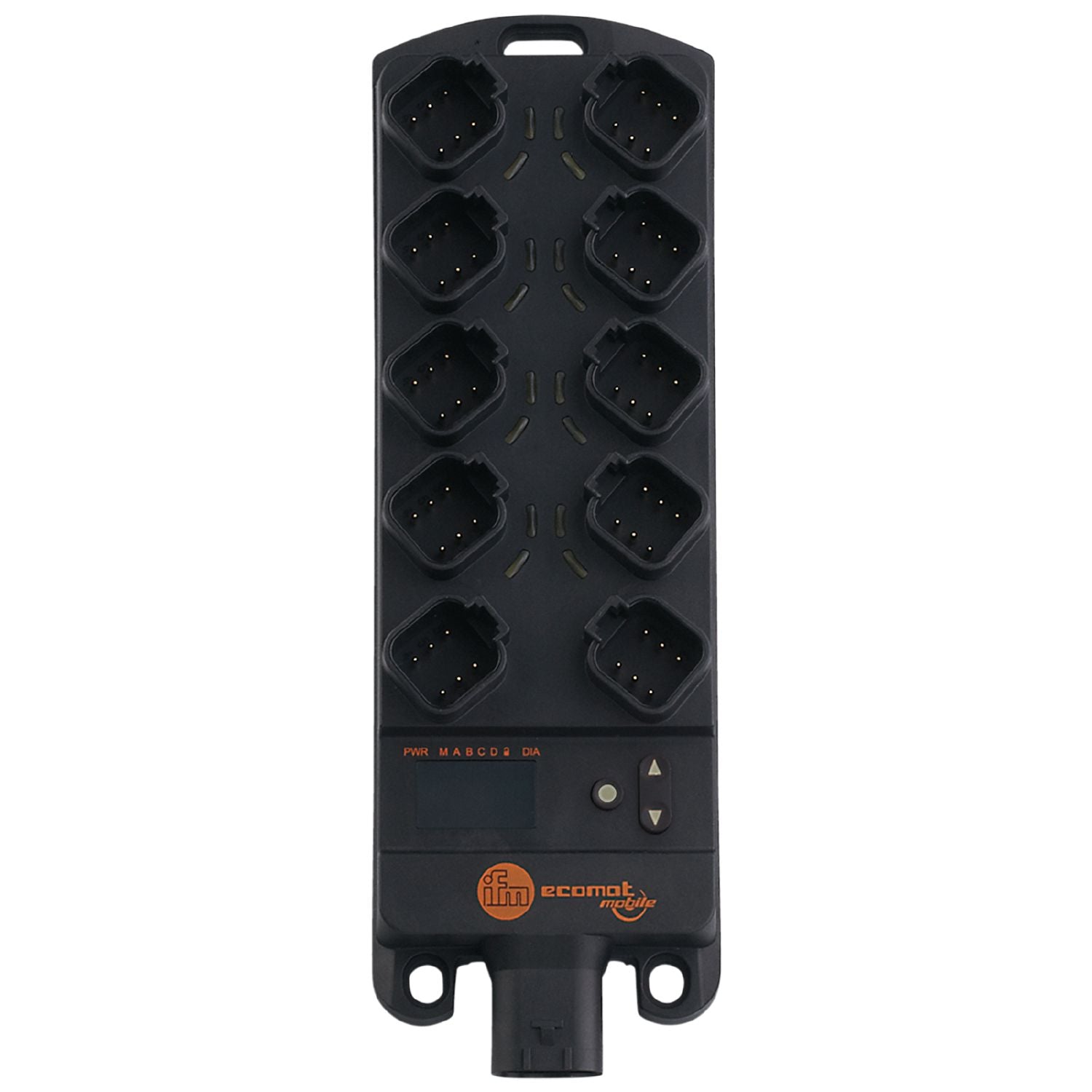

Decentralised connection of sensors and actuators. With many multifunctional configurable input channels. High-performance CAN interface for various communication tasks. Programmable to IEC 61131-3 with CODESYS. High protection rating for the requirements of mobile machines
Operating voltage [V]
8...32 DC
Reverse polarity protection
yes
Inputs / outputs
Total number of inputs and outputs
16
Number of inputs and outputs
Number of digital inputs: 16; Number of analogue inputs: 8; Number of frequency inputs: 4; Number of resistor inputs: 4
Inputs
Total number of inputs
16
Number of frequency inputs
4
Number of resistor inputs
4
Number of digital inputs
16
Number of analogue inputs
8
Analogue input (current) [mA]
0...20
Analogue input (voltage) [V]
0...32
Outputs
Short-circuit protection
yes
Software / programming
PLC function to IEC 61131-3
yes
Interfaces
Number of CAN interfaces
2
Operating conditions
Ambient temperature [°C]
-40...85
Storage temperature [°C]
-40...85
Protection
IP 65; IP 67
Tests / approvals
EMC
DIN EN 61000-6-2
DIN EN 61000-6-4
MTTF [years]
100
Weight [g]
692
Type of mounting
mounting via screws
Dimensions [mm]
234.2 x 76 x 40.5
Materials
PA glass fibre reinforced
Displays / operating elements
Display
10-segment LED display, red/green 4-digit
Pack quantity
1 pcs.
Electrical connection - CAN interface 2
CAN IN
Connector: 2 x DEUTSCH connector
Electrical connection - Inputs
Con. 1...8
Connector: 8 x DEUTSCH connector
Electrical connection - supply / CAN interface 1
X1
Connector: 1 x AMP connector
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — CR2050-00 — 20.09.2022 —
