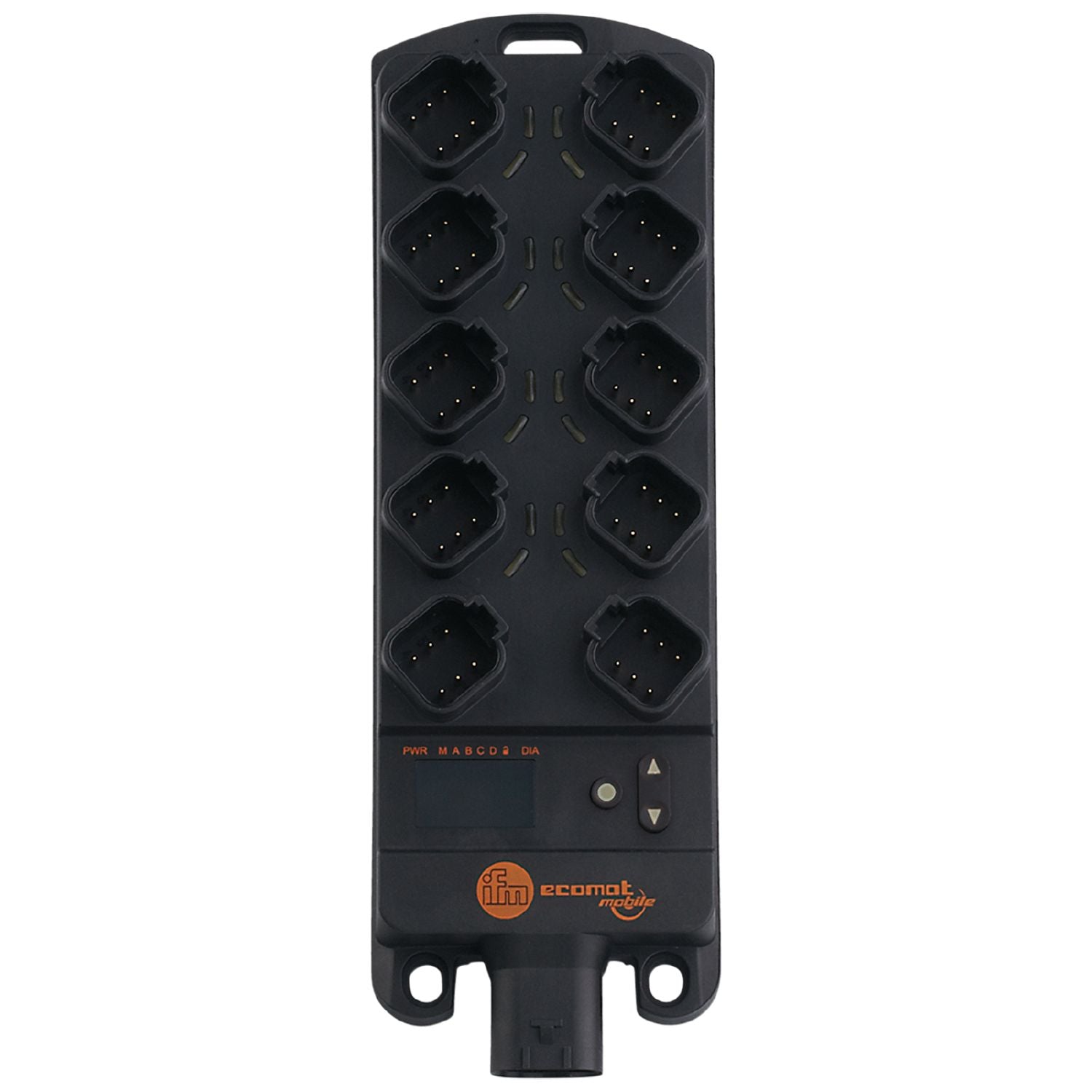

IFM CR2051 - I/O module for mobile machines ioControl/Out 16/DT6

Decentralised connection of sensors and actuators.
High-performance CAN interface for various communication tasks.
Programmable to IEC 61131-3 with CODESYS.
High protection rating for the requirements of mobile machines.
With many multifunctional configurable output channels

Operating voltage [V]	8...32 DC
Reverse polarity protection	yes

Inputs / outputs

Total number of inputs and outputs	16
Number of inputs and outputs	Number of digital outputs: 16

Outputs

Total number of outputs	16
Number of digital outputs	16
Short-circuit protection	yes
Number of PWM outputs	16
Number of PWM-I outputs	8

Software / programming

PLC function to IEC 61131-3	yes

Interfaces

Number of CAN interfaces	2

Operating conditions

Ambient temperature [°C]	-40...85
Storage temperature [°C]	-40...85
Protection	IP 65; IP 67

Tests / approvals

EMC	DIN EN 61000-6-2 DIN EN 61000-6-4
MTTF [years]	96

Weight [g]	711
Type of mounting	mounting via screws
Dimensions [mm]	234.2 x 76 x 40.5
Materials	PA glass fibre reinforced

Displays / operating elements

Display	10-segment LED display, red/green 4-digit

Pack quantity	1 pcs.
