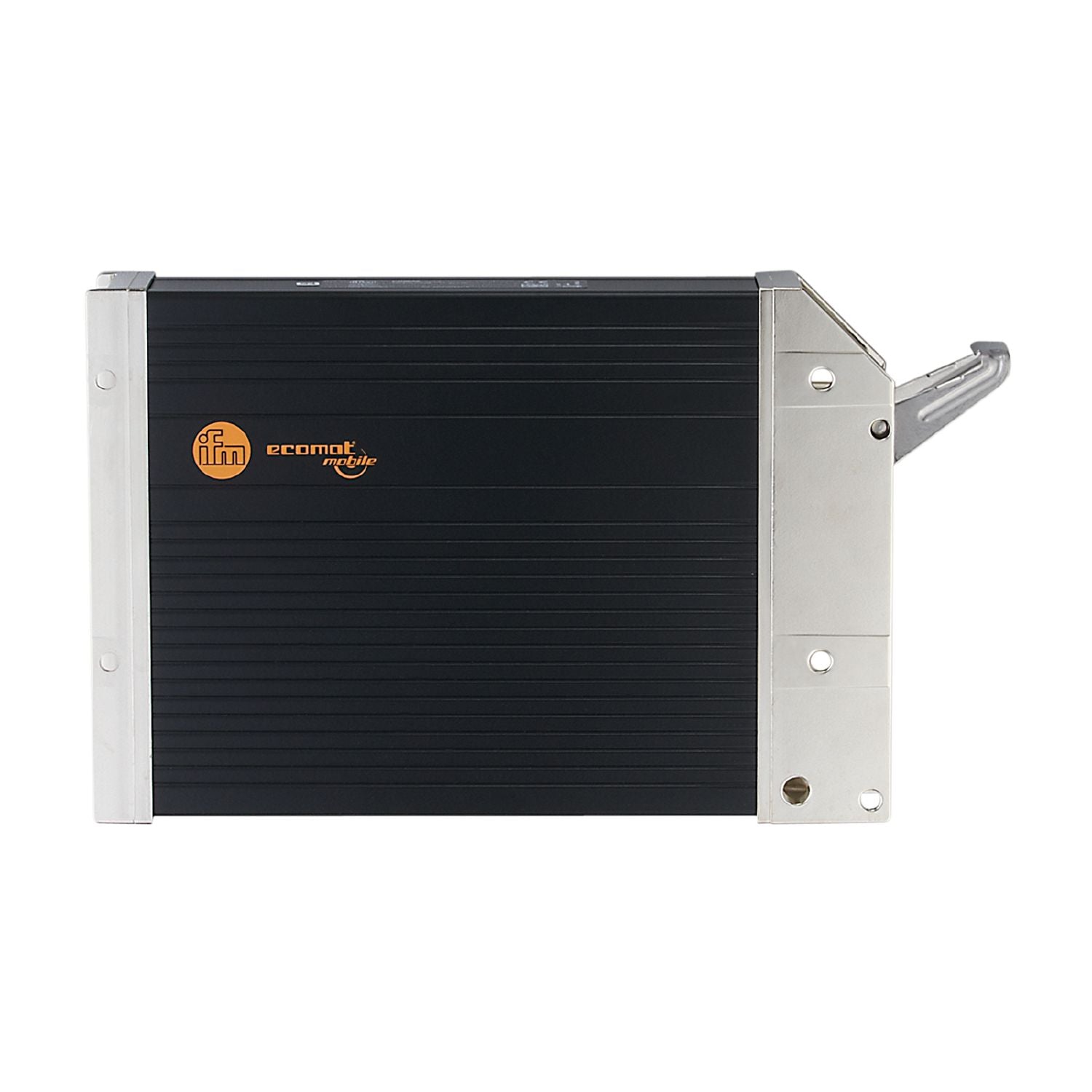

IFM CR2520 - I/O module for mobile machines R360/HIGH CURRENT MODULE/CAN

Power outputs with parameterisable H-bridges.
Decentralised connection of sensors and actuators.
With many multifunctional configurable input and output channels.
High-performance CAN interface for various communication tasks.
High protection rating for the requirements of mobile machines

Operating voltage [V]	10...32 DC

Inputs / outputs

Total number of inputs and outputs	30
Number of inputs and outputs	Number of digital inputs: 15; Number of analogue inputs: 4; Number of digital outputs: 15

Inputs

Number of digital inputs	15
Number of analogue inputs	4
Analogue input (current) [mA]	0...20
Analogue input (voltage) [V]	0...32

Outputs

Number of digital outputs	15
Number of PWM outputs	3
Number of outputs with H-bridge	4
Number of high-current outputs	4

Software / programming

Parameter setting options	input/output functions

Interfaces

Number of CAN interfaces	1

Tests / approvals

MTTF [years]	66

Weight [g]	1463
Dimensions [mm]	153 x 43 x 241

Notes	Please do not use for new projects.
Pack quantity	1 pcs.

Electrical connection

	AMP connector:
