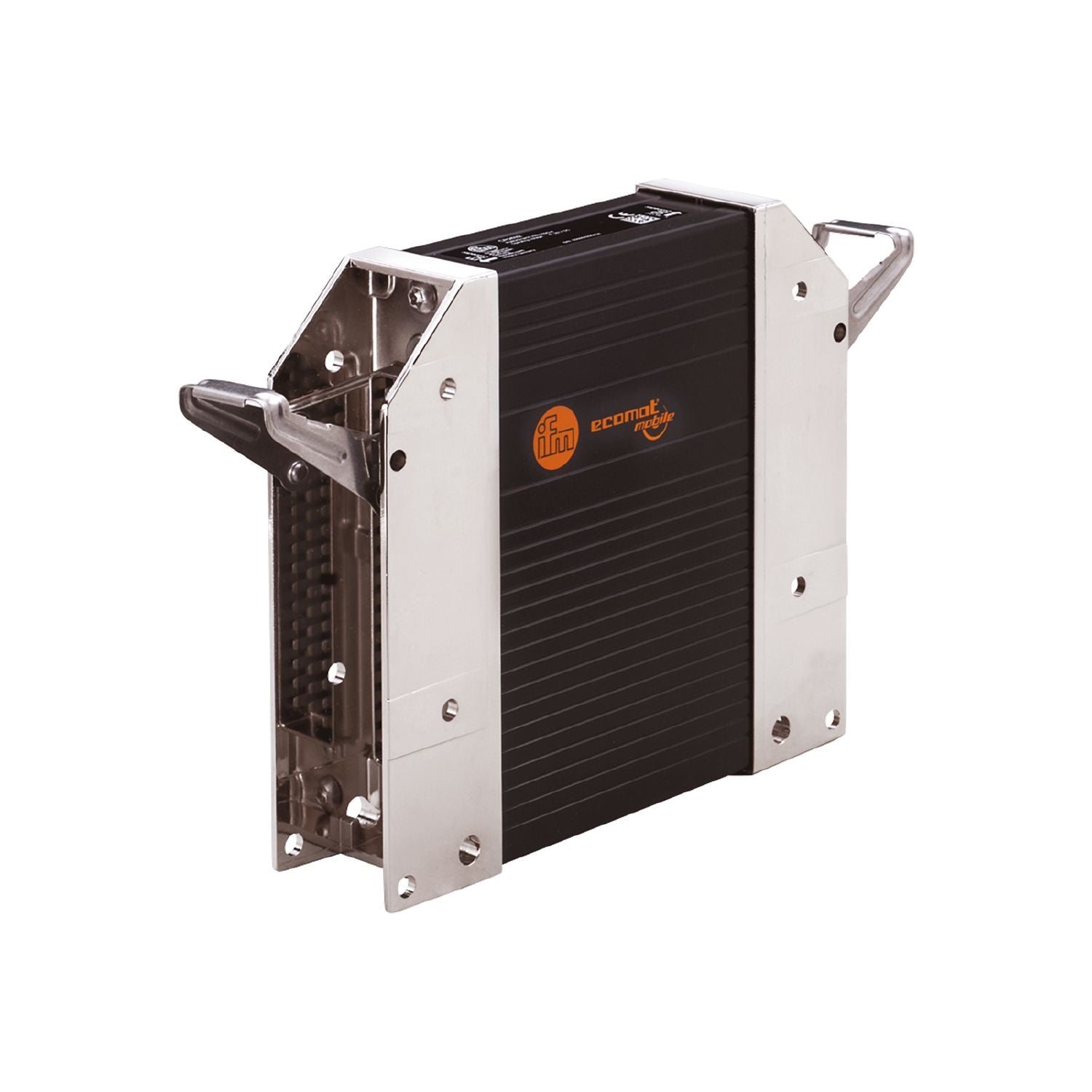

IFM CR2532 - Programmable controller for mobile machines R360/SmartXL/32In/32Out

For complex control functions in vehicles and mobile machines.
With many multifunctional configurable input and output channels.
High-performance CAN interfaces for various communication tasks.
High protection rating for the requirements of mobile machines.
Programmable to IEC 61131-3 with CODESYS

Operating voltage [V]	8...32 DC

Inputs / outputs

Total number of inputs and outputs	64
Number of inputs and outputs	Number of digital inputs: 32; Number of analogue inputs: 8; Number of frequency inputs: 8; Number of resistor inputs: 4; Number of digital outputs: 32; Number of analogue outputs: 4

Inputs

Number of frequency inputs	8
Number of resistor inputs	4
Number of digital inputs	32
Number of analogue inputs	8
Analogue input (current) [mA]	0...20
Analogue input (voltage) [V]	0...32

Outputs

Number of digital outputs	32
Number of analogue outputs	4
Analogue voltage output [V]	0.2...10
Number of PWM outputs	24
Number of PWM-I outputs	4

Software / programming

Parameter setting options	input/output functions
PLC function to IEC 61131-3	yes

Interfaces

Number of CAN interfaces	3

Tests / approvals

MTTF [years]	45

Weight [g]	1450
Dimensions [mm]	153 x 169.5 x 43

Pack quantity	1 pcs.
