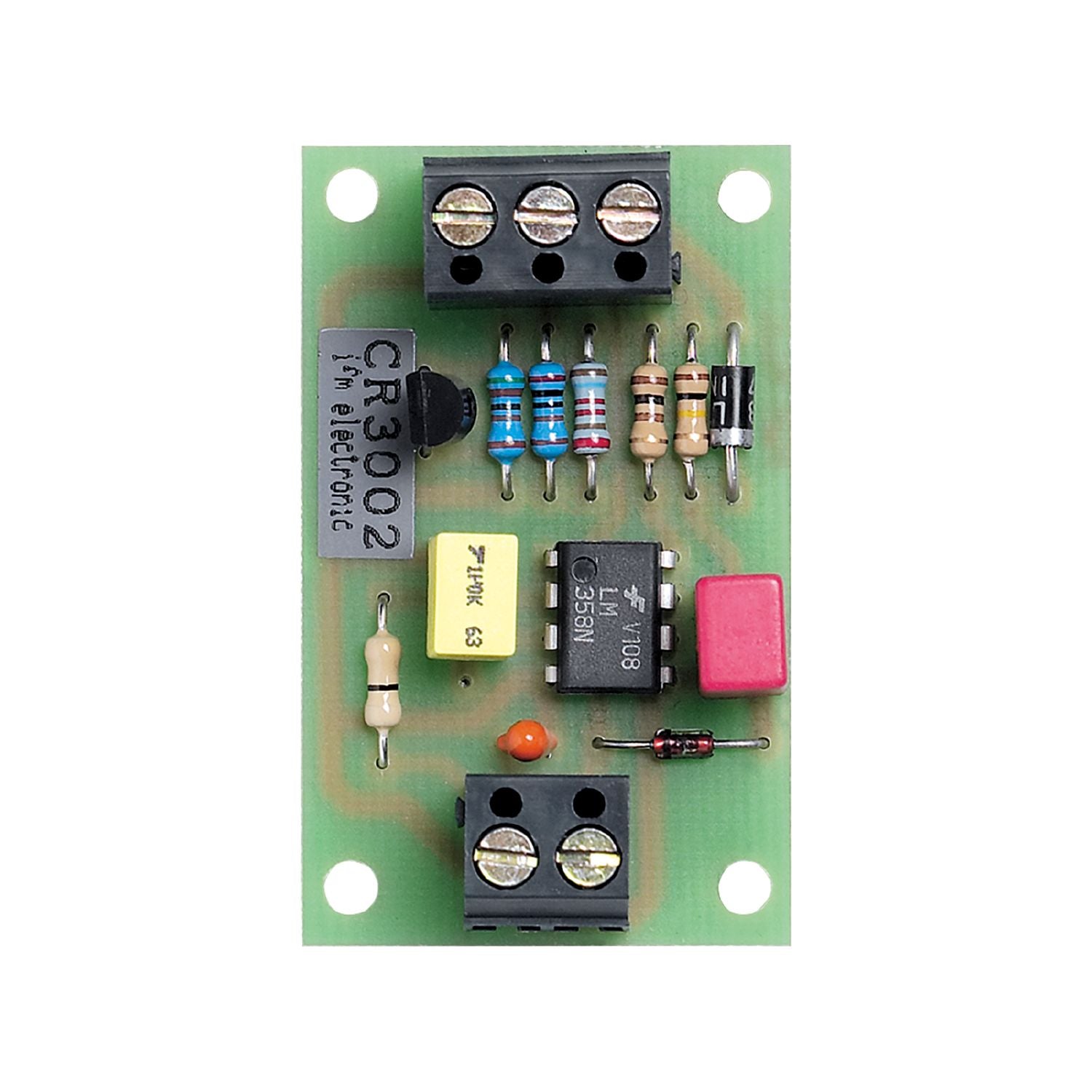

IFM CR3001 - PWM to analogue signal converter R360/PWM-ANALOG-MODULE/PCB

Conversion of a PWM signal into an analogue output signal.
Precise linearised voltage output.
Simple connection via screw terminals.
For mobile vehicles.
Wide operating temperature range

Design	PCB module

Operating voltage [V]	24...30 DC
Current consumption [mA]	< 20
Reverse polarity protection	yes

Inputs / outputs

Number of inputs and outputs	Number of analogue outputs: 1

Inputs

Number of PWM inputs	1
PWM frequency inputs [Hz]	122;(24 V DC PWM signal)

Outputs

Number of analogue outputs	1
Analogue voltage output [V]	0...5

Operating conditions

Ambient temperature [°C]	-40...85

Weight [g]	37
Dimensions [mm]	49 x 30 x 15

Pack quantity	1 pcs.

Electrical connection

input	screw terminals: 2.5 mm²
