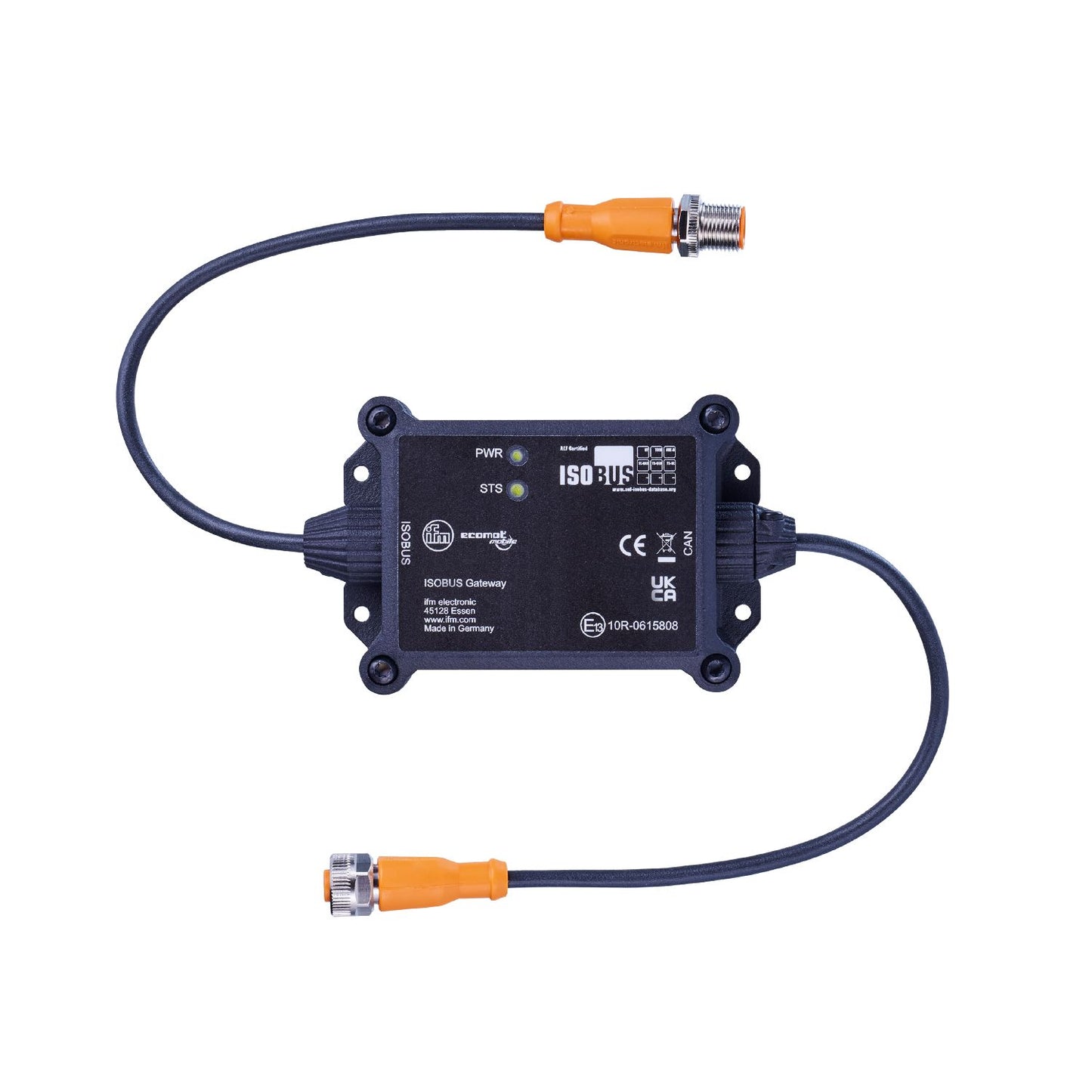

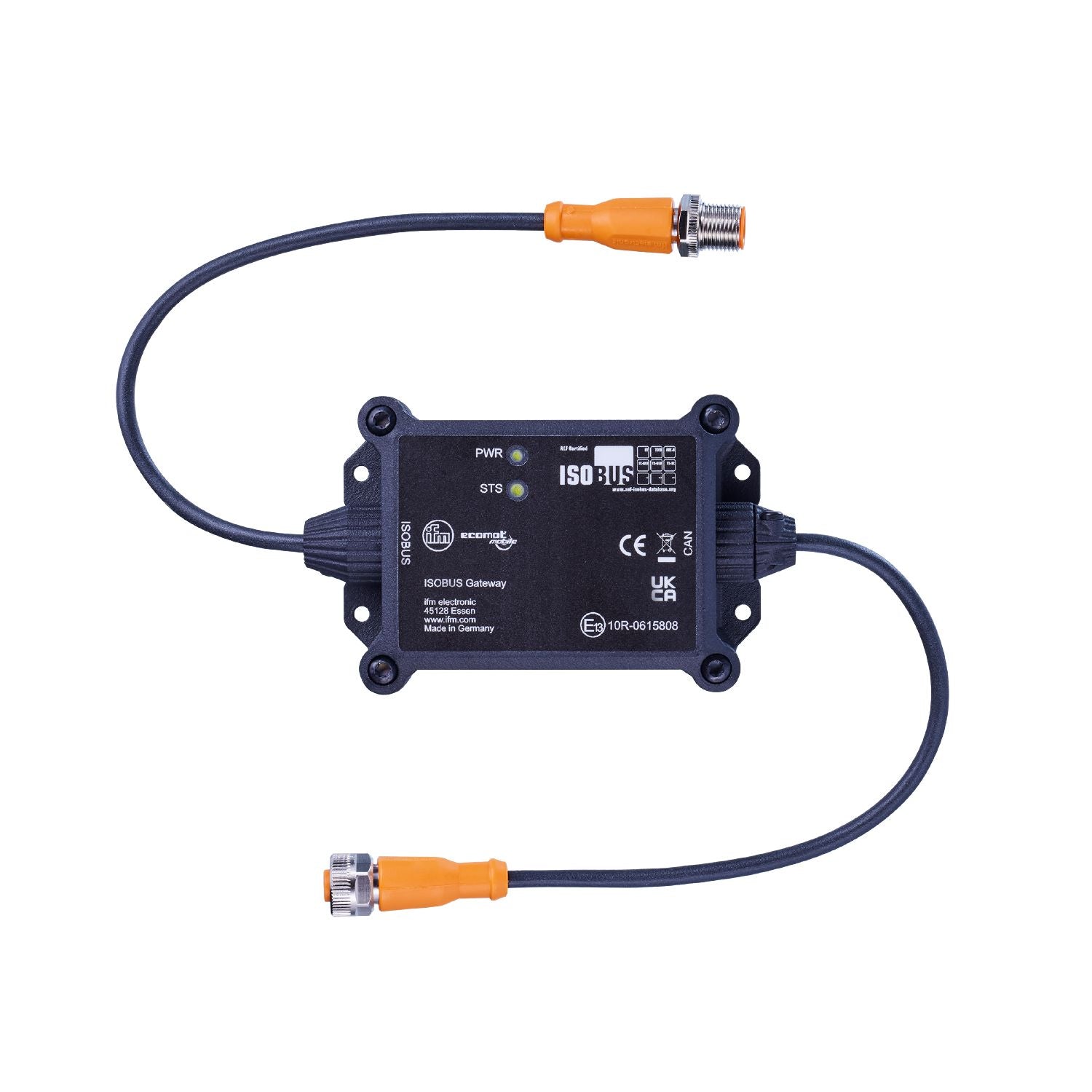

IFM CR3122 - ISOBUS gateway ISOBUS Gateway/VT+TC

Safe communication between attachment and tractor unit.
Dynamic target value control and documentation via the TaskController (TC).
Simple configuration via CODESYS using ISOBUS libraries.
Quick and easy implementation without additional licence costs.
Certified by the AEF (Agricultural Industry Electronics Foundation)

Operating voltage [V]	12...27 DC
Current consumption [mA]	11...48

Interfaces

Communication interface	CAN
Number of CAN interfaces	2

Transmission rate	250 (125...1000) kBaud
Interface	CAN Interface 2.0 A/B ISO 11898
Terminating resistor	yes;(internal ; 120 Ohm; cannot be deactivated)

Transmission rate	250 kBaud
Interface	CAN Interface ISO 11783
Terminating resistor	no

Operating conditions

Ambient temperature [°C]	-40...80
Protection	IP 67

Weight [g]	186.8
Type of mounting	panel / surface
Dimensions [mm]	72 x 104 x 29
Materials	housing: PA 12 black

Displays / operating elements

Display	status 1 x LED, green/red supply voltage 1 x LED, green/red

Hardware

Processor	ARM Cortex M4 32 bit
Program memory	1,5 MB Flash
Working memory	RAM: 320 kBFRAM: 16 kB

Pack quantity	1 pcs.

Electrical connection - CAN

	Connector: 1 x M12; coding: A

Electrical connection - ISOBUS

	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — CR3122-00 — 13.11.2023 —
