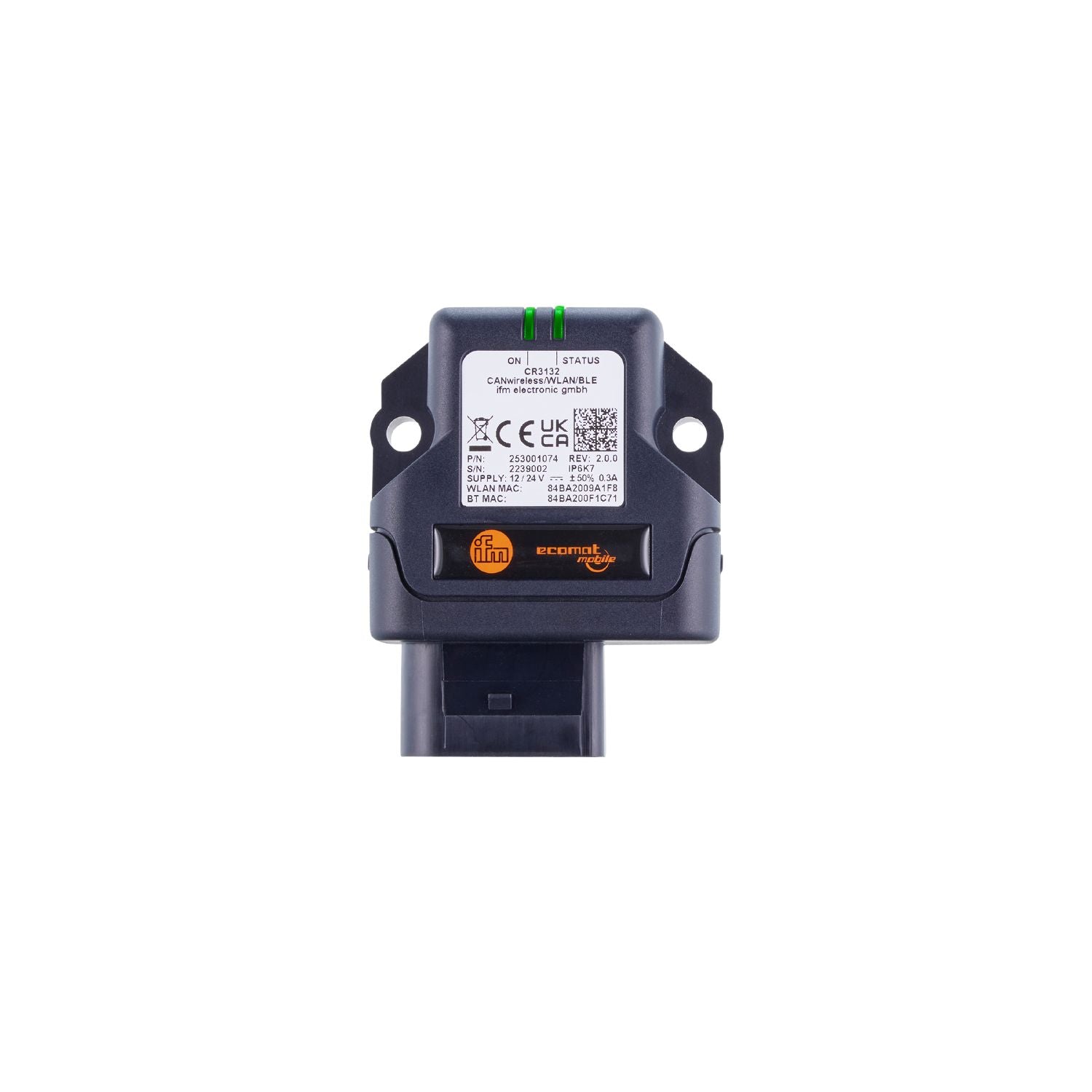

IFM CR3132 - CANwireless with integrated antenna CANwireless/WLAN/BLE

mobile IoT - CANwireless module for smooth machine communication.
Compact and robust housing for the requirements of harsh industrial environments.
Reliable Wifi/Bluetooth connection for mobile machines.
Set-up of an independent wifi network and connection to an existing wifi infrastructure.
Module with integrated antenna

Operating voltage [V]	6...36 DC
Nominal voltage DC [V]	12 / 24
Nominal voltage tolerance [%]	50
Current consumption [mA]	< 100;(normal operation; sleep mode: < 1 mA)
Reverse polarity protection	yes;(< 36 V DC)
Overvoltage protection	yes;(< 36 V DC)
Internal resistance (Ri) [Ω]	20000

Inputs / outputs

Number of inputs and outputs	Number of analogue inputs: 2; Number of digital outputs: 1

Inputs

Number of analogue inputs	2
Analogue input (voltage) [V]	0...15
Resolution of analogue input	12 Bit
Precision analogue input [%]	± 1,0

Outputs

Number of digital outputs	1
Voltage range DC [V]	6...36
Permanent current rating of switching output DC [mA]	500
Switching frequency DC [Hz]	< 10

Measuring/setting range

Sampling rate [Hz]	20

Interfaces

Communication interface	CAN; WLAN; Bluetooth
Number of CAN interfaces	2

Transmission standard	EDR 2.1; EDR 5.0
Transmission power [mW]	22.39;(Antenna integrated)

Interface	CAN Interface 2.0 A/B ISO 11898

Transmission standard	IEEE 802.11 a/b/g/n
Frequency band	2,4 GHz; 5 GHz
Transmission power [mW]	53.23;(2,4 GHz; 22,39 mW: 5 GHz; Antenna integrated)

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 6K7

Tests / approvals

EMC	EN 301489-1 EN 301489-17 EN IEC 61000-6-2 EN ISO 13766-1
Standard	EN 62368-1; EN 62311; EN 300328; EN 300440; EN 301893; EN IEC 63000

Weight [g]	136.9
Materials	housing: PA6/6.6 black

Displays / operating elements

Display	status 2 x LED, multi-colour

Hardware

Processor	ARM Cortex M7 based STM32 (400 MHz)
Working memory	ProgramFlash: 1 MBFRAM: 8 KBSRAM: 564 KB
Mass storage	16 MB

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — CR3132-00 — 24.11.2023 —
