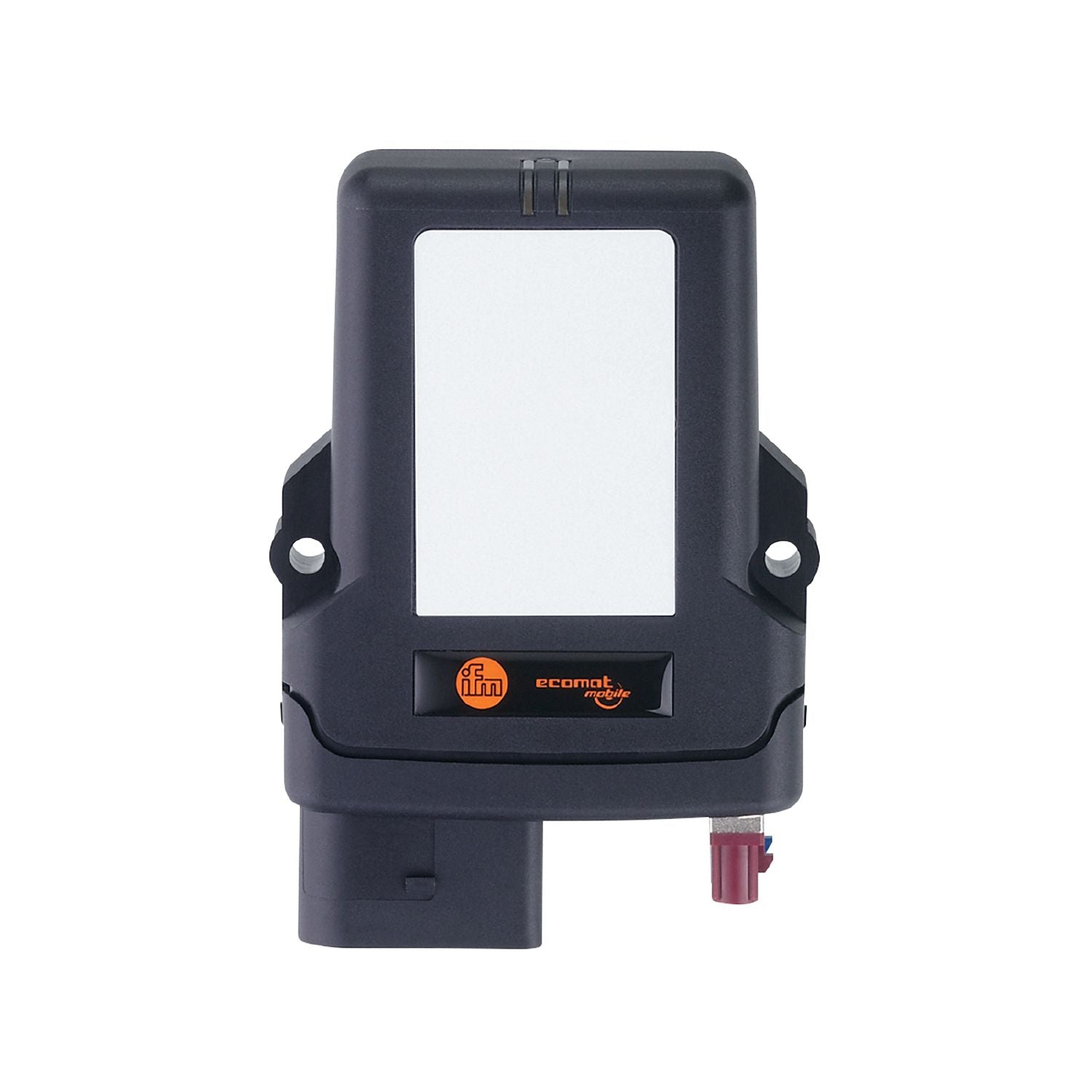

IFM CR3158 - CAN LTE/GNSS radio modem mIOT/Gateway 4G/EXT

mobile IoT gateway with 4G / LTE mobile network connection.
Global transmission of machine and position data to the cloud.
Safe TLS end-to-end communication.
Buffering of data even with unstable radio connections.
Connection to the machine control system via CAN interface

Radio approval for	EU/RED; USA; Canada
Note on radio approval	The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.

Operating voltage [V]	8...32 DC
Nominal voltage DC [V]	12 / 24
Nominal voltage tolerance [%]	50
Nominal voltage tolerance 2 [%]	50
Current consumption [mA]	< 250;(normal operation; sleep mode: < 500 µA)

Inputs / outputs

Number of inputs and outputs	Number of analogue inputs: 3; Number of digital outputs: 1

Inputs

Number of analogue inputs	3
Analogue input (voltage) [V]	0...15
Resolution of analogue input	12 Bit

Outputs

Number of digital outputs	1
Voltage range DC [V]	6...36
Permanent current rating of switching output DC [mA]	500

Measuring/setting range

Resolution	16 bit

Resolution	16 bit
Sampling rate [Hz]	10
Number of measurement axes	3
Measuring range acceleration [g]	± 16

Resolution	16 bit
Sampling rate [Hz]	10
Number of measurement axes	3
Measuring range vehicle yaw rate [°/s]	± 250

Interfaces

Communication interface	CAN; WLAN; Bluetooth; Mobile networks
Number of CAN interfaces	3
Number of USB interfaces	1

Transmission standard	EDR 2.1; EDR 5.0
Transmission power [mW]	22.39;(Antenna integrated)

Interface	CAN Interface 2.0 A/B ISO 11898
Note on interfaces	CAN2: Electrically separated

Transmission standard	GSM; GPRS; EDGE; UMTS; HSPA; 3G; 4G; LTE Cat-4
Frequency band	GSM / GPRS / EDGE / 2G:850 / 900 / 1800 / 1900; UMTS / HSPA / 3G: 850 (B5) / 900 (B8) / 1700 (B4) / 1900 (B2) / 2100 (B1); 4G / LTE Cat 4: 700 (B12, B17) / 750 (B13, B28) / 800 (B20) / 850 (B5) / 900 (B8) / 1700 (B4) 1800 (B3) / 1900 (B2) / 2100 (B1) / 2600 (B7)
Note on interfaces	SIM card onboard

Connector type	Mirco-AB
Usage type	firmware update

Transmission standard	IEEE 802.11 a/b/g/n
Frequency band	2,4 GHz; 5 GHz
Transmission power [mW]	53.23;(2,4 GHz; 22,39 mW: 5 GHz; Antenna integrated)

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 67

Tests / approvals

Standard	EN 61000-6-2; EN 61000-6-3; IEC 62368-1; UN/ECE-R10; EN ISO 13766-1; ISO 7637-2; IEC 60068-2-30; IEC 60068-2-6; IEC 60068-2-27; IEC 60068-2-31

Weight [g]	248
Materials	housing: PA black

Displays / operating elements

Display	status 2 x LED, multi-colour

Hardware

Processor	ARM Cortex M4 based STM32 (168 MHz)
Working memory	ProgramFlash: 1 MBFRAM: 32 KBSRAM: 1280 KB
Mass storage	128 MB

Data memories

Real-time clock	yes; UTC, battery buffered

Pack quantity	1 pcs.

Electrical connection - GPS / GNSS

	Connector:FAKRA C

Electrical connection - GSM / UMTS / LTE Cat 4

	Connector:FAKRA D

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — CR3158-00 — 15.03.2023 —
