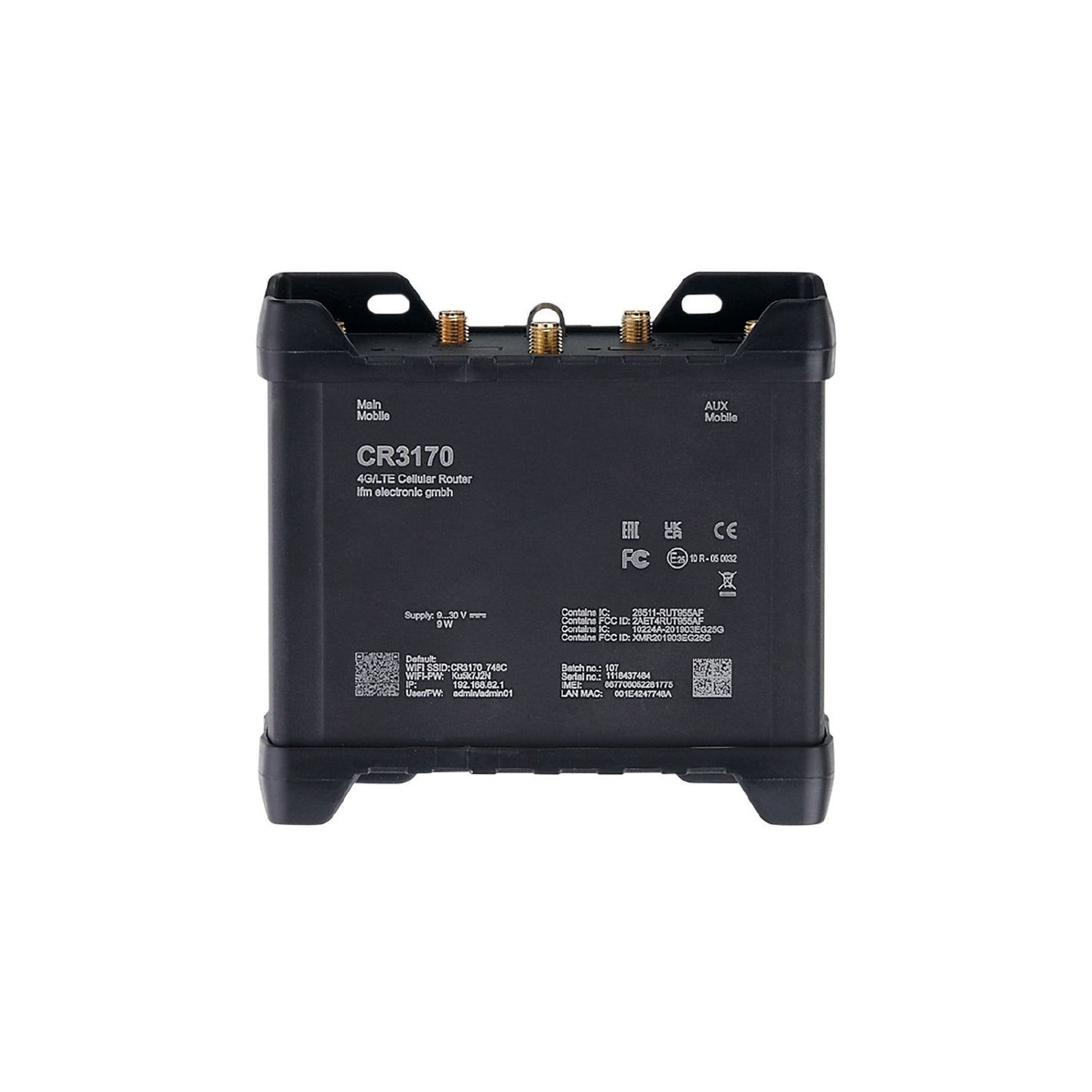

IFM CR3170 - LTE/GNSS/Ethernet router 4G/LTE Cellular Router

Radio approval for	EU/RED; USA; Canada
Note on radio approval	The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.

Operating voltage [V]	9...30 DC
Nominal voltage DC [V]	12 / 24
Power consumption [W]	2;(maximum: 7 W)

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 3; Number of digital outputs: 2; Number of relay outputs: 1

Inputs

Number of digital inputs	3
Analogue input (voltage) [V]	0...24

Outputs

Number of digital outputs	2
Voltage range DC [V]	< 30
Permanent current rating of switching output DC [mA]	300
Number of relay outputs	1

Interfaces

Communication interface	WLAN; Mobile networks; Ethernet; RS232; RS485
Number of USB interfaces	1

Transmission standard	GSM; GPRS; EDGE; UMTS; HSPA; 3G; 4G; LTE Cat-4
Frequency band	GSM / GPRS / EDGE / 2G:850 / 900 / 1800 / 1900; UMTS / HSPA / 3G: 800 (B6, B19) / 850 (B5) / 900 (B8) / 1700 (B4) / 1900 (B2) / 2100 (B1); 4G / LTE Cat 4: 700 (B12) / 750 (B13, B28) / 800 (B20) / 850 (B5, B18, B19, B26) / 900 (B8) / 1700 (B4) 1800 (B3) / 1900 (B2, B25, B39) / 2100 (B1) / 2300 (B40) / 2500 (B41) / 2600 (B7, B38)
Transmission power [mW]	GSM: 1995,26; WCDMA: 251,19; LTE: 199,53
Note on interfaces	2x SIM card slot SIM1: SIM-Karte von ifm fest verbaut

Connector type	USB A
Usage type	Periphery connection

Transmission standard	IEEE 802.11 b/g/n
Frequency band	2,4 GHz
Transmission power [mW]	53.23;(2,4 GHz: 100 mW)

Operating conditions

Ambient temperature [°C]	-40...75
Protection	IP 30

Weight [g]	423.2
Materials	housing: aluminium; Operating elements: plastics

Displays / operating elements

Display	status 1 x LED, 2-colour signal strength 5 x LED status 4 x LED, LAN supply voltage 1 x LED

Hardware

Processor	Atheros Wasp, MIPS 74Kc, 550 MHz
Working memory	128 MB DDR2

Accessories

Items supplied	SIM card unlocking tool: 1 connectors: 1, RS485 connectors: 1, inputs / outputs Connection cable: 1, power supply

Pack quantity	1 pcs.

Electrical connection - GNSS

	Connector: 1 x SMA

Electrical connection - LAN/WAN

	Connector: 4 x RJ45

Electrical connection - LTE

	Connector: 2 x SMA

Electrical connection - RS232

	Connector: 1 x SUB-D

Electrical connection - RS485

	Connector: 1 x

Electrical connection - WLAN

	Connector: 2 x SMA

Electrical connection - inputs / outputs

I/O	Connector: 1 x

Electrical connection - supply connection

	Connector: 1 x

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — CR3170-00 — 26.06.2023 —
