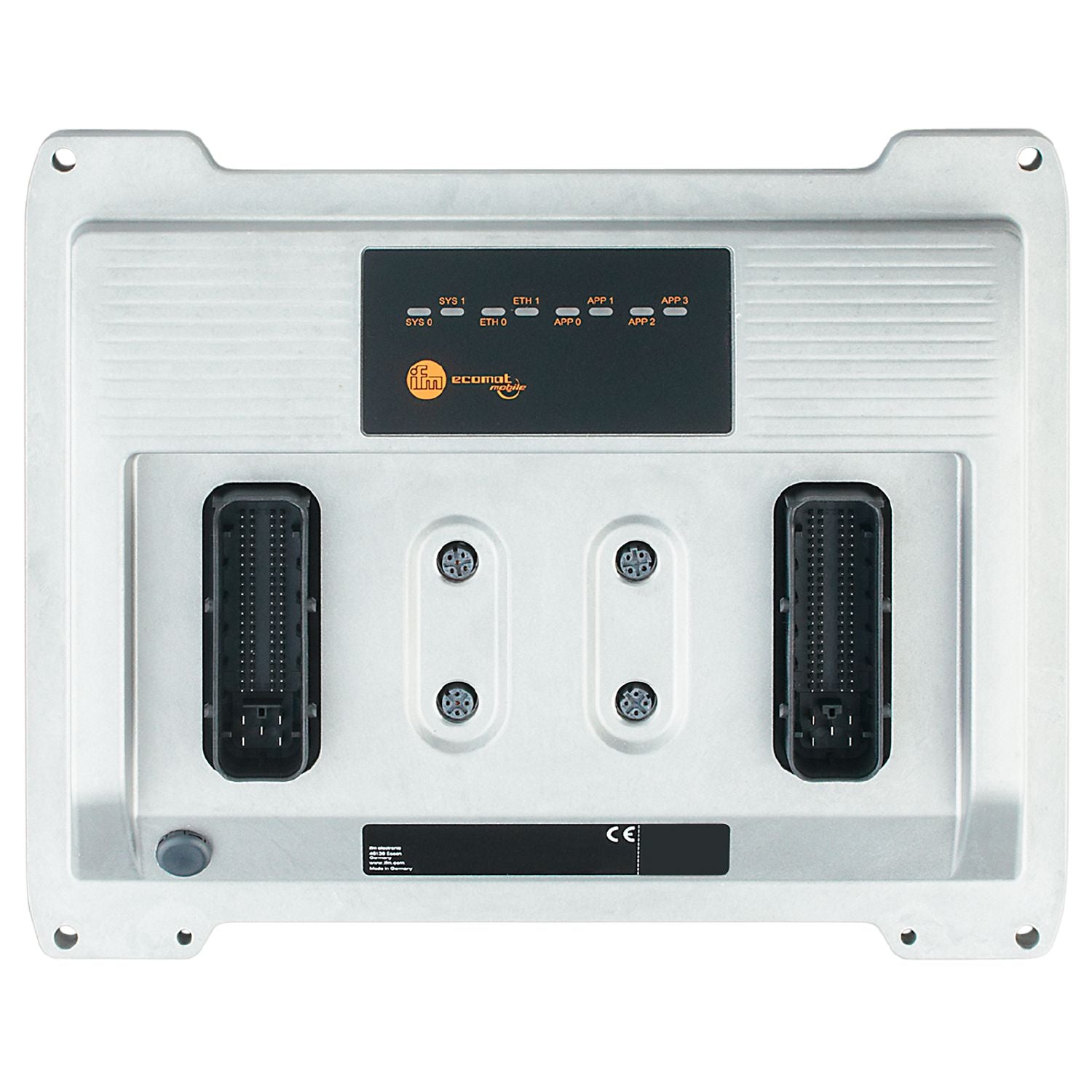

IFM CR720S - ecomatController ecomatController/98

powerful 32 bit triple core controllers with large application memory.
Certified as safety controller with CANopen Safety support.
Scalable inputs and outputs for standard and safety applications.
High-performance CAN and Ethernet interfaces for various communication tasks.
Freely programmable to IEC 61131-3 with CODESYS 3.5

Operating voltage [V]	8...32 DC
Current consumption [mA]	< 400
Reverse polarity protection	yes

Inputs / outputs

Total number of inputs and outputs	98
Number of inputs and outputs	Number of digital inputs: 60; Number of analogue inputs: 24; Number of frequency inputs: 16; Number of resistor inputs: 4; Number of digital outputs: 36; Number of analogue outputs: 2

Inputs

Number of frequency inputs	16
Number of resistor inputs	4
Number of digital inputs	60
Number of analogue inputs	24
Analogue input (current) [mA]	0...20
Analogue input (voltage) [V]	0...32

Outputs

Number of digital outputs	36
Number of analogue outputs	2
Analogue voltage output [V]	0...10
Short-circuit protection	yes
Number of PWM outputs	36
Number of PWM-I outputs	24
Number of outputs with H-bridge	4

Software / programming

Parameter setting options	input/output functions
PLC function to IEC 61131-3	yes

Interfaces

Number of CAN interfaces	4
Number of Ethernet interfaces	1
Number of R232 interfaces	1

Operating conditions

Storage temperature [°C]	-40...85
Protection	IP 65; IP 67;(in conjunction with a corresponding connector)

Safety classification

Complies with the requirements	ISO 13849-1: 2015 PL d IEC 62061 SIL 2

Weight [g]	1966.5
Type of mounting	free-standing
Dimensions [mm]	219 x 47 x 271

Accessories

Items supplied	Protective cap: M12 self-tapping screw: 1 x M4, for shield connection

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — CR720S — 14.03.2022 —
