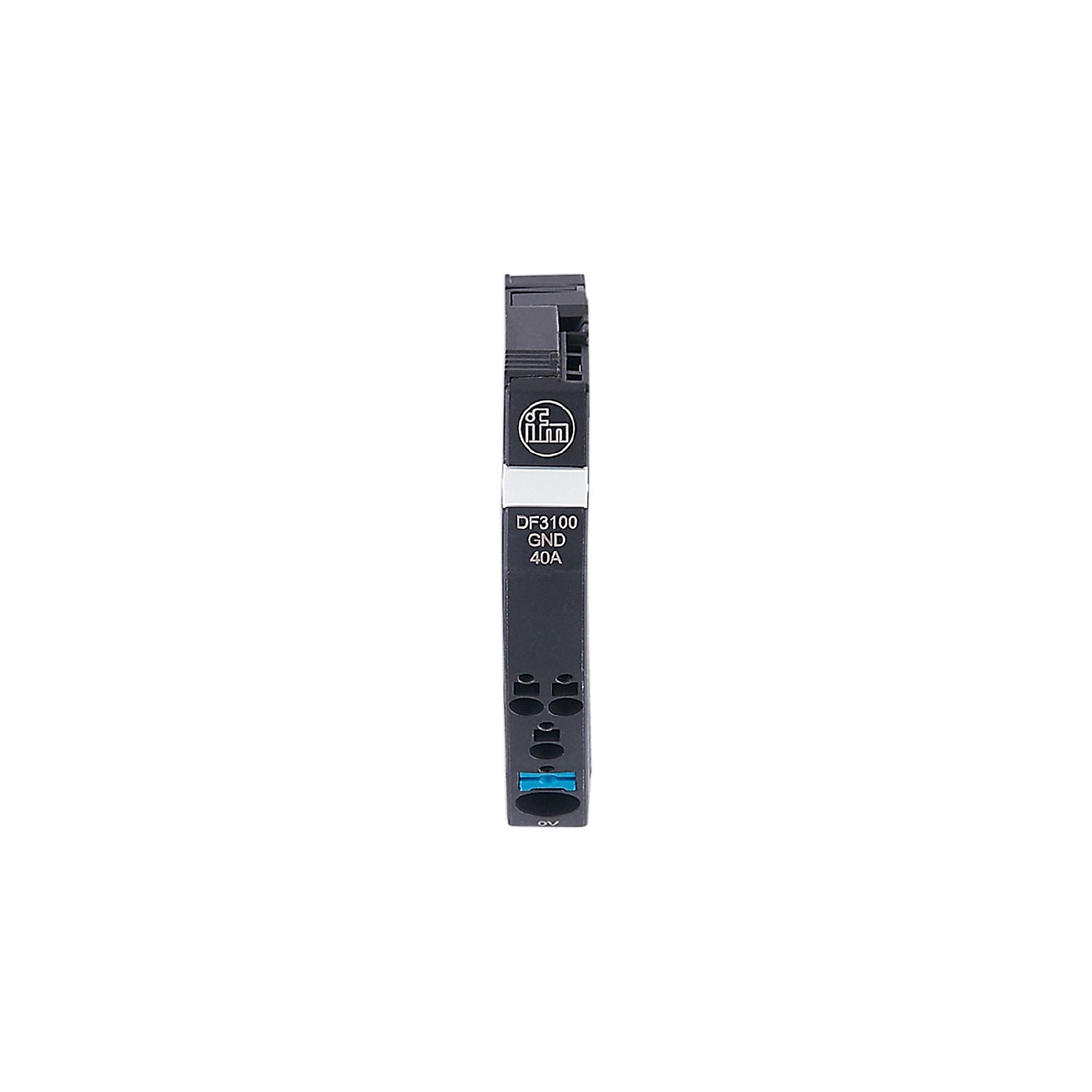

IFM DF3100 - feeding module for ground potential Supply Module GND/1x 10mm2

Design	feeding module GND (1 x 10 mm²)

Operating voltage [V]	18...30 DC
Nominal voltage DC [V]	24
Protection class	III
Max. load current [A]	40

Operating conditions

Ambient temperature [°C]	-25...60
Storage temperature [°C]	-40...70
Protection	IP 20;(on the front)

Tests / approvals

EMC	EN 61000-6-3 radiation of interference EN 61000-6-2 immunity

Weight [g]	48.6
Type of mounting	mounting on DIN rail
Installation instruction	string mounting possible
Dimensions [mm]	80 x 12.5 x 98.5

Electrical connection

Connection	push-in terminals:
