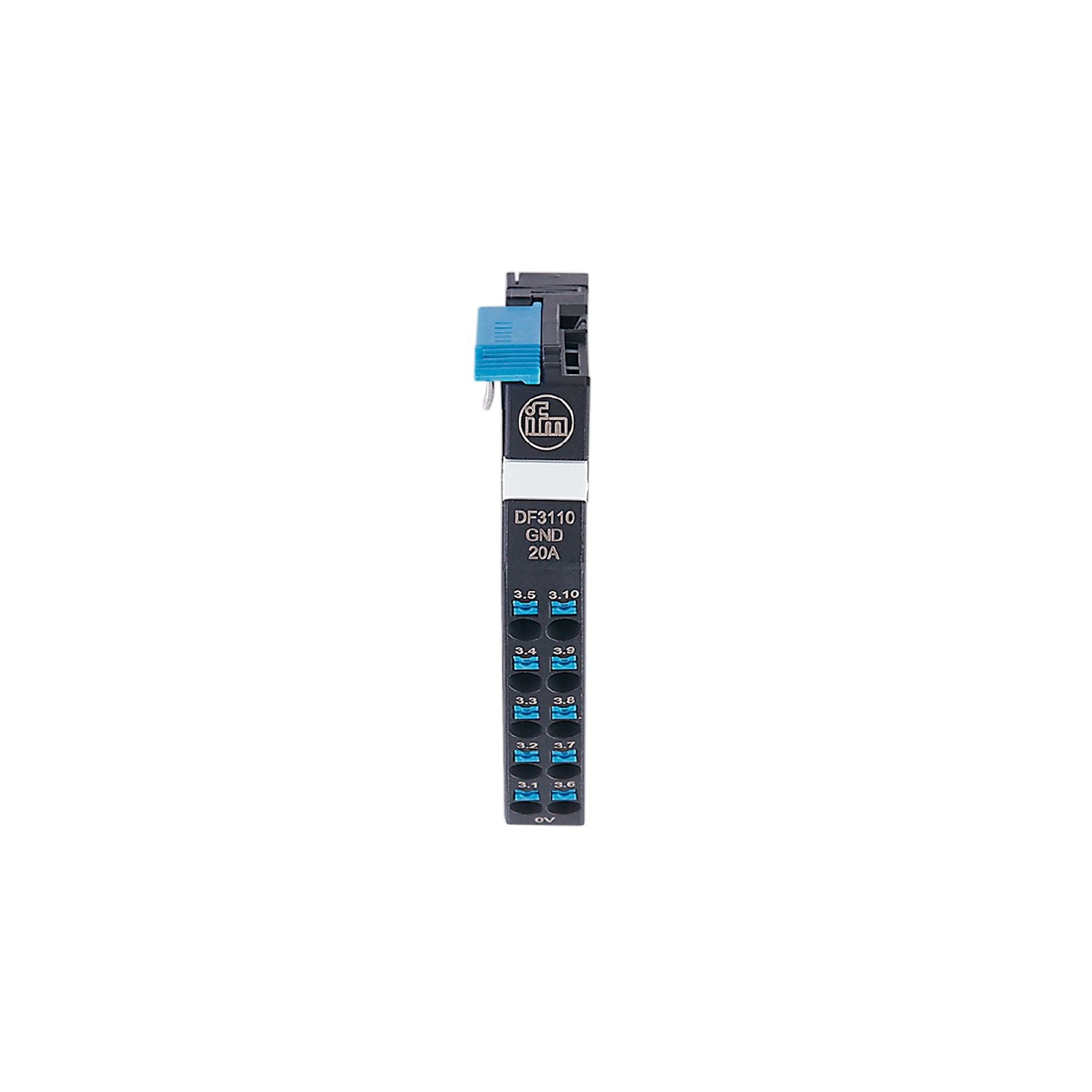

IFM DF3110 - distribution module for ground potential Pot.Module GND/10x 2.5mm2

Design	potential module GND (10 x 2,5 mm²)

Operating voltage [V]	18...30 DC
Nominal voltage DC [V]	24
Protection class	III
Max. load current [A]	20

Operating conditions

Ambient temperature [°C]	-25...60
Storage temperature [°C]	-40...70
Protection	IP 20

Tests / approvals

EMC	EN 61000-6-3 radiation of interference EN 61000-6-2 immunity

Weight [g]	62.5
Type of mounting	mounting on DIN rail
Installation instruction	string mounting possible
Dimensions [mm]	80 x 12.5 x 98.5

Electrical connection

Connection	push-in terminals:
