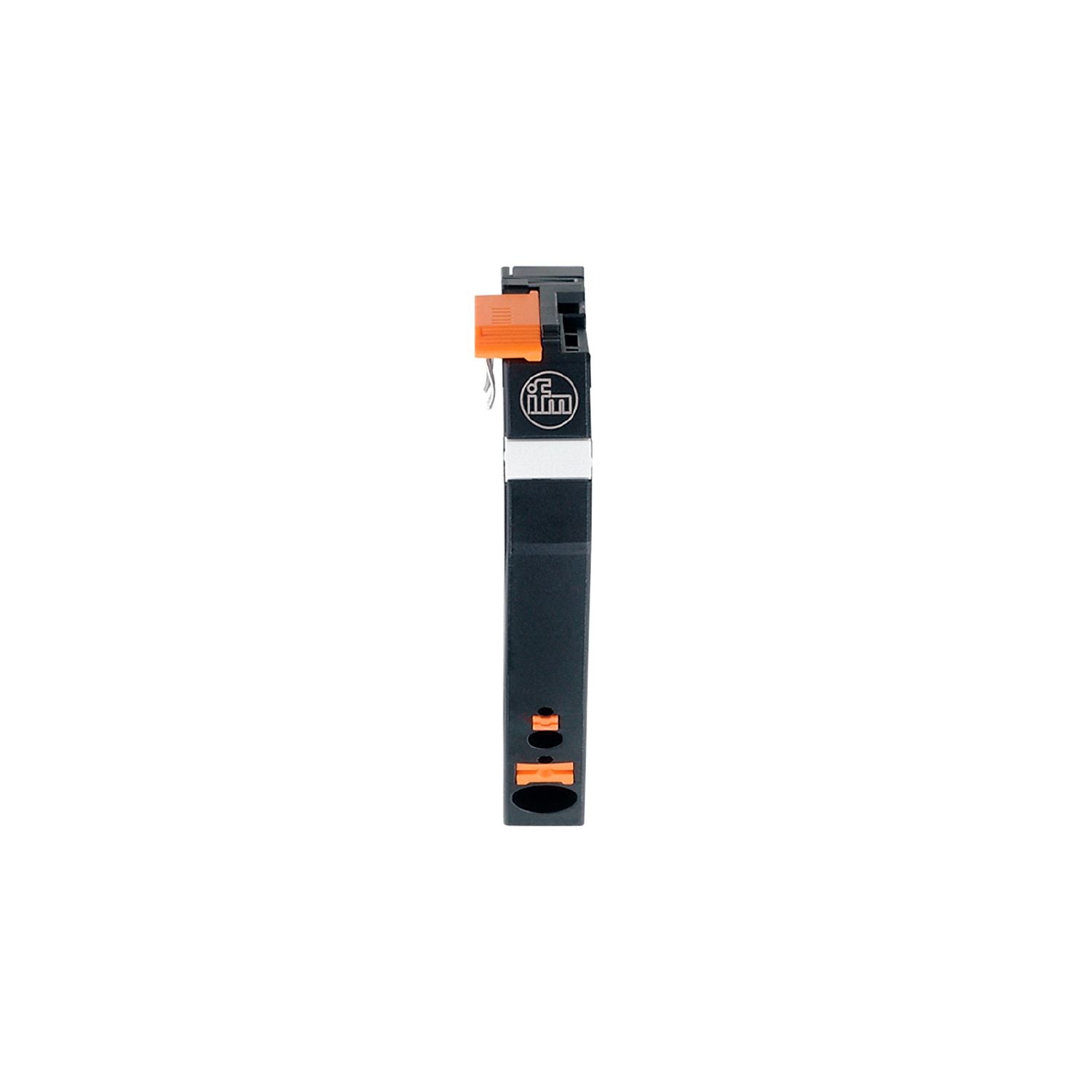

IFM DF3210 - Power supply module for electronic circuit breaker Supply Module 24VDC/reverse

Operating voltage [V]	to SELV/PELV
Nominal voltage DC [V]	24
Input voltage DC [V]	19.2...30
Protection class	III
Reverse polarity protection	yes
Mains buffering time (nominal voltage 24 V DC) [ms]	10
Input current (nominal voltage 24 V DC) [A]	40
Closed-circuit current [mA]	0.2

Operating conditions

Ambient temperature [°C]	-25...60
Storage temperature [°C]	-40...70
Protection	IP 20;(on the front)
Pollution degree	2

Tests / approvals

EMC	EN 61000-6-3 radiation of interference EN 61000-6-2 immunity

Weight [g]	61
Dimensions [mm]	80 x 12.5 x 98

Electrical connection

Connection	push-in terminals:

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DF3210-00 — 12.11.2021 —
