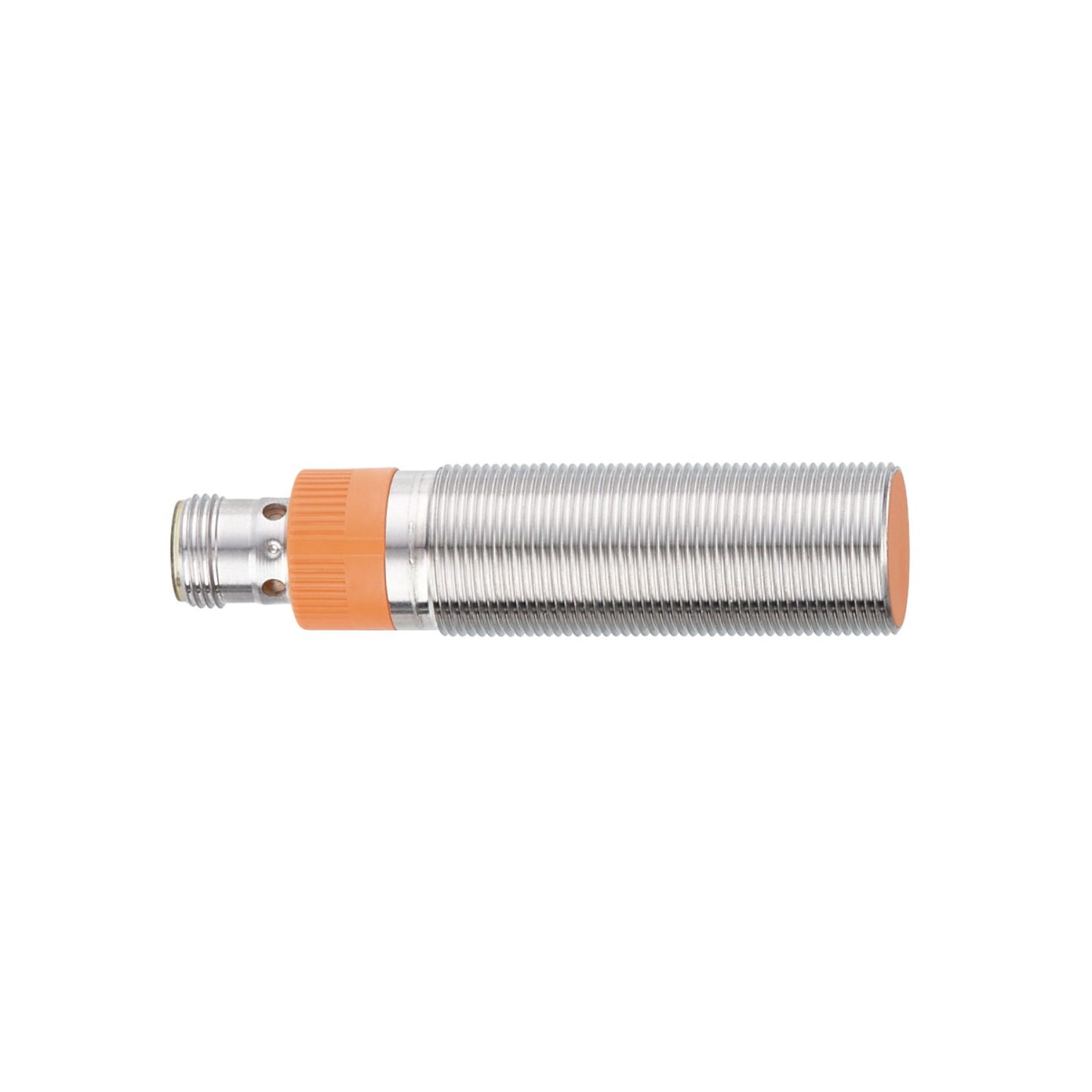

IFM DI6005 - Compact evaluation unit for speed monitoring DGA4007-WRKG/IO/US

Reliable non-contact monitoring of the rotational speed with regard to underspeed.
2 in 1: speed sensor and evaluation in one compact housing.
Easy setting of the switch point via teach button or IO-Link.
Reduced installation complexity

Electrical design	PNP/NPN;(parameterisable)
Output function	normally open / normally closed;(parameterisable)
Sensing range [mm]	7
Communication interface	IO-Link
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 75

Special feature	Gold-plated contacts
Application	evaluation of rotating and linear movements with regard to underspeed; blocking

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 15
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP/NPN;(parameterisable)
Output function	normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]	2.5
Factory setting	Electrical design: PNP Output function: normally open switch point: 100 Imp/min Output OUT2: Pulse output
Short-circuit protection	yes
Overload protection	yes

Output signal	switching signal
Permanent current rating of switching output DC [mA]	250

Output signal	pulse signal; switching signal;(parameterisable)
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	< 500
Pulse output	external evaluation of the damping pulses

Detection zone

Sensing range [mm]	7

Measuring/setting range

Measuring range [Imp/min]	1...32000
Setting range [Imp/min]	3...24000
Measuring principle	inductive

Accuracy / deviations

Correction factor	stainless steel: 0.7 / brass: 0.5 / aluminium: 0.5 / copper: 0.4
Hysteresis [% of Sr]	10
Hysteresis [% of Sp]	10...30
Repeatability IO-Link [%]	1;(of the final value of the measuring range)
Temperature drift	± 10 %;(of the final value of the measuring range)

Response times

Start-up delay [s]	0...15;(In steps of: 1 s; Default: 10 s)
Max. damping frequency [Imp/min]	60000

Start-up delay [s]	0...30;(In steps of: 100 ms; Default: 10 s)

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Smart Sensor: Measuring and Switching Sensor, high resolution, 1 channel, Identification and Diagnosis, Locator, ProductURI
SIO mode	yes
Required master port type	A
Min. process cycle time [ms]	3.7
IO-Link process data (cyclical)	function bit length process value 32 device status 4 binary switching information 2
IO-Link functions (acyclical)	switch-on cycle counter; operating hours counter; internal temperature; application specific tag
Supported DeviceIDs	Type of operation DeviceID default 1444
Note	For further information please see the IODD PDF file under "Downloads"

Operating conditions

Ambient temperature [°C]	-25...85
Protection	IP 65; IP 66; IP 67; IP 68; IP 69K

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN55011 class B
Vibration resistance	EN 60068-2-6 Fc 20 g (10...3000 Hz) 50 sweep cycles, 1 octave per minute, in 3 axes
Shock resistance	EN 60068-2-27 Ea 100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
Continuous shock resistance	EN 60068-2-27 42 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes
Fast temperature change	EN 60068-2-14 Na TA = -25°C; TB = 80°C; t1 = 30 min; t2 = <10 s 50 cycles
Salt spray test	EN 60068-2-52 Kb severity level 5 (4 test cycles)
MTTF [years]	471
UL approval	Ta -25...70 °C Enclosure type Type 1 power supply Limited Voltage/Current UL Approval no. A041 File number UL E174191

Weight [g]	52.78
Housing	threaded type
Mounting	flush mountable
Dimensions [mm]	M18 x 1 / L = 75
Thread designation	M18 x 1
Materials	housing: stainless steel (1.4404 / 316L); sensing face: PBT; LED window: PEI; lock nuts: stainless steel (1.4404 / 316L)
Tightening torque [Nm]	35

Displays / operating elements

Display	operation 4 x LED, green switching output 4x LED, yellow error message 4x LED, red

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated
