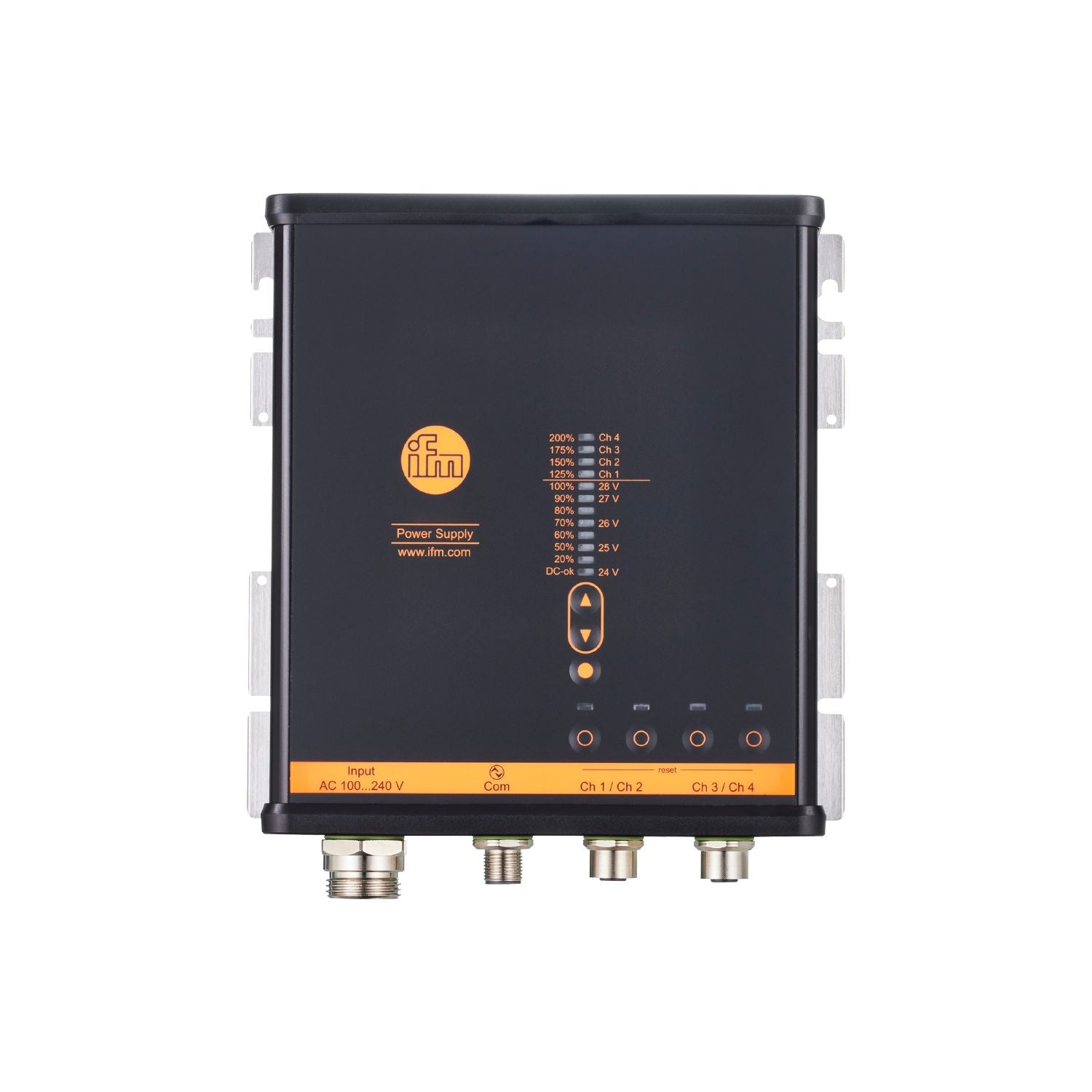

IFM DN4218 - Switched-mode power supply 24 V DC PSU-1AC/24VDC-12A/IOL/IP67

Protection of the wiring via configurable electronic circuit breakers.
Installation without control cabinet.
Additional diagnostics by measuring current, voltage and mains quality as well as counting operating hours.
Energy-efficient generation of extra-low voltage without power loss

Nominal voltage AC [V]	230
Nominal voltage DC [V]	300
Nominal frequency AC [Hz]	50...60
Input voltage DC [V]	110...300
Input voltage range AC [V]	100...240
Output voltage DC [V]	24...28
Protection class	I
Max. power-on delay time [ms]	1.3
Max. output current at min. output voltage [A]	12.5
Max. output current at max. output voltage [A]	10.7
Output power (permanent) [W]	300
Output power (peak) [W]	600
Power factor (nominal voltage 230 V AC / 50 Hz)	0.97
Number of output circuits	4
Efficiency (nominal voltage 120 V AC / 60 Hz) [%]	94.3
Efficiency (nominal voltage 230 V AC / 50 Hz) [%]	95.7
Mains buffering time (nominal voltage 120 V AC / 60 Hz) [ms]	44
Mains buffering time (nominal voltage 230 V AC / 50 Hz) [ms]	44
Input current (nominal voltage 120 V AC / 60 Hz) [A]	3.2
Input current (nominal voltage 230 V AC / 50 Hz) [A]	1.68

Interfaces

Communication interface	IO-Link
Transmission type	COM3 (230,4 kBaud)
IO-Link revision	1.1
SIO mode	yes
Min. process cycle time [ms]	2.2

Operating conditions

Ambient temperature [°C]	-25...55
Note on ambient temperature	the derating of the current load indicated in the operating instructions is to be taken into account at the following ambient temperature: 70 °C
Storage temperature [°C]	-40...85
Max. relative air humidity [%]	95;(relative humidity)
Max. height above sea level [m]	5000
Protection	IP 65; IP 67
Pollution degree	3

Tests / approvals

EMC	EN 61000-4-2 CD 8 kV / failure criterion A EN 61000-4-2 AD 15 kV / failure criterion A EN 61000-4-3 80 Mhz...2.7 GHz / 20 V/m failure criterion A EN 61000-4-3 2.7 GHz...6 GHz kV / 10 V/m failure criterion A EN 61000-4-8 50/ 60 Hz / 30 A/m failure criterion A EN 61000-4-4 Burst 4 kV / failure criterion A EN 61000-4-5 Surge 2 kV Lx / Ly / failure criterion A EN 61000-4-5 Surge 4 kV L / PE / failure criterion A EN 61000-4-5 Surge 1 kV + / - / failure criterion A EN 61000-4-5 Surge 1 kV + - / PE / failure criterion A EN 61000-4-5 Surge 1 kV + - / PE / failure criterion A EN 61000-4-5 Surge 1 kV DC-OK / PE / failure criterion A EN 61000-4-6 0.15...80 MHz / 20 V failure criterion A EN 61000-4-11 0 V up to 1 cycle / failure criterion A EN 61000-4-11 40 %of V / 200 ms failure criterion A EN 61000-4-11 70 % of V / 500 ms failure criterion A EN 61000-4-11 0 V / 5000 ms failure criterion C VDE 0160 1550 V / 1.3 ms failure criterion A EN 55032 Class B EN 55032 Class B EN 55011 Class B EN 61000-3-2 EN 61000-3-3
Continuous shock resistance	IEC 60068-2-27 30 g 6 ms / 20 g 11 ms
Vibration resistance	IEC 600068-2-6 2...17.8 Hz ± 1.6mm / 17.8...500 Hz 2 g

Weight [g]	1524.5
Dimensions [mm]	182 x 183 x 59
Materials	housing: aluminium alloy; housing cap: PC; screws: steel bronzed

Pack quantity	1 pcs.

Electrical connection - IO-Link

	Connector: 1 x M12; coding: A; Locking: brass

Electrical connection - Output voltage

	Connector: 2 x M12; coding: A; Locking: brass

Electrical connection - power supply

	Connector: 1 x 7/8"; Locking: brass

Diagrams and graphs

block diagram

output characteristics

characteristic curve for degree of efficiency / power loss

characteristic line for derating

characteristic line for mains buffering time
