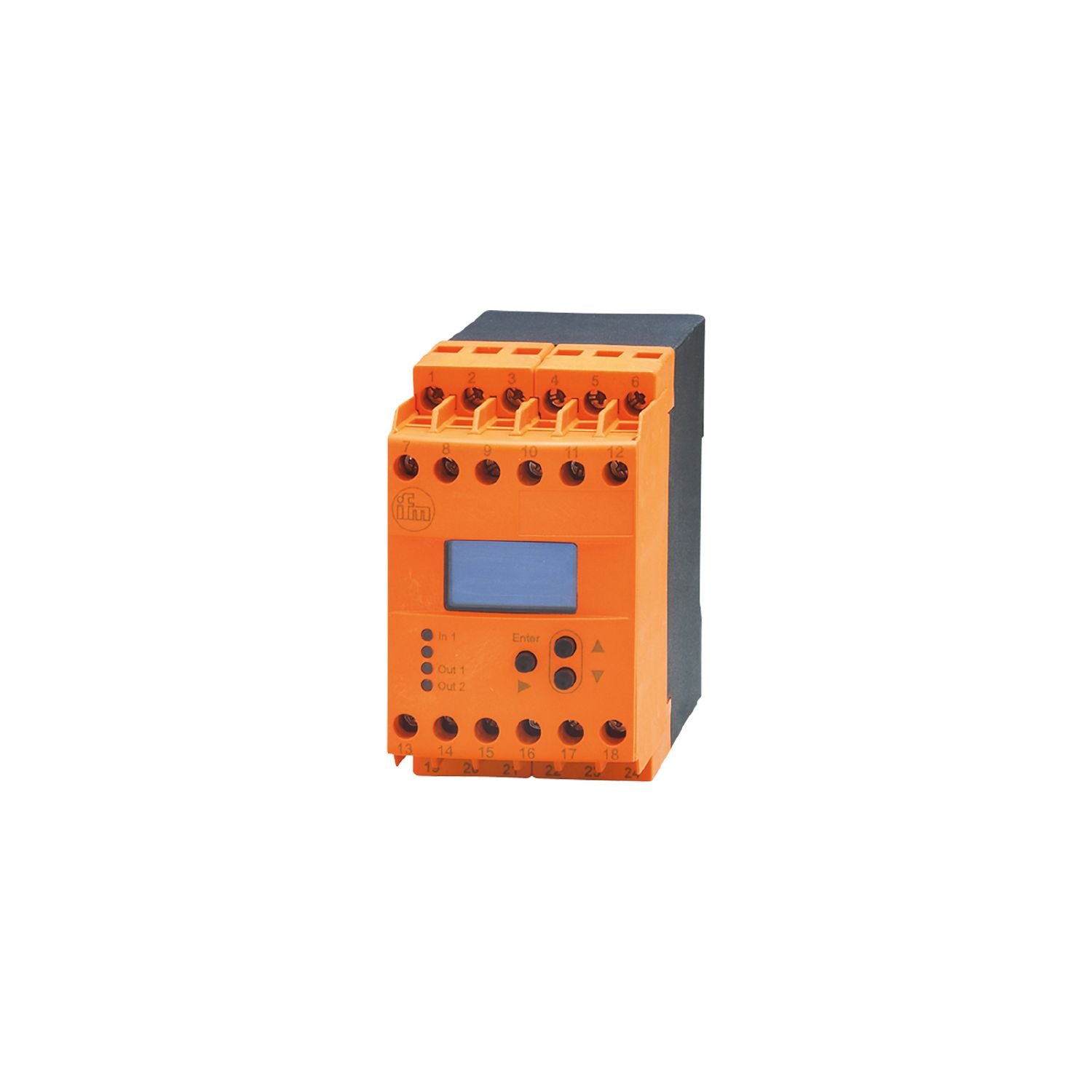

Reliable detection of slip, synchronism and pulse difference. Two switch points for slip/synchronous monitoring. Various configurable monitoring functions. Clearly readable, luminous OLED display for programming and actual value indication
Dimensions [mm]
78 x 45 x 124.7
Application
pulse evaluation system with microprocessor for slip and synchronous monitoring; evaluation of pulse differences
Nominal voltage AC [V]
110...240
Nominal voltage DC [V]
27
Nominal voltage tolerance [%]
< 10
Nominal voltage tolerance 2 [%]
20...10
Nominal frequency AC [Hz]
50...60
Power consumption [W]
3
Auxiliary energy for sensors DC [V]
19.6...27.7;(SELV, ≤ 150 mA)
Inputs / outputs
Number of inputs and outputs
Number of relay outputs: 2
Outputs
Number of relay outputs
2
Contact rating
6 A (250 V AC); B300, R300
Measuring/setting range
Measuring range [Hz]
0.1...400
Operating conditions
Ambient temperature [°C]
-40...60
Storage temperature [°C]
-40...85
Max. relative air humidity [%]
80;(40 °C: 50 %)
Protection
IP 50
Protection rating terminals
IP 20
Tests / approvals
EMC
EN 61010
2011
EMV 89/336/EWG
EN 61000-6-2
2005
EN 61000-6-4
2007
Weight [g]
377.5
Dimensions [mm]
78 x 45 x 124.7
Materials
plastics
Displays / operating elements
Display
OLED display, 128 x 64 pixels luminous
switching status
LED, green
Remarks
The unit complies with overvoltage category II; pollution degree 2
Electrical connection
dual-chamber terminals: 2 x ...2.5 mm²; AWG 14
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DS2505-00 — 13.04.2023 —
