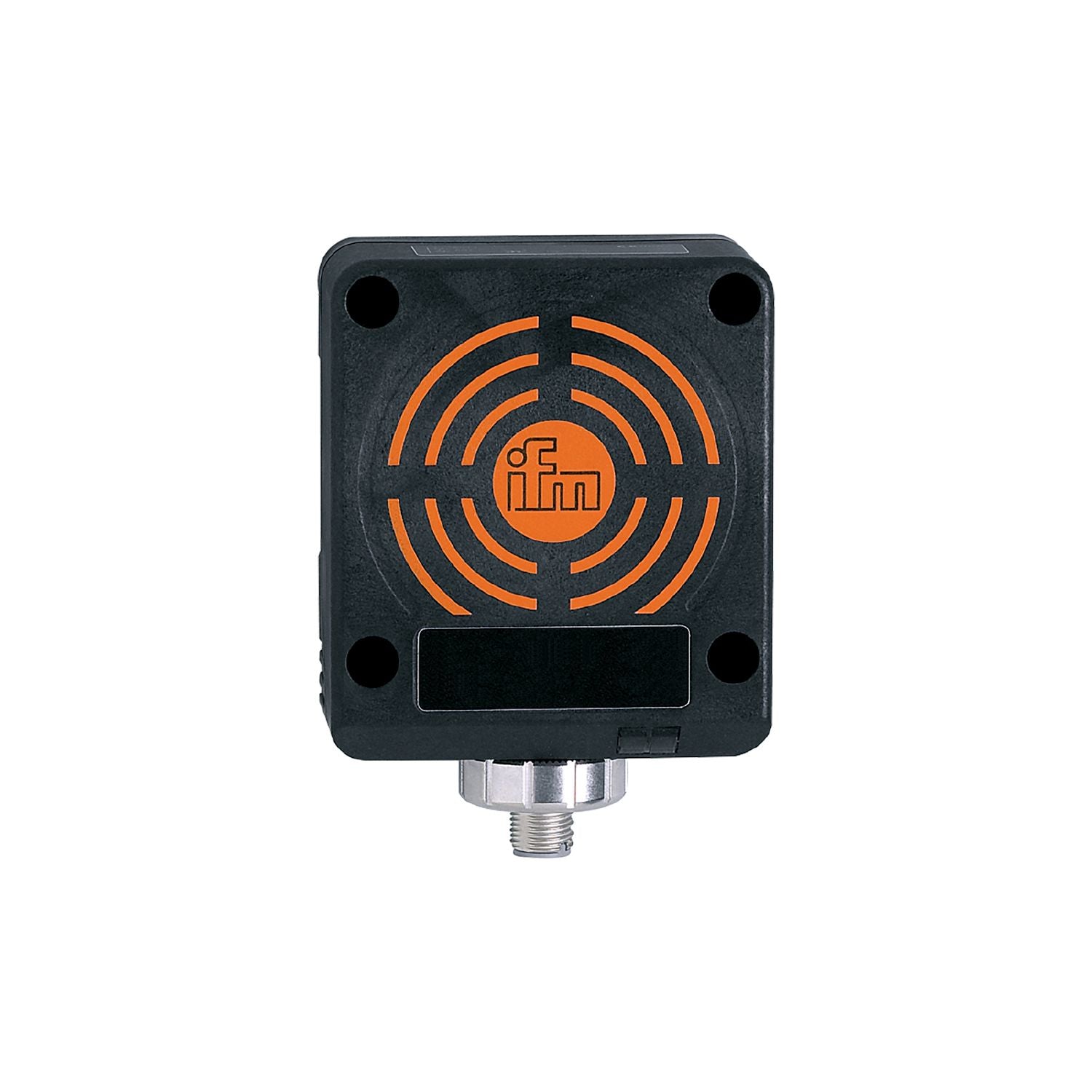

Reliable identification of workpiece carriers in routing conveyors. Non-contact reading of RFID transponders (ID tags). Compact and at a low cost: Antenna and evaluation in one housing. With AS-i interface. For use in production lines and in material flow control
Application
detection of objects on transport equipment
Radio approval for
USA; Canada; EU/RED; Australia; Singapore; China
Note on radio approval
The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.
Operating voltage [V]
26.5...31.6 DC;("supply class 2" to cULus)
Current consumption [mA]
< 65
Protection class
III
Operating frequency [MHz]
0,125
Outputs
Electrical design
AS-i
Detection zone
Travel speed [m/s]
< 0.5
Distance read/read head front
400
Distance read/read head side
280
Note on distance read/read head
referred to
:
Read/write head
DTA300
Read head
DTA301
Distance write/read head front [mm]
500
Distance write/read head side [mm]
500
Note on distance write/read head
referred to
:
Read/write head
DTA300
Read head
DTA301
Distance to the ID tag [mm]
read
:
≤ 80
static
Interfaces
Communication interface
AS-i
Operating conditions
Ambient temperature [°C]
-20...60
Storage temperature [°C]
-25...80
Protection
IP 67
Tests / approvals
EMC
EN 50295
1999-03
Shock resistance
EN 60068-2-29
40 g 6 ms
EN 60068-2-27
50 g 11 ms
Vibration resistance
EN 60068-2-6
20 g 10...55 Hz
MTTF [years]
422
AS-i classification
AS-i I/O configuration [hex]
7
AS-i ID code [hex]
3
AS-i certificate
83501
Weight [g]
413.5
Housing
rectangular
Dimensions [mm]
92 x 80 x 40
Materials
housing: PPE; metal parts: diecast zinc / brass nickel-plated
Displays / operating elements
Display
Operating voltage
1 x LED, green
tag communication
1 x LED, yellow
error AS-i data communication
1 x LED, red
Remarks
For the distances to other ID tags see the respective data sheet (E803xx)
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12, rotatable; coding: A
