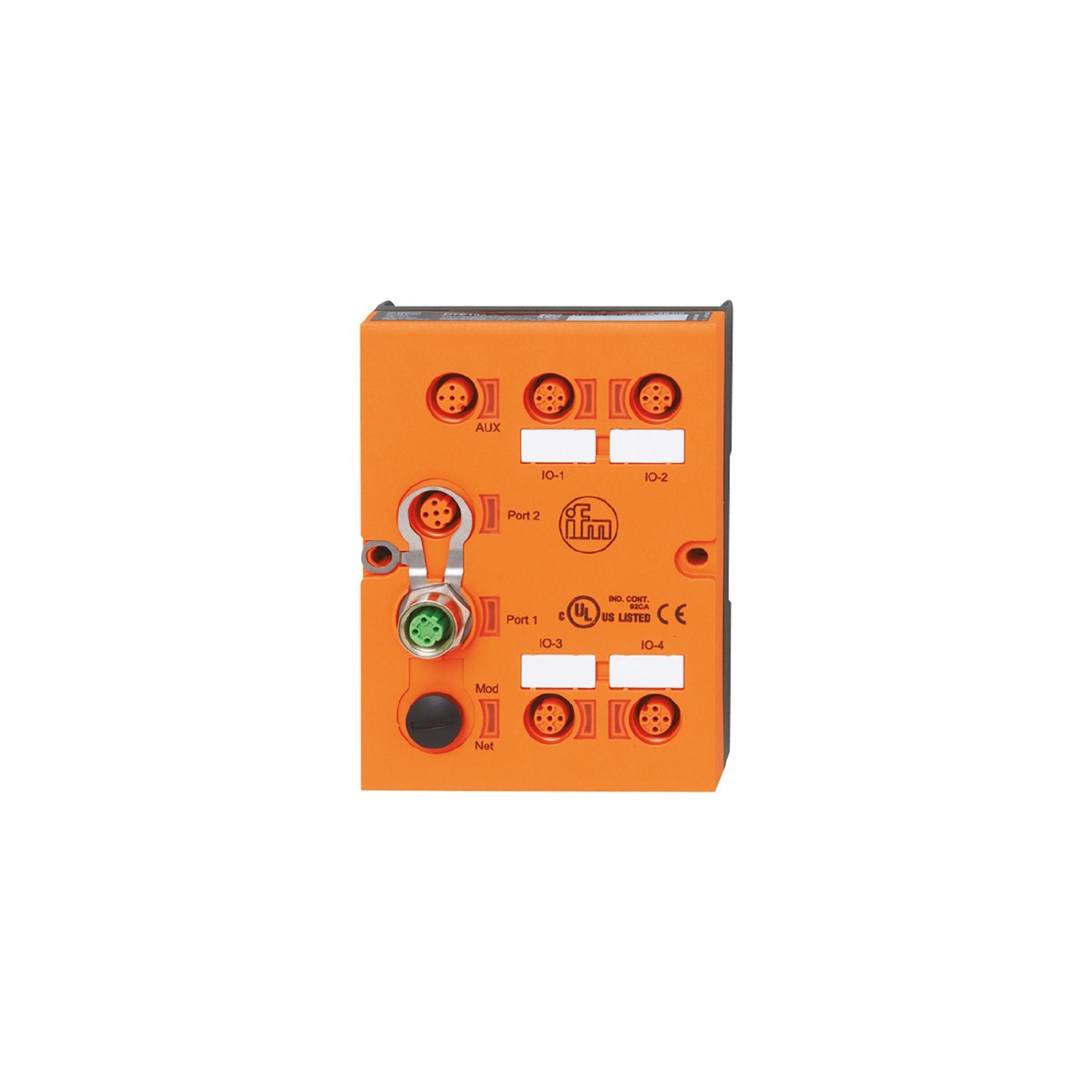

IFM DTE102 - RFID evaluation unit LF/HF DTELF/HFABRWEIUS00

RFID evaluation unit with EtherNet/IP.
With four channels for the connection of RFID antennas or digital I/Os.
Connection of the antennas with ifm standard connection cables.
Optimised Ethernet TCP/IP web server for device setup, diagnostics and monitoring.
High protection rating for the requirements of harsh industrial environments

Application	for up to 4 read/write heads type ANT41x/ANT51x

Operating voltage [V]	18...30 DC
Current consumption [mA]	< 3000

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 4

Outputs

Number of digital outputs	4
Max. current load per output [mA]	500;(IO 1,2; IO 3,4: 1000 mA)

Interfaces

Communication interface	Ethernet
Factory settings	IP address: 192.168.0.79 subnet mask: 255.255.255.0 gateway IP address: 192.168.0.100

Protocol	EtherNet/IP

Operating conditions

Ambient temperature [°C]	-20...60
Storage temperature [°C]	-20...85
Protection	IP 67

Tests / approvals

Shock resistance	IEC 60068-2-27 15 g 11 ms
Vibration resistance	IEC 60028-2-6 ±1.6 mm (17...18 Hz) / 2 g (10...150 Hz)
MTTF [years]	108.28

Weight [g]	388
Dimensions [mm]	115 x 46.2 x 85
Materials	upper part: PA Grivory GV5H orange; upper part: TPE; lower part: GD-AlSi12

Displays / operating elements

Display	power supply 1 x LED, green 1 x LED, yellow EtherNet/IP 2 x LED, red/green Ethernet 1 x LED, green 1 x LED, yellow Inputs / outputs 1 x LED, green 1 x LED, yellow

Accessories

Items supplied	Protective cap: M12, E73004

Pack quantity	1 pcs.

Electrical connection - Ethernet

Port 1/2	Connector: 2 x M12; coding: D

Electrical connection - Process connection

IO 1...4	Connector: 4 x M12; coding: A

Electrical connection - power supply

AUX	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DTE102-00 — 28.03.2013 —
