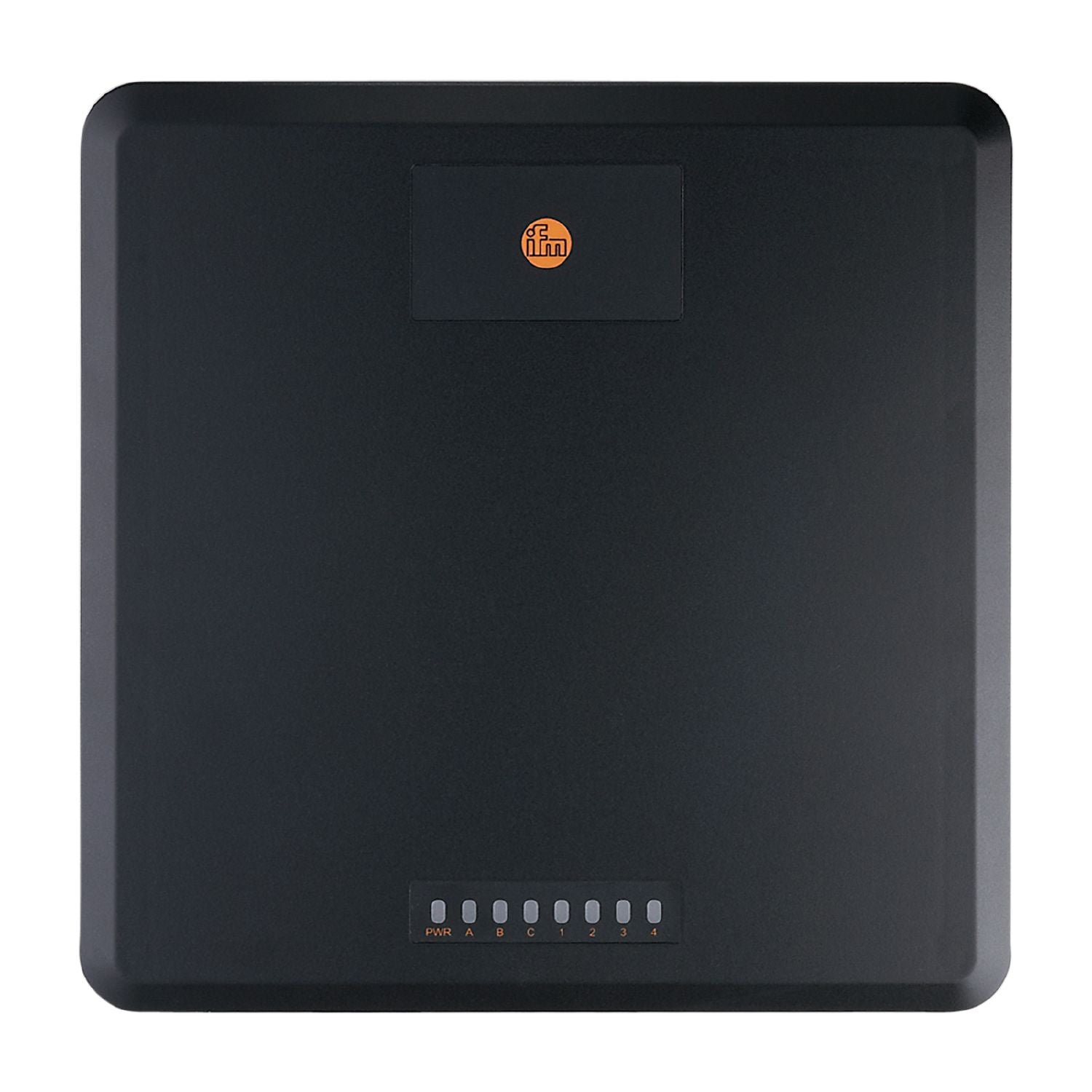

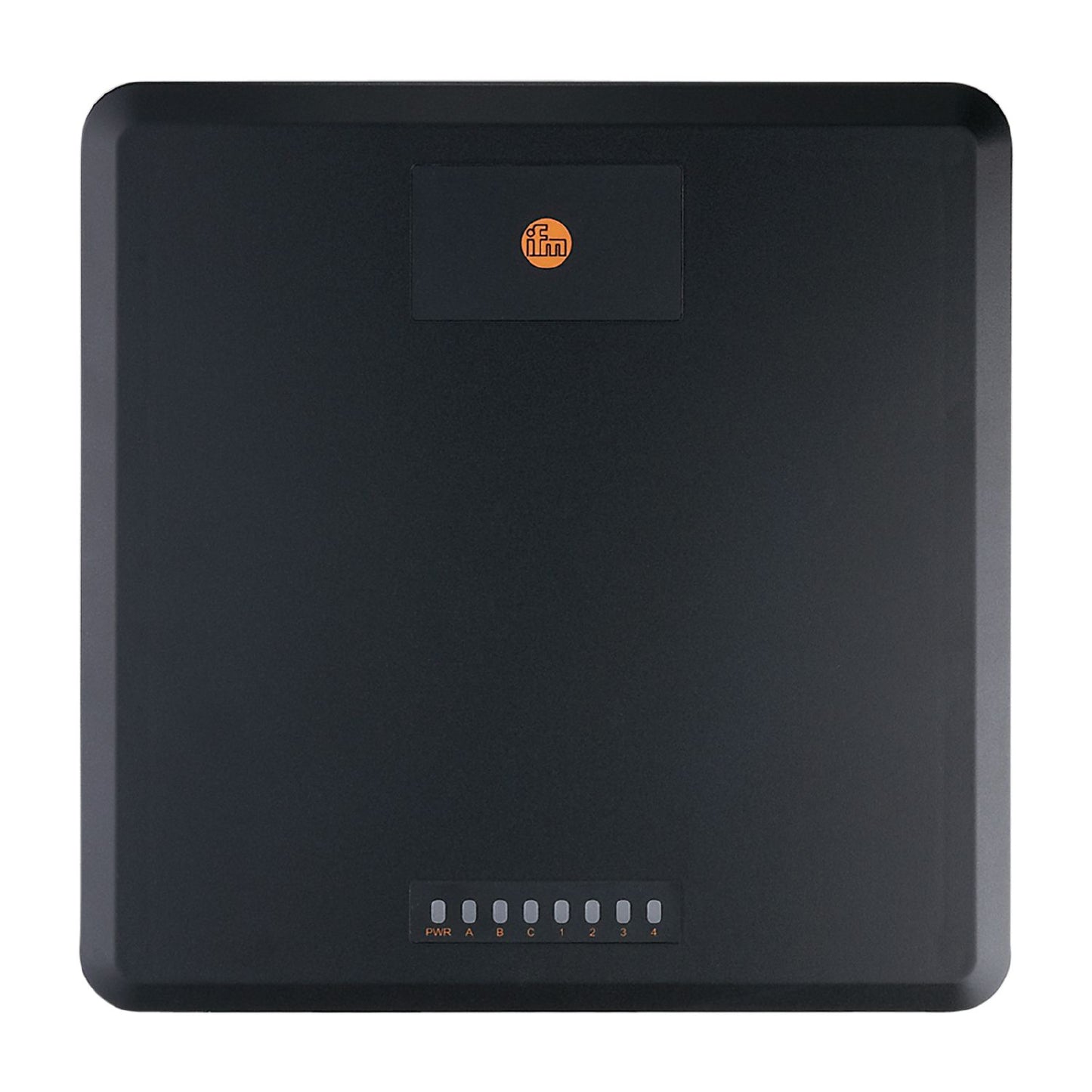

IFM DTE830 - RFID evaluation unit UHF DTEUHFE_ABRWETUSTN04

Radio approval for	EU/RED
Note on radio approval	The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.

Operating voltage [V]	24 DC
Current consumption [mA]	700
Operating frequency [MHz]	865...868 (ETSI)
Antenna connections	4;(TNC Reverse)
RFID standard	EPC Class1 GEN2/ISO 18000-6C
Transmission power ERP [mW]	2000;(parameterisable in steps: 1 dB 50mW ... 2W)
Impedance [Ω]	50

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 4; Number of digital outputs: 4

Inputs

Number of digital inputs	4

Outputs

Number of digital outputs	4
Max. current load per output [mA]	500;(max.)

Detection zone

RSSI threshold	adjustable via software

Interfaces

Communication interface	Ethernet

Protocol	EtherNet/IP
Usage type	data transmission

Protocol	TCP/IP
Usage type	parameter setting; data transmission

Operating conditions

Ambient temperature [°C]	-20...55
Storage temperature [°C]	-40...85
Protection	IP 67

Tests / approvals

Radio approval	EN 302 208

Weight [g]	3354
Dimensions [mm]	300 x 300 x 71
Materials	housing: aluminium; Protective cover: plastics; TNC socket: brass / PTFE; connector: brass / plastic

Displays / operating elements

Display	operation 1 x LED, yellow/green 4 x LED, multi-colour programmable
Acoustic signal	buzzer

Pack quantity	1 pcs.

Electrical connection - Ethernet

LAN	Connector: 1 x M12; coding: X

Electrical connection - inputs / outputs

GPIO	Connector: 1 x M12

Electrical connection - power supply

Power Supply	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DTE830-00 — 05.11.2020 —
