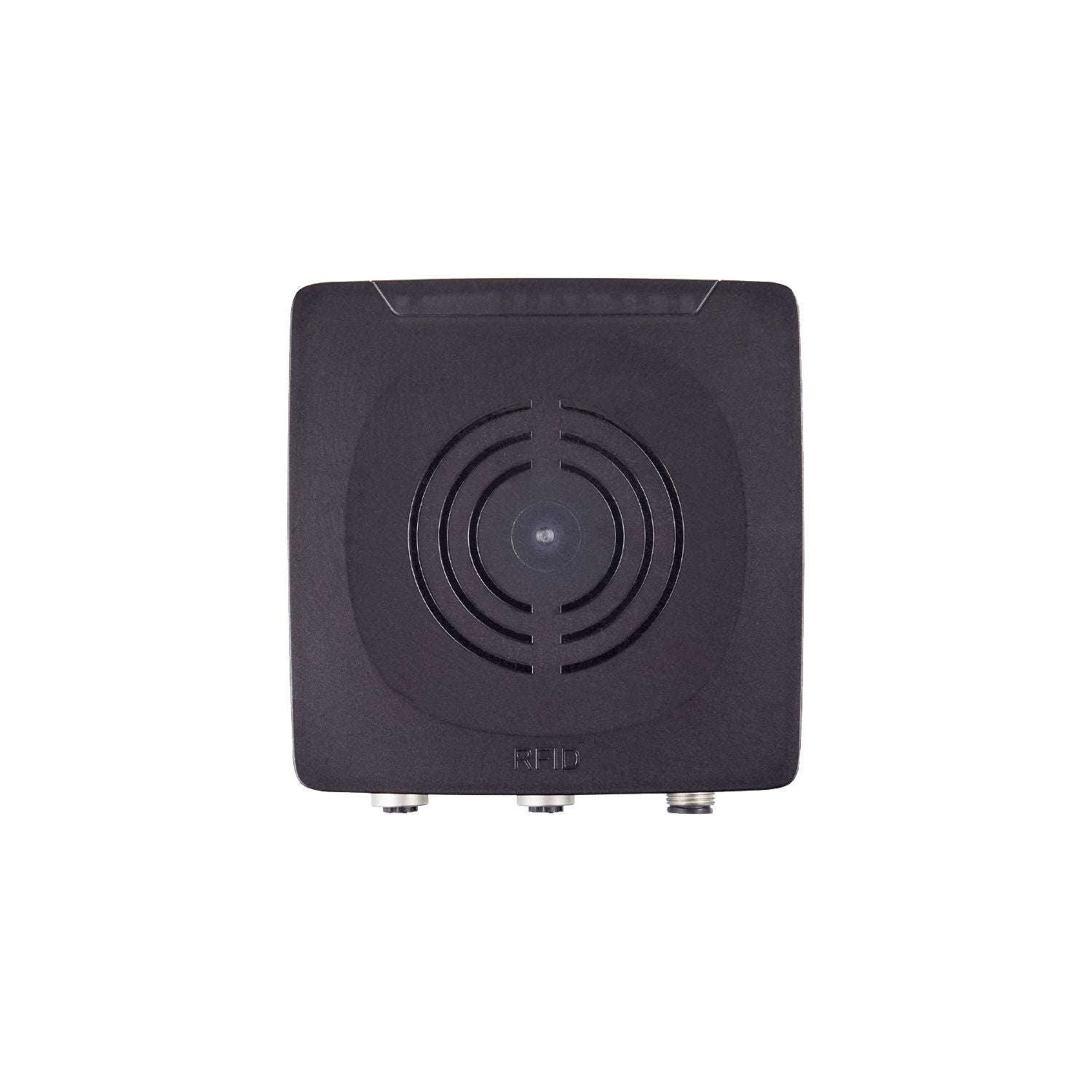

IFM DTE914 - compact RFID device DTRUHFA HLRWETUS04

Radio approval for	China

Operating voltage [V]	19.2...28.8 DC
Current consumption [mA]	500
Power consumption [W]	8.6
Protection class	III
Operating frequency [MHz]	920,5...924,5
RFID standard	EPC Class1 GEN2/ISO 18000-63
Transmission power EIRP [mW]	200;(maximum: 250 mW)

Outputs

Max. current load per output [mA]	100;(max.)

Interfaces

Communication interface	Ethernet

Protocol	TCP/IP
Factory settings	IP address: 192.168.0.79 subnet mask: 255.255.255.0 gateway IP address: 192.168.0.100
Usage type	parameter setting; data transmission

Operating conditions

Ambient temperature [°C]	-20...55
Note on ambient temperature	with mounting plate and cooling element: -20...60 °C
Storage temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

Shock resistance	IEC 60028-2-27 40 g (6 ms) / bump 50 g (11 ms) / single shock
Vibration resistance	EN 60068-2-6 2 g (10...150 Hz)

Weight [g]	691.15
Dimensions [mm]	113 x 118.6 x 50
Materials	housing: aluminium; PBT / PC; stainless steel

Displays / operating elements

Display	power supply 1 x LED, green LED bar display 4 x LED, yellow signal strength ID tag status 2 x LED, green/red fieldbus interface status 2 x LED, green/yellow Ethernet

Pack quantity	1 pcs.

Electrical connection - Ethernet

ETH1 / ETH2	Connector: 2 x M12; coding: D

Electrical connection - power supply

PWR	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DTE914-00 — 05.07.2023 —
