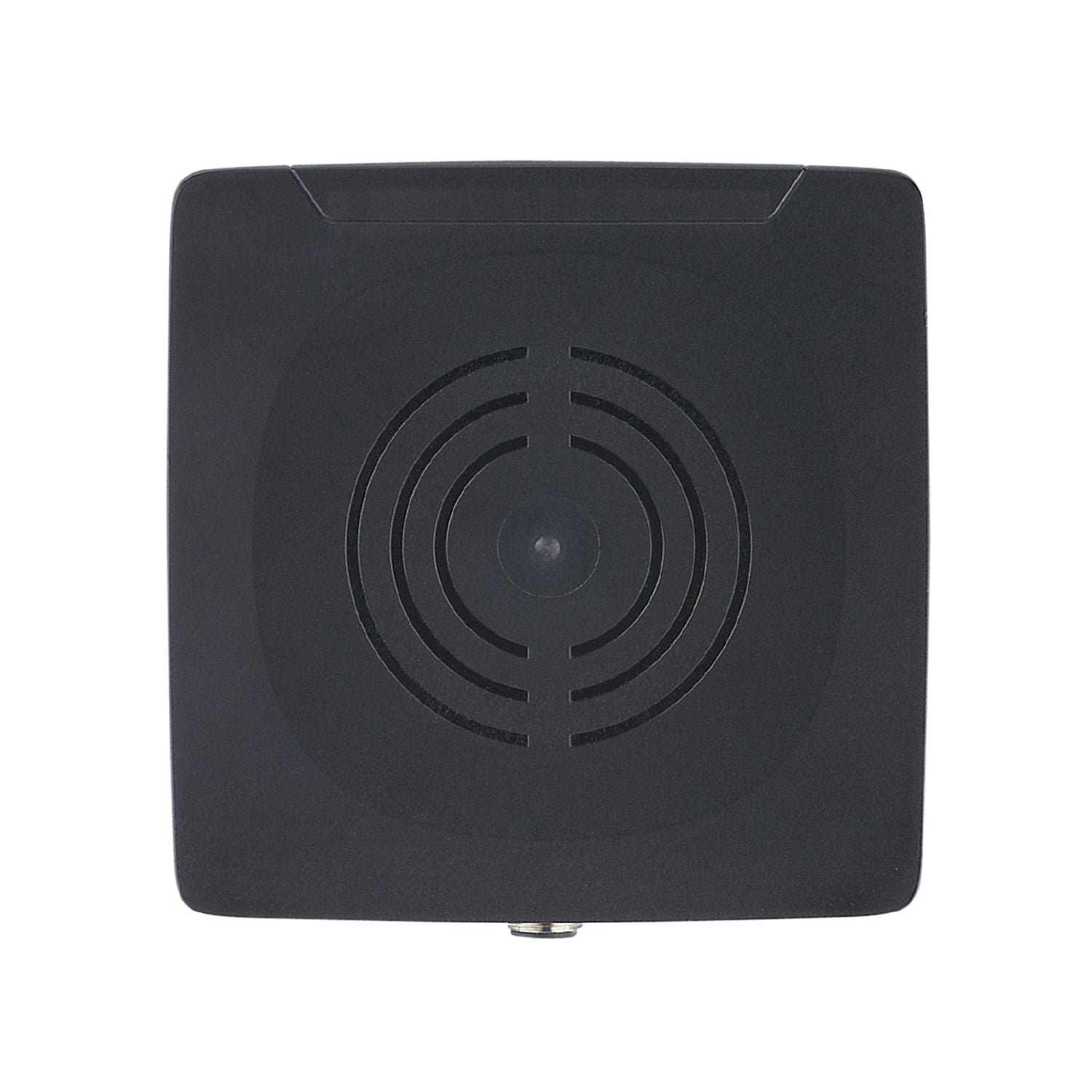

For the reliable identification of ID tags on workpiece carriers and products. RFID_HF_Schreib_Lesekopf_für große Reichweite| Hohe_Schutzart_fuer_die_Anforderungen_rauer_Industrieumgebungen
The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.
Operating voltage [V]
19.2...28.8 DC
Current consumption [mA]
< 150
Protection class
III
Operating frequency [MHz]
13,56
RFID standard
ISO 15693
Detection zone
Distance write/read head front [mm]
400
Distance write/read head side [mm]
600
Distance to the ID tag [mm]
referred to the ID tag E80384
:
< 190
referred to an ISO card E80407
:
< 230
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9
Profiles
Smart Sensor: Device Identification
SIO mode
no
Required master port type
A
Supported DeviceIDs
Type of operation
DeviceID
default
967
Operating conditions
Ambient temperature [°C]
-20...60
Storage temperature [°C]
-25...80
Protection
IP 67
Tests / approvals
Shock resistance
EN 60068-2-27
40 g 6 ms / bump
EN 60068-2-27
50 g 11 ms / single shock
Vibration resistance
EN 60068-2-6
2 g 10...150 Hz
Weight [g]
456
Dimensions [mm]
120 x 50 x 113
Materials
PBT; PC; stainless steel
Displays / operating elements
Display
operation
1 x LED, green
tag communication
4 x LED bar display, yellow signal strength ID tag
Remarks
For the distances to other ID tags see the respective data sheet (E803xx)
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A
