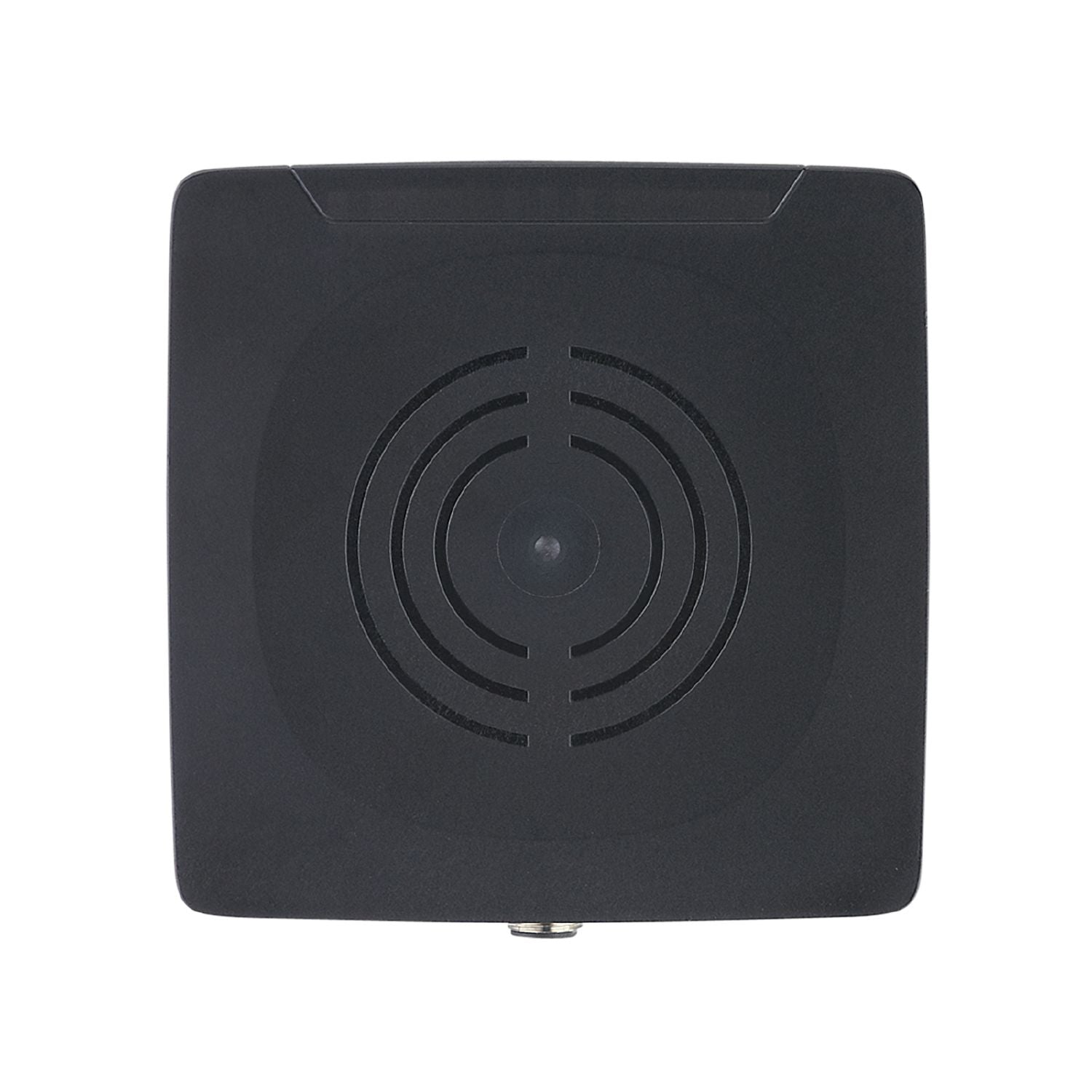

For the reliable identification of ID tags on workpiece carriers and products. RFID_UHF_Schreib_Lesekopf_für große Reichweite| Hohe_Schutzart_fuer_die_Anforderungen_rauer_Industrieumgebungen
Application
detection of objects on transport equipment
Radio approval for
EU/RED; United Kingdom
Note on radio approval
The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.
Operating voltage [V]
18...30 DC
Current consumption [mA]
< 250
Power consumption [W]
4.8
Protection class
III
Operating frequency [MHz]
865...868
RFID standard
EPC Class1 GEN2/ISO 18000-63
Transmission power ERP [mW]
120;(maximum: 200 mW)
Interfaces
Communication interface
IO-Link
Transmission type
COM3 (230,4 kBaud)
IO-Link revision
1.1
Supported DeviceIDs
Type of operation
DeviceID
default
1418
Operating conditions
Ambient temperature [°C]
-20...60
Storage temperature [°C]
-25...80
Protection
IP 67
Tests / approvals
Shock resistance
EN 60068-2-27
40 g 6 ms / bump
EN 60068-2-27
50 g 11 ms / single shock
Vibration resistance
EN 60068-2-6
2 g 10...150 Hz
Electrical protection
EN 61010-2-201
electrical supply only via PELV circuits
Weight [g]
637.5
Dimensions [mm]
120 x 50 x 113
Materials
PBT; PC; stainless steel; aluminium
Displays / operating elements
Display
operation
1 x LED, green
tag communication
4 x LED bar display, yellow number of tags in the field
Pack quantity
1 pcs.
Electrical connection
Connector: 1 x M12; coding: A
