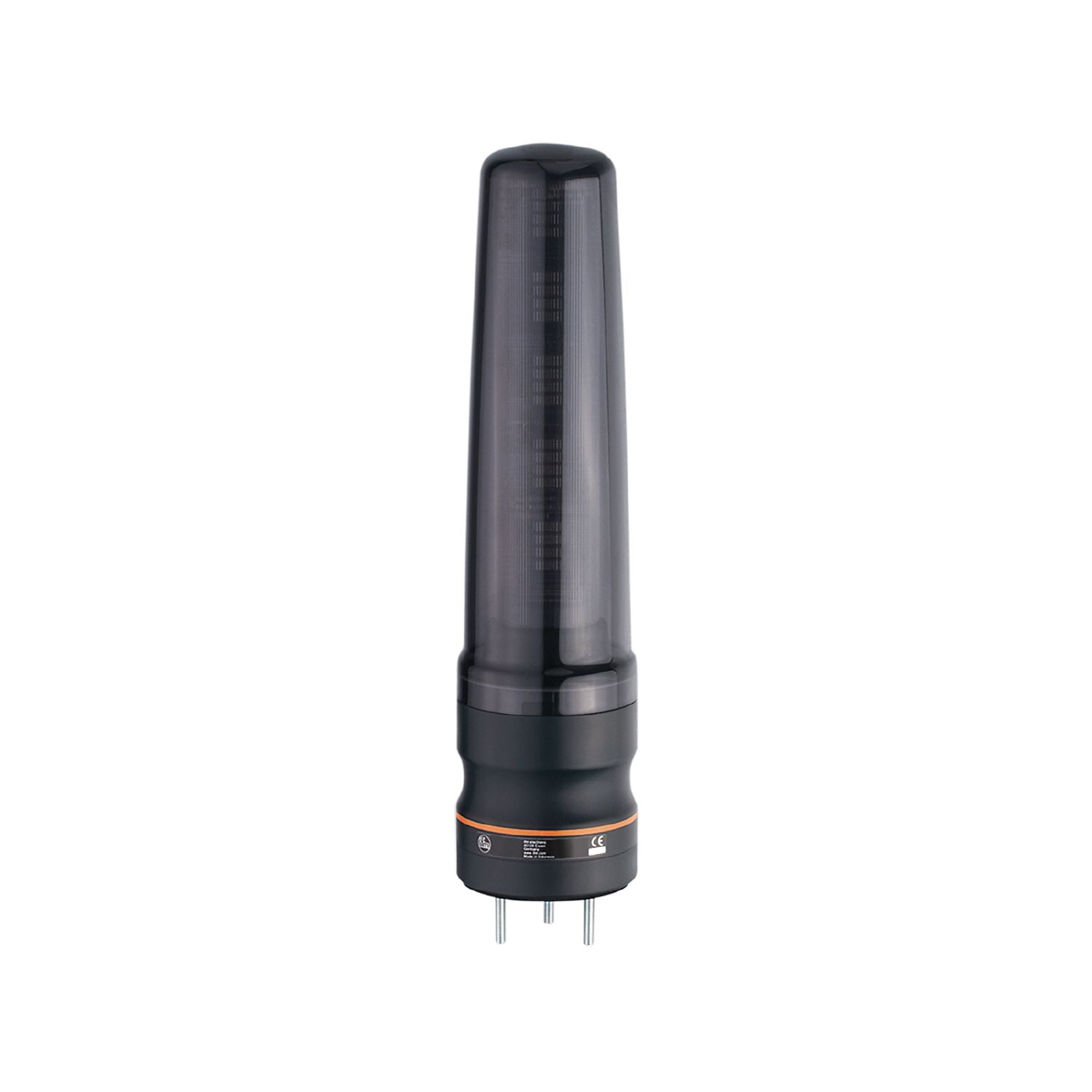

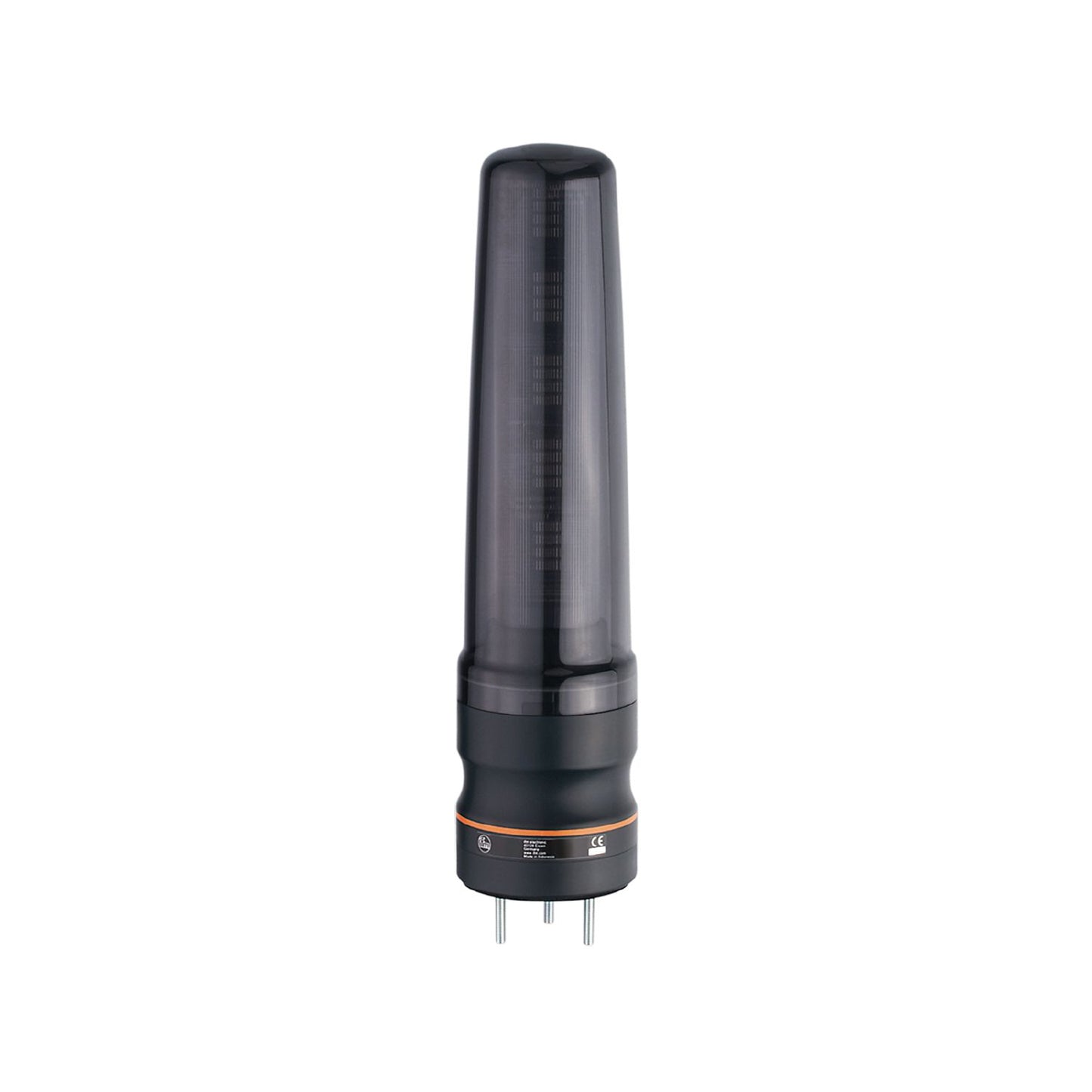

Ideal for retrofitting existing machinery and installations. Perfect visibility. Modern LED RGB technology, long life, reduced stock-keeping. Reproduction of the signal colours of existing lamps by means of freely configurable RGB LEDs
Application
Display and transfer of machine states to higher-level evaluation software via IO-Link
Operating voltage [V]
18...30 DC;(to SELV/PELV)
Nominal voltage DC [V]
24
Current consumption [mA]
< 200
Inputs / outputs
Number of inputs and outputs
Number of digital inputs: 6
Inputs
Number of digital inputs
6
Input current High [mA]
6
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9
SIO mode
yes
Required master port type
A
Min. process cycle time [ms]
3.2
Supported DeviceIDs
Type of operation
DeviceID
default
1700
Operating conditions
Ambient temperature [°C]
-25...50
Storage temperature [°C]
-40...75
Max. relative air humidity [%]
90
Air pressure [kPa]
< 106
Max. height above sea level [m]
2000
Protection
IP 54
Weight [g]
502.8
Dimensions [mm]
Ø 70 / L = 284
Materials
housing: ABS; lens: PC
Displays / operating elements
Display
status
1 x LED, green
LED segment
5 x 4 LED
Acoustic signal
buzzer
Max. sound pressure [dB]
85
Accessories
Accessories (optional)
mounting base, E89060
wall bracket, E89061
Mounting adapter, E89063
bracket with lateral cable entry, E89064
mounting tube, E89065
mounting tube, E89066
mounting tube, E89067
Remarks
For further information please see the operating instructions.
Pack quantity
1 pcs.
Electrical connection - plug
Connection
Connector:M12; coding: A
Diagrams and graphs
base mounting
wall mounting
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DV1531-00 — 15.01.2024 —
