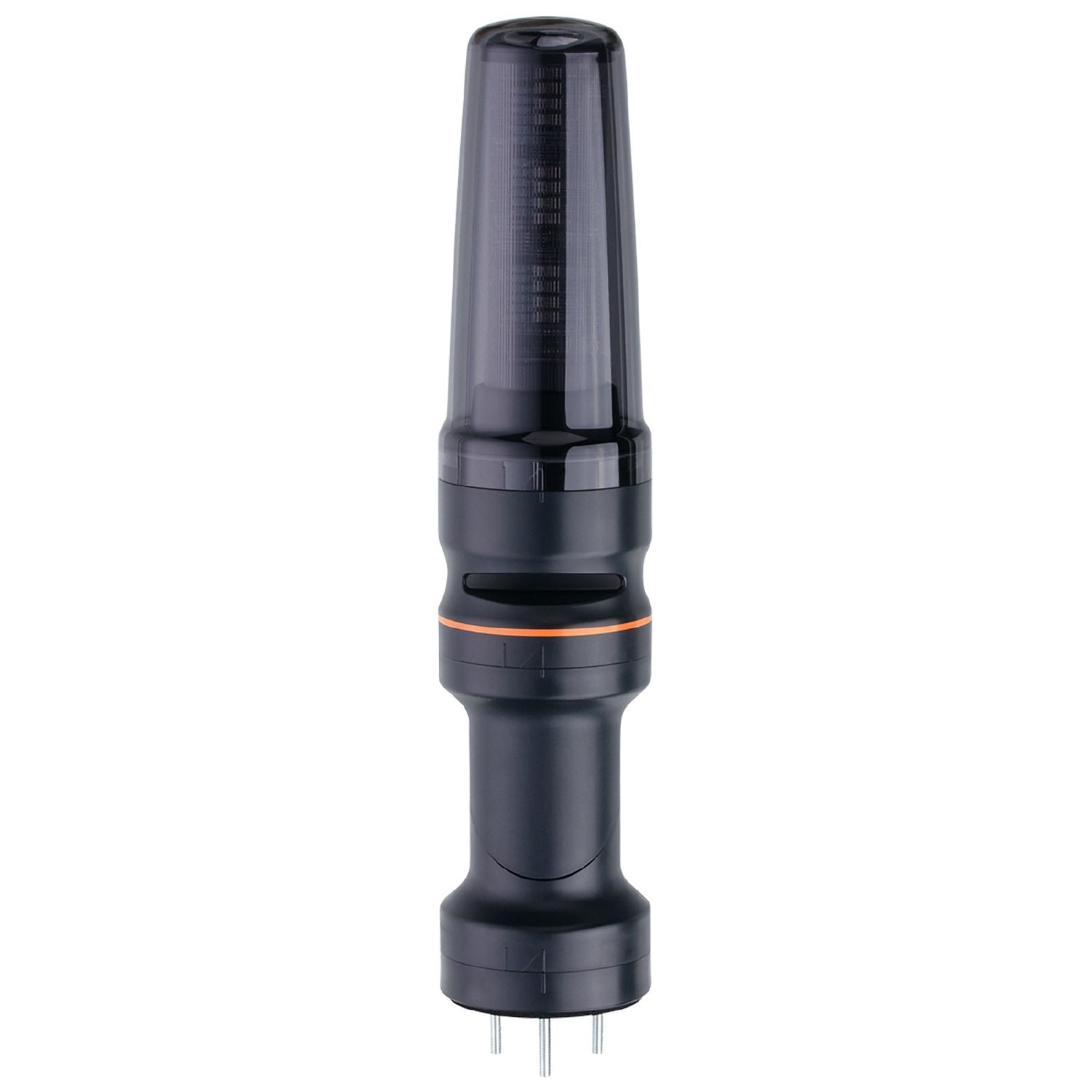

IFM DV2310 - 3-segment signal light LED-Tower-3/IOL/Bracket+Buz

Application	signalling machine conditions

Operating voltage [V]	18...30 DC;(to SELV/PELV)
Nominal voltage DC [V]	24
Current consumption [mA]	< 200

Inputs

Input current High [mA]	6

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
SIO mode	yes
Required master port type	A
Min. process cycle time [ms]	3.2
Supported DeviceIDs	Type of operation DeviceID default 1467

Operating conditions

Ambient temperature [°C]	-25...50
Storage temperature [°C]	-40...75
Max. relative air humidity [%]	90
Air pressure [kPa]	< 106
Max. height above sea level [m]	2000
Protection	IP 54

Tests / approvals

UL approval	power supply Class 2

Weight [g]	520
Type of mounting	Mounting base
Dimensions [mm]	Ø 70 / L = 280
Materials	housing: ABS; lens: PC

Displays / operating elements

Display	LED segment 3 x 4 LED
Acoustic signal	buzzer
Max. sound pressure [dB]	85

Accessories

Accessories (optional)	mounting base, E89060 wall bracket, E89061 Mounting adapter, E89063 bracket with lateral cable entry, E89064 mounting tube, E89065 mounting tube, E89066 mounting tube, E89067

Remarks	For further information please see the operating instructions.
Pack quantity	1 pcs.

Electrical connection - plug

	Connector:M12; coding: A

Diagrams and graphsifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DV2310-00 — 17.03.2022 —
