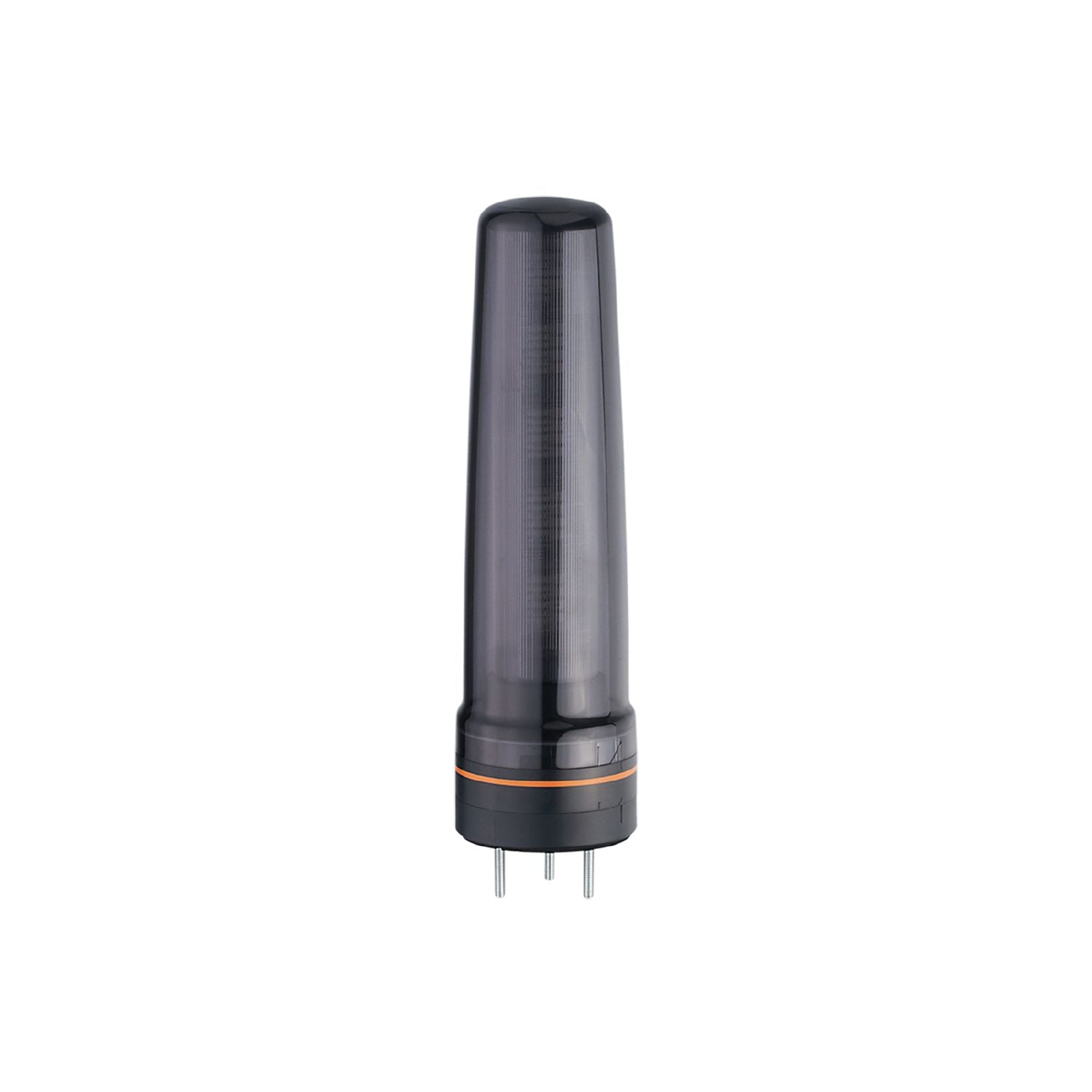

IFM DV2520 - 5-segment light tower with IO-Link control LED-Tower-5/IO-Link

Perfect visibility.
Modern LED RGB technology, long life, reduced stock-keeping.
Also as standard version with digital inputs.
Quick and easy to mount

Application	signalling machine conditions

Operating voltage [V]	18...30 DC;(to SELV/PELV)
Nominal voltage DC [V]	24
Current consumption [mA]	< 200

Inputs

Input current High [mA]	6

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
SIO mode	yes
Required master port type	A
Min. process cycle time [ms]	3.2
Supported DeviceIDs	Type of operation DeviceID default 841

Operating conditions

Ambient temperature [°C]	-25...50
Storage temperature [°C]	-40...75
Max. relative air humidity [%]	90
Air pressure [kPa]	< 106
Max. height above sea level [m]	2000
Protection	IP 65

Weight [g]	503
Dimensions [mm]	Ø 70 / L = 244
Materials	housing: ABS; lens: PC

Displays / operating elements

Display	LED segment 5 x 4 LED

Accessories

Accessories (optional)	mounting base, E89060 wall bracket, E89061 Mounting adapter, E89063 bracket with lateral cable entry, E89064 mounting tube, E89065 mounting tube, E89066 mounting tube, E89067

Remarks	For further information please see the operating instructions.
Pack quantity	1 pcs.

Electrical connection - plug

	Connector:M12; coding: A

Diagrams and graphs

wall mounting

base mounting
