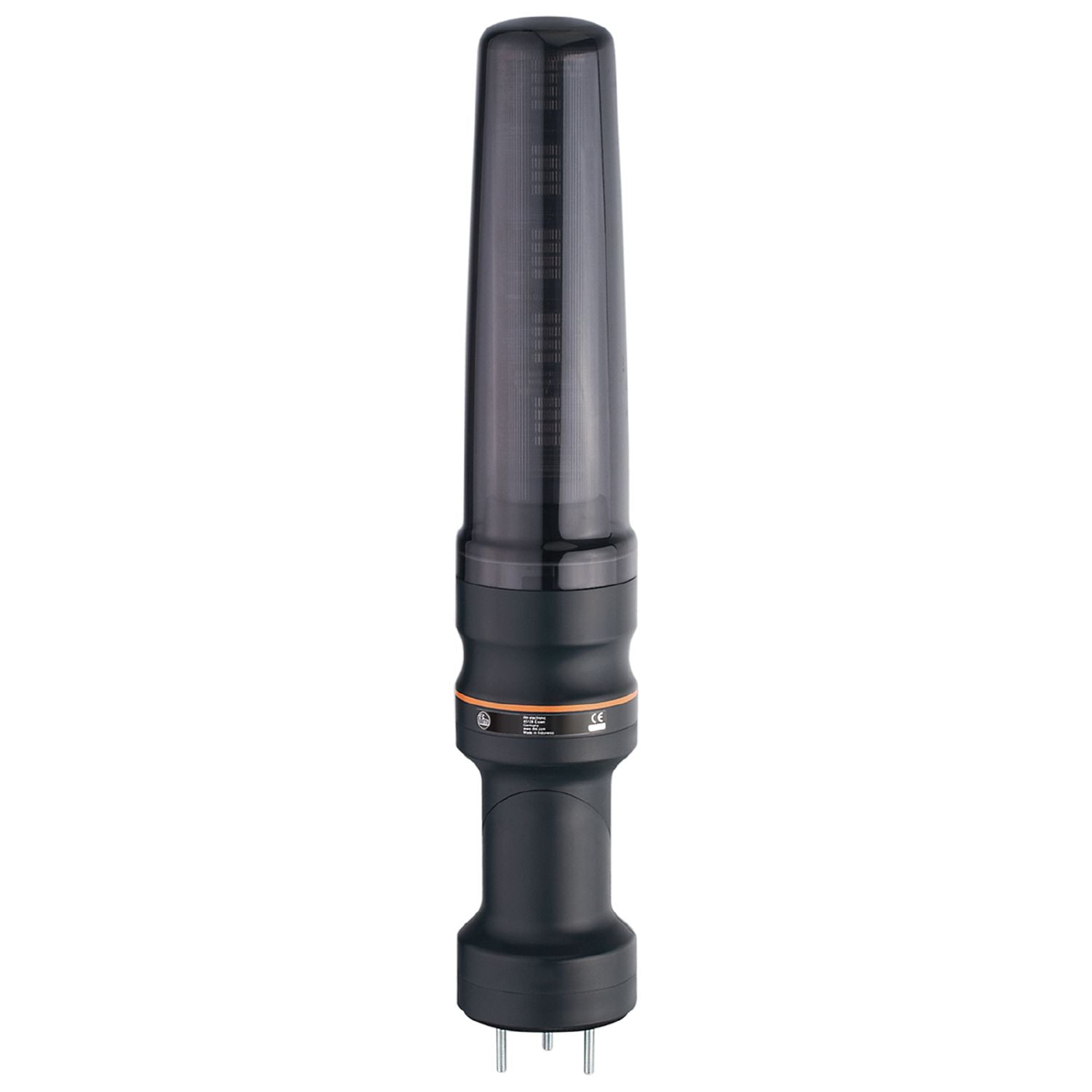

Perfect visibility. Modern LED RGB technology, long life, reduced stock-keeping. Quick and easy to mount. Optimum representation of analogue values
Application
signalling machine conditions
Operating voltage [V]
18...30 DC;(to SELV/PELV)
Nominal voltage DC [V]
24
Current consumption [mA]
< 200
Switch-on peak current [mA]
500;(2 ms; 400 mA: 50 ms)
Inputs
Input current High [mA]
6
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9
SIO mode
yes
Required master port type
A
Min. process cycle time [ms]
3.2
Supported DeviceIDs
Type of operation
DeviceID
default
1533
Operating conditions
Ambient temperature [°C]
-25...50
Storage temperature [°C]
-40...75
Max. relative air humidity [%]
90
Air pressure [kPa]
< 106
Max. height above sea level [m]
2000
Protection
IP 54
Weight [g]
593.9
Type of mounting
Mounting base
Dimensions [mm]
Ø 70 / L = 384
Materials
housing: ABS; lens: PC
Displays / operating elements
Display
LED segment
20 x LEDs, multi-colour
Acoustic signal
buzzer
Max. sound pressure [dB]
85
Accessories
Accessories (optional)
mounting base, E89060
wall bracket, E89061
Mounting adapter, E89063
bracket with lateral cable entry, E89064
mounting tube, E89065
mounting tube, E89066
mounting tube, E89067
Remarks
For further information please see the operating instructions.
Pack quantity
1 pcs.
Electrical connection - plug
Connector:M12; coding: A
Diagrams and graphs
wall mounting
base mounting
