Frequency-proportional current or voltage output. For detecting belt speed and monitoring belt speed with regard to overspeed and underspeed. High input frequency of up to 600,000 pulses / minute. Various configurable monitoring functions. Clearly readable, luminous OLED display for programming and actual value indication

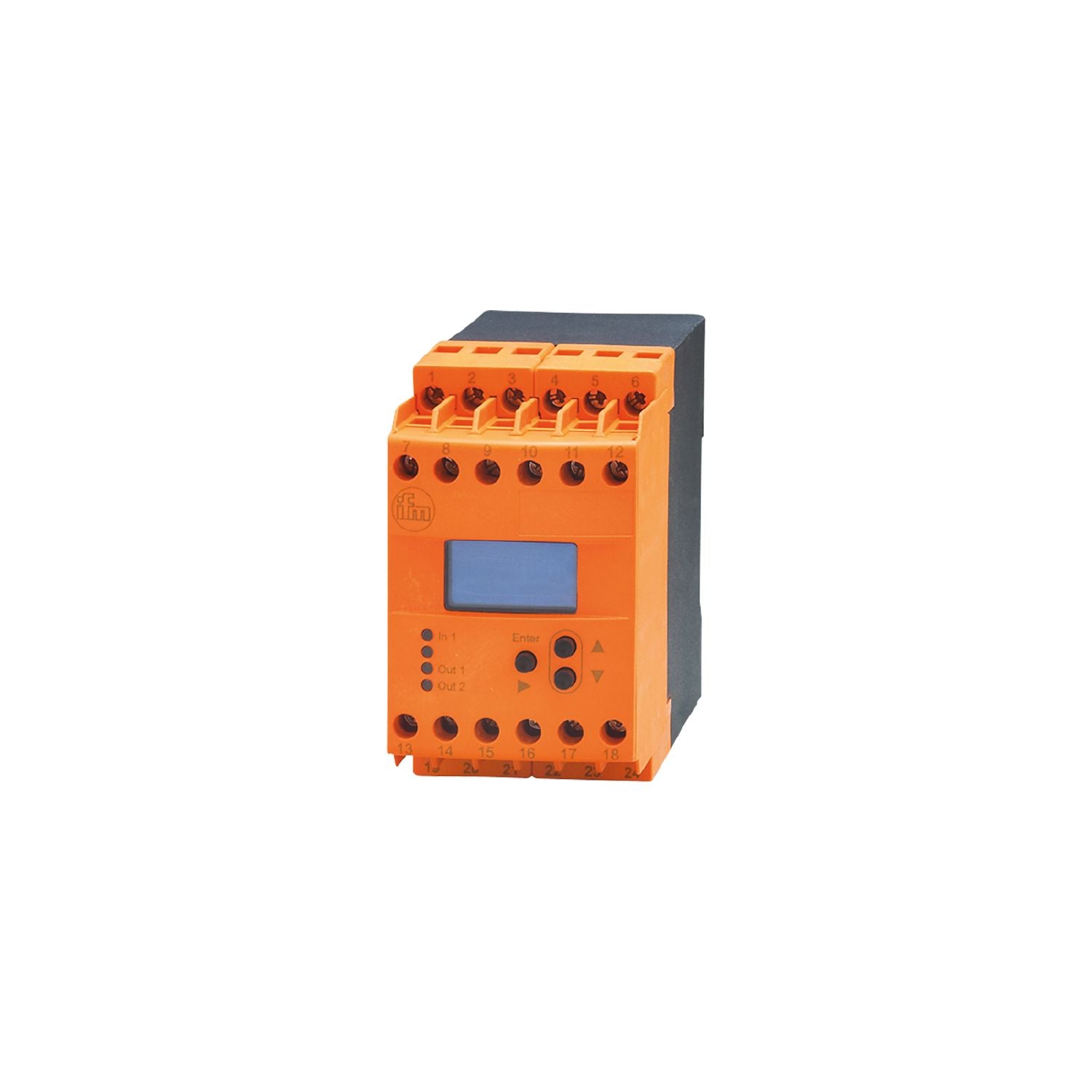

Housing
housing for DIN rail mounting
Dimensions [mm]
78 x 45 x 124.7
Application
conversion of pulse sequences into analogue standard signals
Nominal voltage AC [V]
110...240
Nominal voltage DC [V]
27
Nominal voltage tolerance [%]
< 10
Nominal voltage tolerance 2 [%]
20...10
Nominal frequency AC [Hz]
50...60
Max. power consumption [VA]
8
Power consumption [W]
5
Auxiliary energy for sensors DC [V]
19.6...27.7;(SELV, ≤ 150 mA)
Inputs / outputs
Number of inputs and outputs
Number of analogue outputs: 1; Number of relay outputs: 1
Outputs
Number of relay outputs
1
Contact rating
6 A (250 V AC); B300, R300
Number of analogue outputs
1
Analogue current output [mA]
4...20
Max. load [Ω]
500
Analogue voltage output [V]
0...10
Min. load resistance [Ω]
10000
Measuring/setting range
Setting range Hz [Hz]
0...10000
Setting range [Imp/min]
0...600000
Operating conditions
Ambient temperature [°C]
-40...60
Storage temperature [°C]
-40...85
Max. relative air humidity [%]
80;(40 °C: 50 %)
Protection
IP 50
Protection rating terminals
IP 20
Tests / approvals
EMC
EN 61010
2011
EMV 89/336/EWG
EN 61000-6-2
2005
EN 61000-6-4
2007
Weight [g]
380.5
Housing
housing for DIN rail mounting
Dimensions [mm]
78 x 45 x 124.7
Materials
plastics
Displays / operating elements
Display
OLED display, 128 x 64 pixels luminous
switching status
LED, green
Remarks
The unit complies with overvoltage category II; pollution degree 2
Electrical connection
dual-chamber terminals: 2 x ...2.5 mm²; AWG 14
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DW2503-00 — 20.06.2023 —
