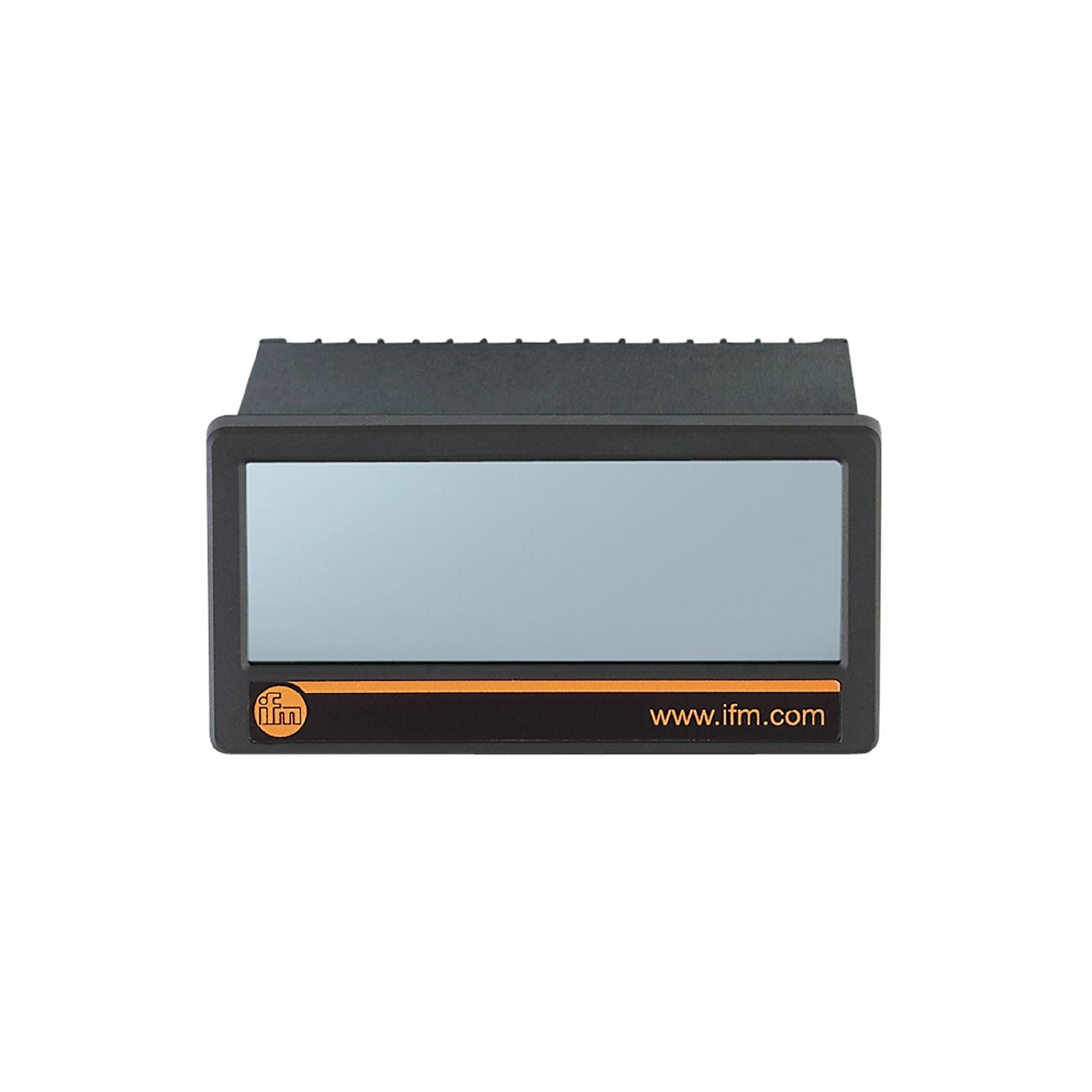

IFM DX2021 - Multifunction display for monitoring revolution, speed and time DISPLAY/FX460/AC/DC

For monitoring rotational speed, speed, quantity or handling time.
For displaying and evaluating pulse sequences with high input frequency.
Clearly visible LCD display.
Intuitive handling due to touch display and plain text.
Various configurable monitoring functions

Dimensions [mm]	48 x 112 x 116

Application	universal evaluation and display for all physical units which can be derived from pulse sequences

Frequency AC [Hz]	50...60
Operating voltage [V]	115...230 AC / 18...30 DC
Current consumption [mA]	100

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 2

Inputs

Number of digital inputs	2

Operating conditions

Ambient temperature [°C]	-20...60
Storage temperature [°C]	-25...70
Protection	IP 65
Protection rating terminals	IP 20

Tests / approvals

EMC	EN 61000-6-2 EN 61000-6-3 EN 61000-6-4

Weight [g]	355
Type of mounting	panel cutout: 91 x 43 mm
Dimensions [mm]	48 x 112 x 116
Materials	Noryl UL94-V-0

Displays / operating elements

Display	colour display full graphic LCD display, touch screen

Electrical connection

Connection	screw terminals:

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DX2021-00 — 19.10.2016 —
