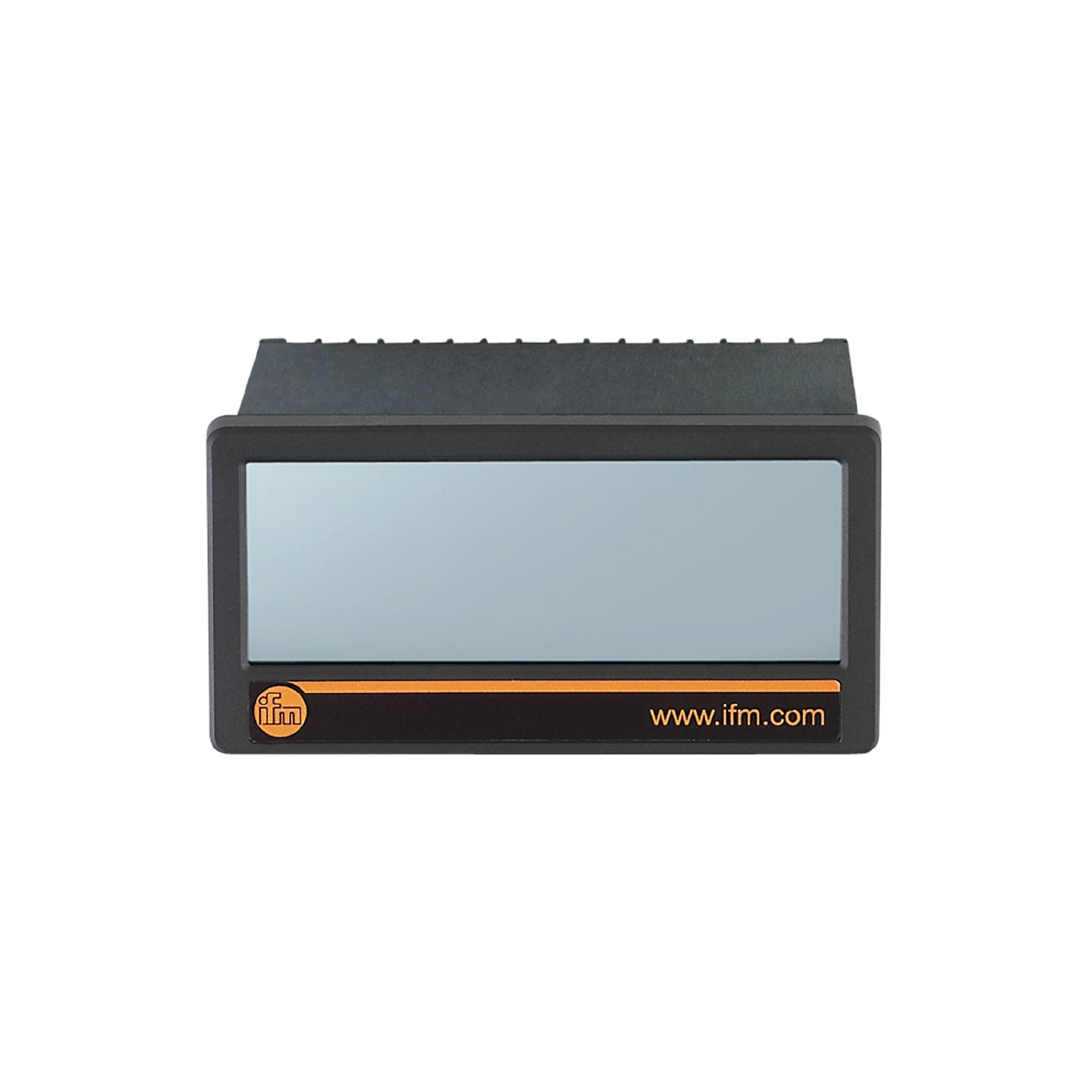

IFM DX2022 - Multifunction display for monitoring revolution, speed and time DISPLAY/FX460/ANALOG/AC/DC

For monitoring rotational speed, speed, quantity or handling time.
For displaying and evaluating pulse sequences with high input frequency.
Clearly visible LCD display.
Intuitive handling due to touch display and plain text.
With four adjustable switching outputs and analogue output

Dimensions [mm]	48 x 112 x 116

Application	universal evaluation and display for all physical units which can be derived from pulse sequences

Frequency AC [Hz]	50...60
Operating voltage [V]	115...230 AC / 18...30 DC
Current consumption [mA]	100

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 2; Number of digital outputs: 4; Number of analogue outputs: 1

Inputs

Number of digital inputs	2

Outputs

Number of digital outputs	4
Number of analogue outputs	1
Analogue current output [mA]	4...20
Max. load [Ω]	270
Analogue voltage output [V]	-10...10
Overload protection	yes

Operating conditions

Ambient temperature [°C]	-20...60
Storage temperature [°C]	-25...70
Protection	IP 65
Protection rating terminals	IP 20

Tests / approvals

EMC	EN 61000-6-2 EN 61000-6-3 EN 61000-6-4

Weight [g]	352
Type of mounting	panel cutout: 91 x 43 mm
Dimensions [mm]	48 x 112 x 116
Materials	Noryl UL94-V-0

Displays / operating elements

Display	colour display full graphic LCD display, touch screen

Electrical connection

Connection	screw terminals:
