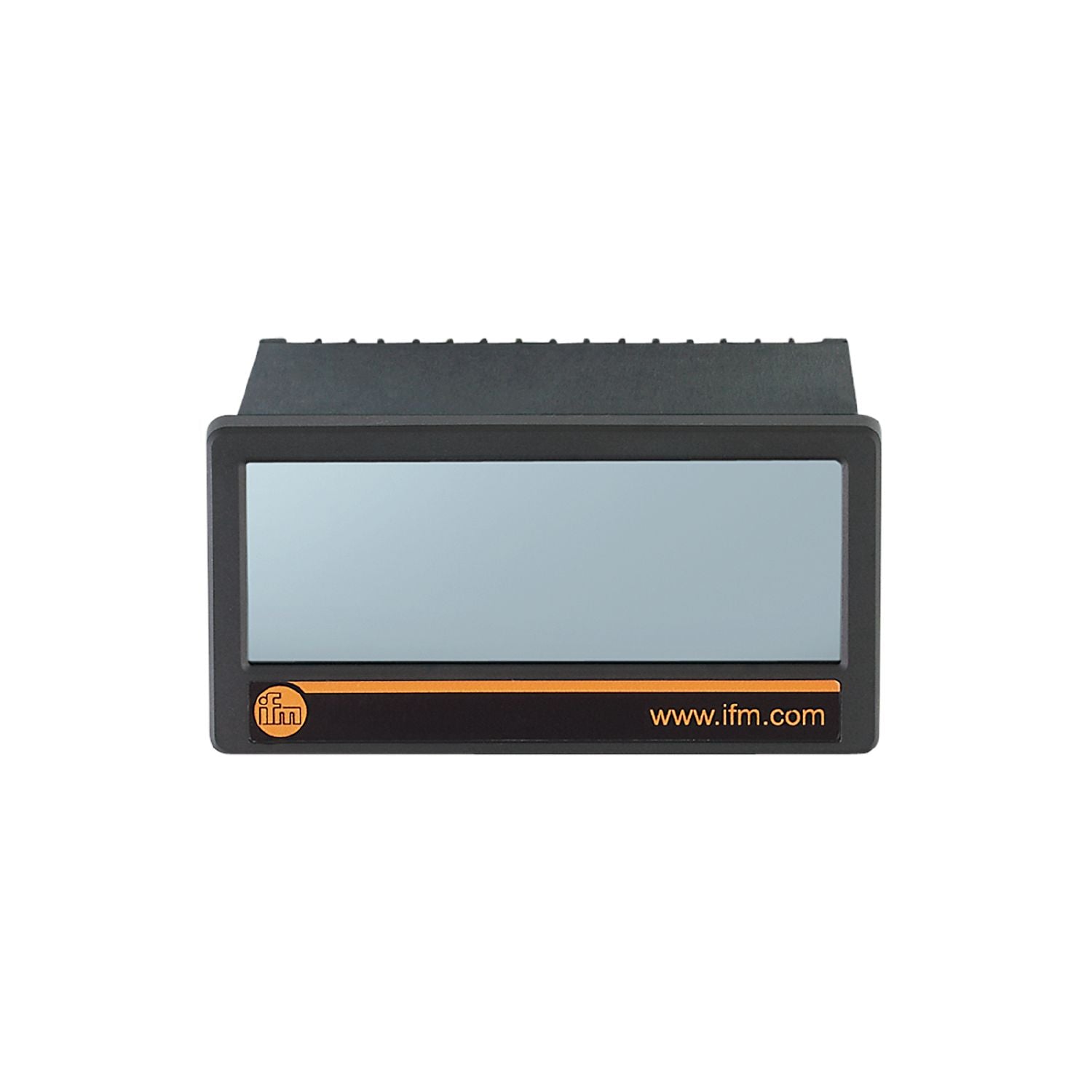

IFM DX2033 - Multifunction display for monitoring revolution, speed and time DISPLAY/FX460/PNP OUT/DC

For monitoring rotational speed, speed, quantity or handling time.
For displaying and evaluating pulse sequences with high input frequency.
Clearly visible LCD display.
Intuitive handling due to touch display and plain text.
With four adjustable switching outputs

Dimensions [mm]	48 x 112 x 116

Application	universal evaluation and display for all physical units which can be derived from pulse sequences

Operating voltage [V]	18...30 DC
Current consumption [mA]	100

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 2; Number of digital outputs: 4

Inputs

Number of digital inputs	2

Outputs

Number of digital outputs	4
Overload protection	yes

Operating conditions

Ambient temperature [°C]	-20...60
Storage temperature [°C]	-25...70
Protection	IP 65
Protection rating terminals	IP 20

Tests / approvals

EMC	EN 61000-6-2 EN 61000-6-3 EN 61000-6-4

Weight [g]	299
Type of mounting	panel cutout: 91 x 43 mm
Dimensions [mm]	48 x 112 x 116
Materials	Noryl UL94-V-0

Displays / operating elements

Display	colour display full graphic LCD display, touch screen

Electrical connection

Connection	screw terminals:
