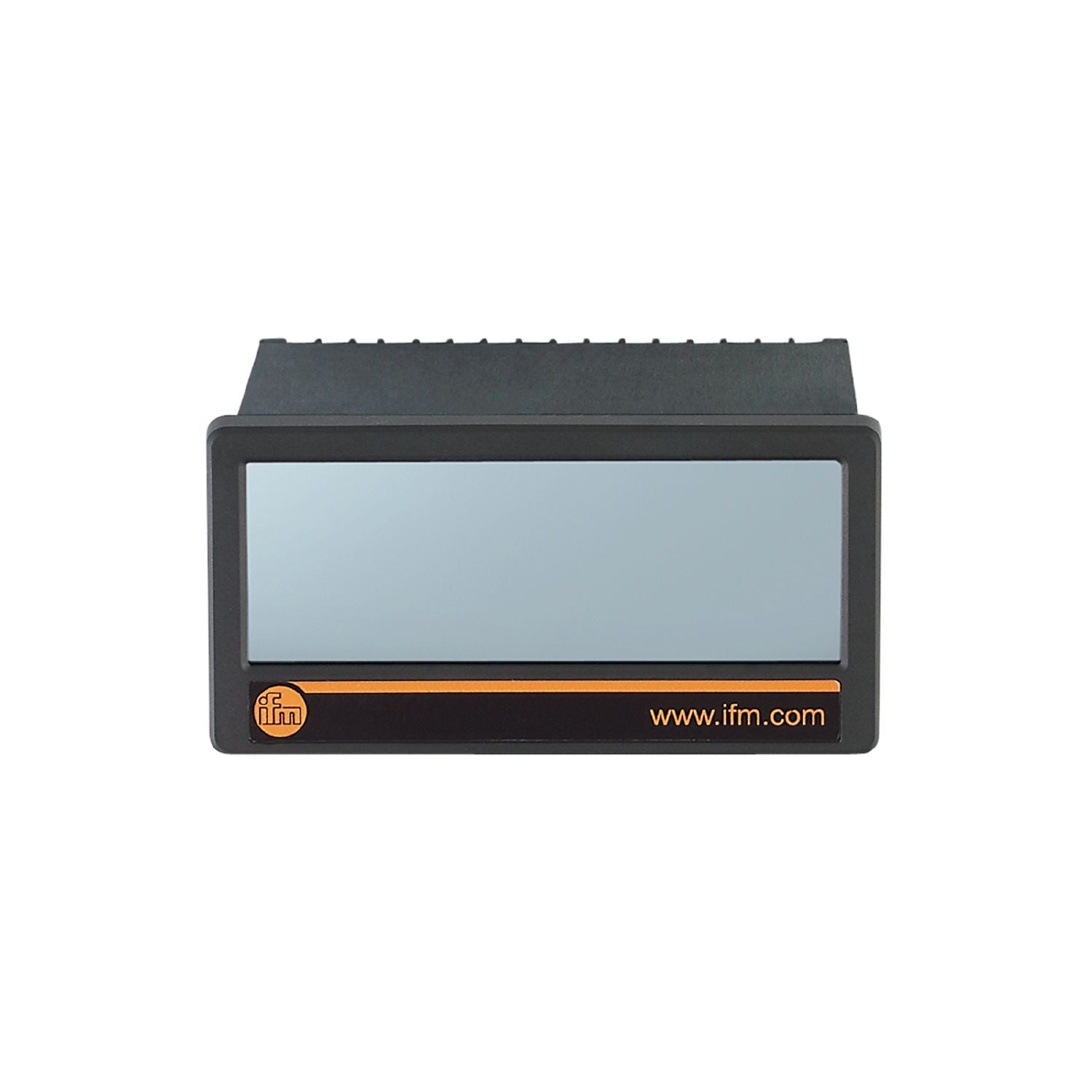

IFM DX2042 - Multifunction display for monitoring analogue standard signals DISPLAY/AX460/PNP OUT/AC/DC

Clearly readable colour display with touch screen.
Large AC/DC operating voltage range.
Reliable monitoring of sensors with analogue standard signals.
Freely scalable display values and signal combinations.
Switching outputs to reliably monitor limit values

Dimensions [mm]	48 x 112 x 116

Application	displaying and monitoring analogue signals; e.g. pressure sensors, temperature sensors or flow sensors

Frequency AC [Hz]	50...60
Operating voltage [V]	115...230 AC / 18...30 DC
Current consumption [mA]	100

Inputs / outputs

Number of inputs and outputs	Number of analogue inputs: 2; Number of digital outputs: 4

Inputs

Number of analogue inputs	2;(Spannungs- oder Stromeingang)
Analogue input (current) [mA]	0...20
Analogue input (voltage) [V]	-10...10
Resolution of analogue input	16 bit
Precision analogue input [%]	0,1

Outputs

Number of digital outputs	4
Overload protection	yes

Operating conditions

Ambient temperature [°C]	-20...60
Storage temperature [°C]	-25...70
Protection	IP 65
Protection rating terminals	IP 20

Tests / approvals

EMC	EN 61000-6-2 EN 61000-6-3 EN 61000-6-4

Weight [g]	350.5
Type of mounting	panel cutout: 91 x 43 mm
Dimensions [mm]	48 x 112 x 116
Materials	Noryl UL94-V-0

Displays / operating elements

Display	colour display full graphic LCD display, touch screen

Electrical connection

Connection	screw terminals:
