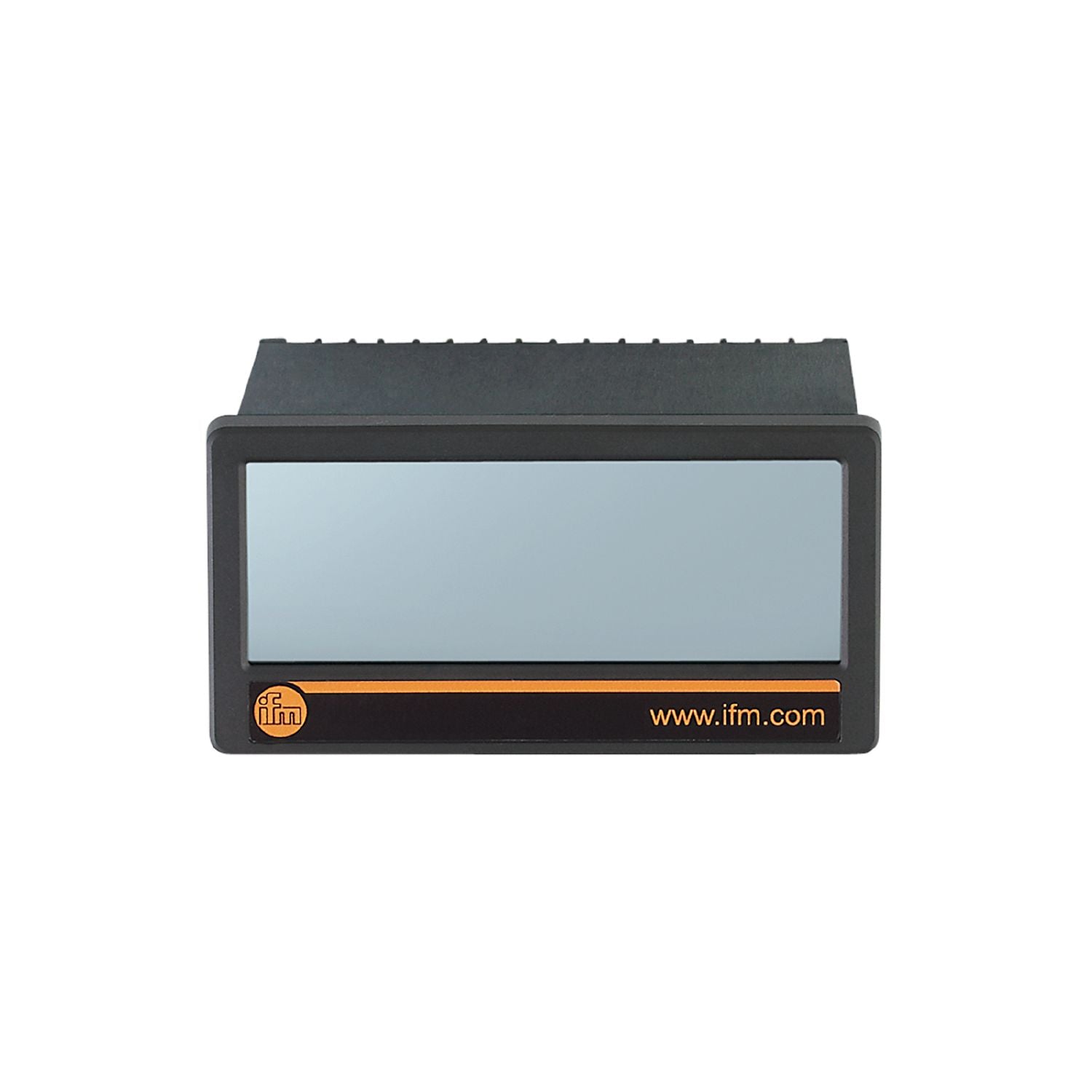

displaying and monitoring analogue signals; e.g. pressure sensors, temperature sensors or flow sensors
Frequency AC [Hz]
50...60
Operating voltage [V]
115...230 AC / 18...30 DC
Current consumption [mA]
100
Power consumption [W]
3
Inputs / outputs
Number of inputs and outputs
Number of analogue inputs: 2; Number of digital outputs: 4; Number of analogue outputs: 1
Inputs
Number of analogue inputs
2;(Spannungs- oder Stromeingang)
Analogue input (current) [mA]
0...20
Analogue input (voltage) [V]
-10...10
Resolution of analogue input
16 bit
Precision analogue input [%]
0,1
Outputs
Number of digital outputs
4
Max. current load per output [mA]
200
Number of analogue outputs
1
Analogue current output [mA]
0...20
Max. load [Ω]
270
Analogue voltage output [V]
-10...10
Precision analogue output [%]
0,1
Overload protection
yes
Resolution of analogue output
16 bit
Operating conditions
Ambient temperature [°C]
-20...60
Storage temperature [°C]
-25...70
Protection
IP 65
Protection rating terminals
IP 20
Tests / approvals
EMC
EN 61000-6-2
EN 61000-6-3
EN 61000-6-4
Weight [g]
350.5
Type of mounting
panel cutout: 91 x 43 mm
Dimensions [mm]
48 x 112 x 116
Materials
Noryl UL94-V-0
Displays / operating elements
Display
colour display
full graphic LCD display, touch screen
Electrical connection
Connection
screw terminals:
