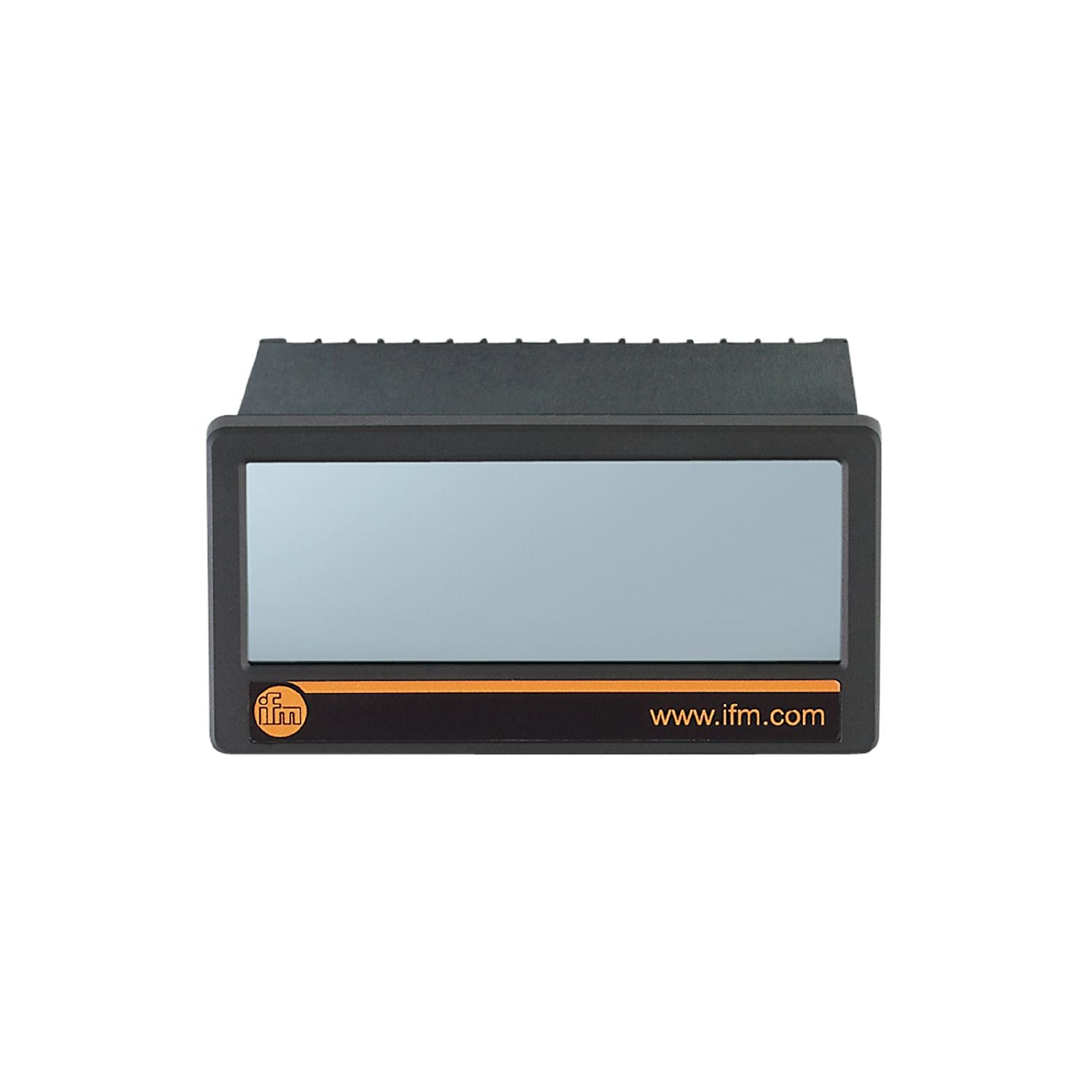

IFM DX2051 - Multifunction display for monitoring analogue standard signals DISPLAY/AX460/DC

Clearly readable colour display with touch screen.
Large operating voltage range.
Reliable monitoring of sensors with analogue standard signals.
Freely scalable display values and signal combinations

Dimensions [mm]	48 x 112 x 116

Application	displaying and monitoring analogue signals; e.g. pressure sensors, temperature sensors or flow sensors

Operating voltage [V]	18...30 DC
Current consumption [mA]	100

Inputs / outputs

Number of inputs and outputs	Number of analogue inputs: 2

Inputs

Number of analogue inputs	2;(Spannungs- oder Stromeingang)
Analogue input (current) [mA]	0...20
Analogue input (voltage) [V]	-10...10
Resolution of analogue input	16 bit
Precision analogue input [%]	0,1

Operating conditions

Ambient temperature [°C]	-20...60
Storage temperature [°C]	-25...70
Protection	IP 65
Protection rating terminals	IP 20

Tests / approvals

EMC	EN 61000-6-2 EN 61000-6-3 EN 61000-6-4

Weight [g]	300.5
Type of mounting	panel cutout: 91 x 43 mm
Dimensions [mm]	48 x 112 x 116
Materials	Noryl UL94-V-0

Displays / operating elements

Display	colour display full graphic LCD display, touch screen

Electrical connection

Connection	screw terminals:

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DX2051-00 — 20.03.2017 —
