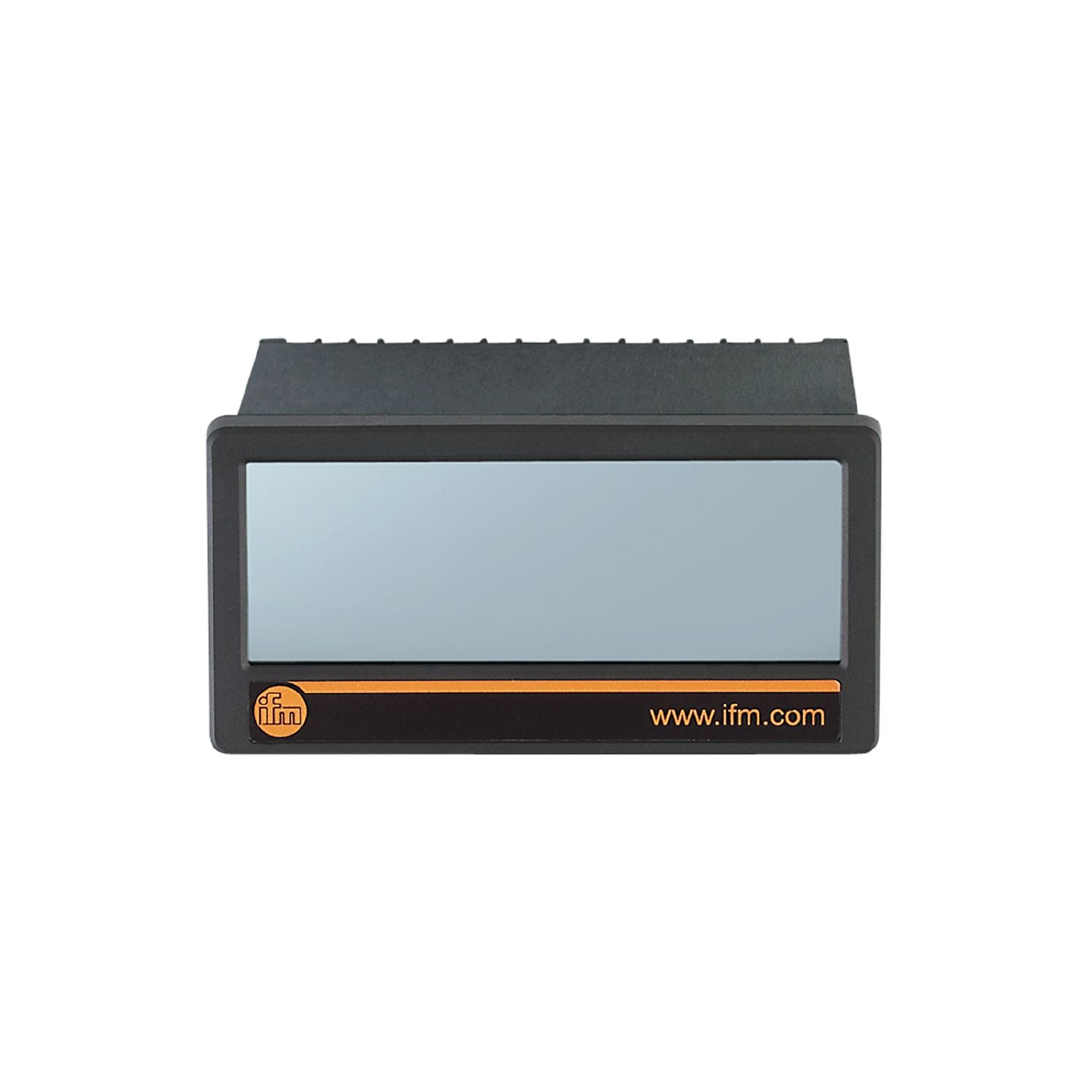

IFM DX2052 - Multifunction display for monitoring analogue standard signals DISPLAY/AX460/PNP OUT/DC

Clearly readable colour display with touch screen.
Large operating voltage range.
Reliable monitoring of sensors with analogue standard signals.
Freely scalable display values and signal combinations.
Switching outputs to reliably monitor limit values

Dimensions [mm]	48 x 112 x 116

Application	displaying and monitoring analogue signals; e.g. pressure sensors, temperature sensors or flow sensors

Operating voltage [V]	18...30 DC
Current consumption [mA]	100

Inputs / outputs

Number of inputs and outputs	Number of analogue inputs: 2; Number of digital outputs: 4

Inputs

Number of analogue inputs	2;(Spannungs- oder Stromeingang)
Analogue input (current) [mA]	0...20
Analogue input (voltage) [V]	-10...10
Resolution of analogue input	16 bit
Precision analogue input [%]	0,1

Outputs

Number of digital outputs	4
Overload protection	yes

Operating conditions

Ambient temperature [°C]	-20...60
Storage temperature [°C]	-25...70
Protection	IP 65
Protection rating terminals	IP 20

Tests / approvals

EMC	EN 61000-6-2 EN 61000-6-3 EN 61000-6-4

Weight [g]	299.5
Type of mounting	panel cutout: 91 x 43 mm
Dimensions [mm]	48 x 112 x 116
Materials	Noryl UL94-V-0

Displays / operating elements

Display	colour display full graphic LCD display, touch screen

Electrical connection

Connection	screw terminals:

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DX2052-00 — 20.03.2017 —
