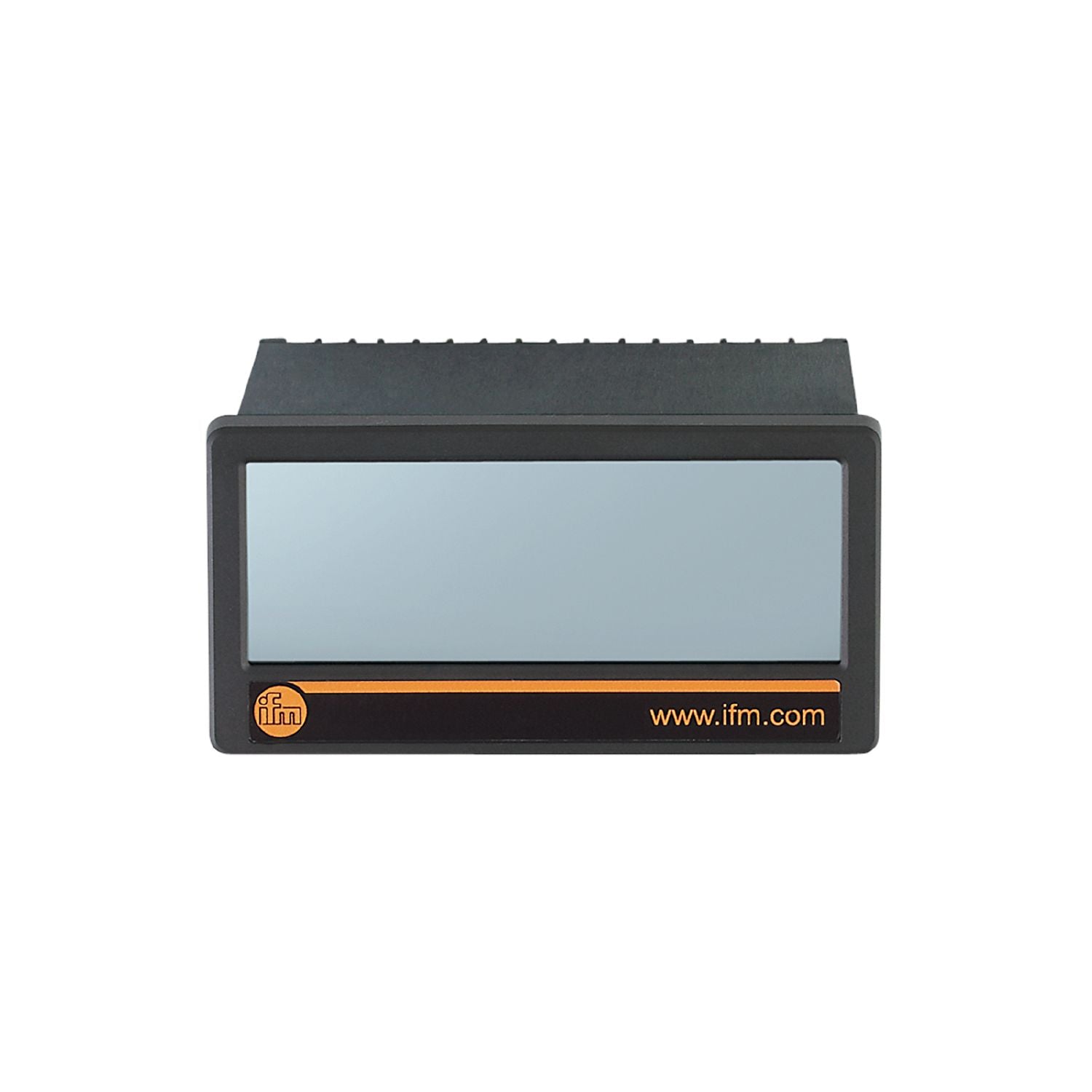

displaying and monitoring analogue signals; e.g. pressure sensors, temperature sensors or flow sensors
Operating voltage [V]
18...30 DC
Current consumption [mA]
100
Inputs / outputs
Number of inputs and outputs
Number of analogue inputs: 2; Number of digital outputs: 4
Inputs
Number of analogue inputs
2;(Spannungs- oder Stromeingang)
Analogue input (current) [mA]
0...20
Analogue input (voltage) [V]
-10...10
Resolution of analogue input
16 bit
Precision analogue input [%]
0,1
Outputs
Number of digital outputs
4
Max. current load per output [mA]
200
Overload protection
yes
Interfaces
Communication interface
IO-Link
Transmission type
COM3 (230,4 kBaud)
IO-Link revision
1.1
Required master port type
A
Min. process cycle time [ms]
3
Operating conditions
Ambient temperature [°C]
-20...60
Storage temperature [°C]
-25...70
Protection
IP 65
Protection rating terminals
IP 20
Tests / approvals
EMC
EN 61000-6-2
EN 61000-6-3
EN 61000-6-4
Weight [g]
318
Type of mounting
panel cutout: 91 x 43 mm
Dimensions [mm]
48 x 112 x 116
Materials
Noryl UL94-V-0
Displays / operating elements
Display
colour display
full graphic LCD display, touch screen
Electrical connection
Connection
screw terminals:
