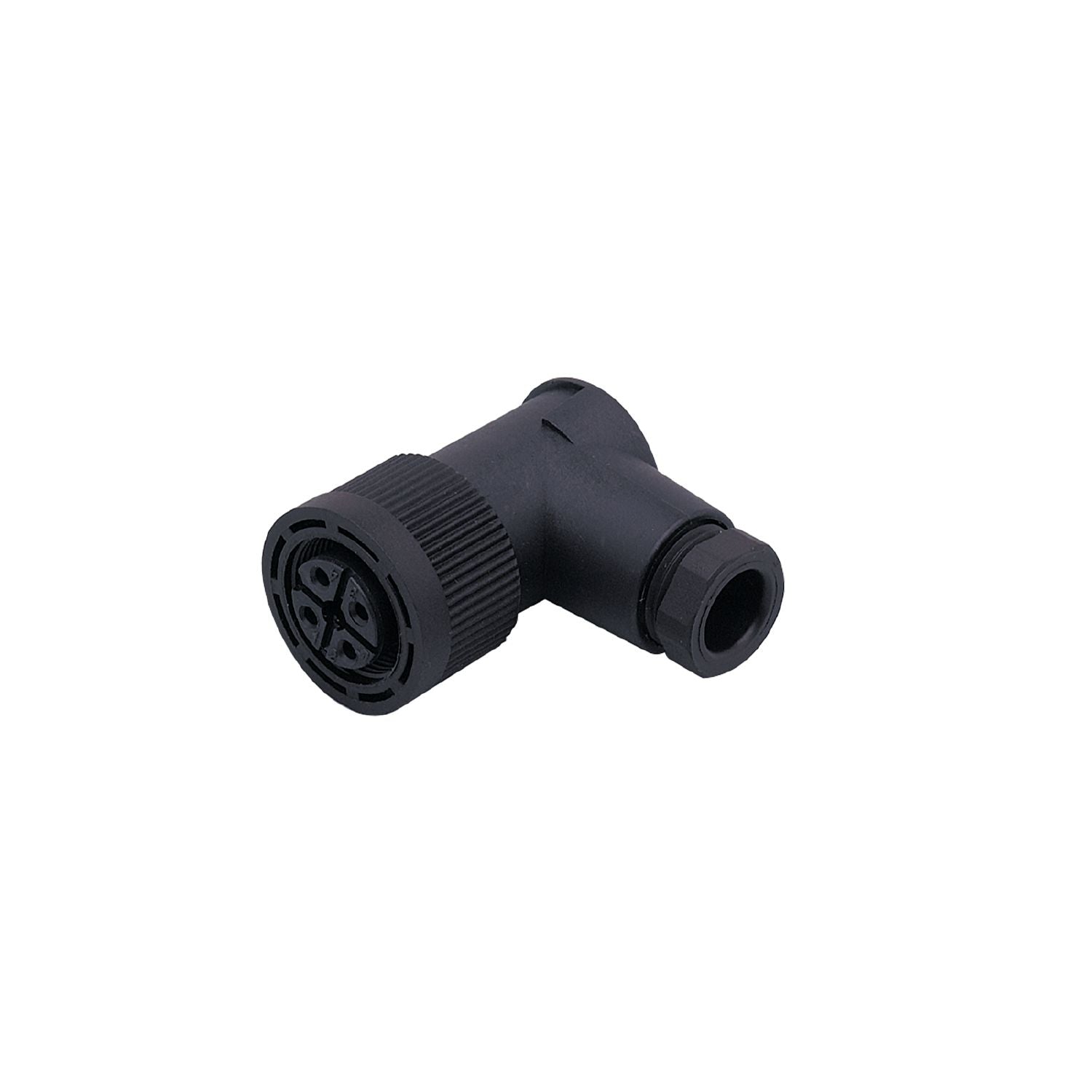

IFM E10013 - Wirable socket SDOAJ040PLSFKPG

Angled type for use where space is restricted.
Wide operating temperature range.
Gold-plated contacts for reliable electrical connections.
Safe cable connection with screw terminals

Operating voltage [V]	< 250 AC/DC
Max. current load total [A]	4;(...40 °C)

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 65

Weight [g]	31.4
Dimensions [mm]	43 x 25 x 36
Materials	PA
Moulded-body material	PA
Material nut	PA

Pack quantity	1 pcs.

Electrical connection

	terminals: ...0.75 mm²; Cable sheath: Ø 6...8 mm

Electrical connection - socket

Connection	Connector: 1 x M18, angled; coding: A; Moulded body: PA; Locking: PA
