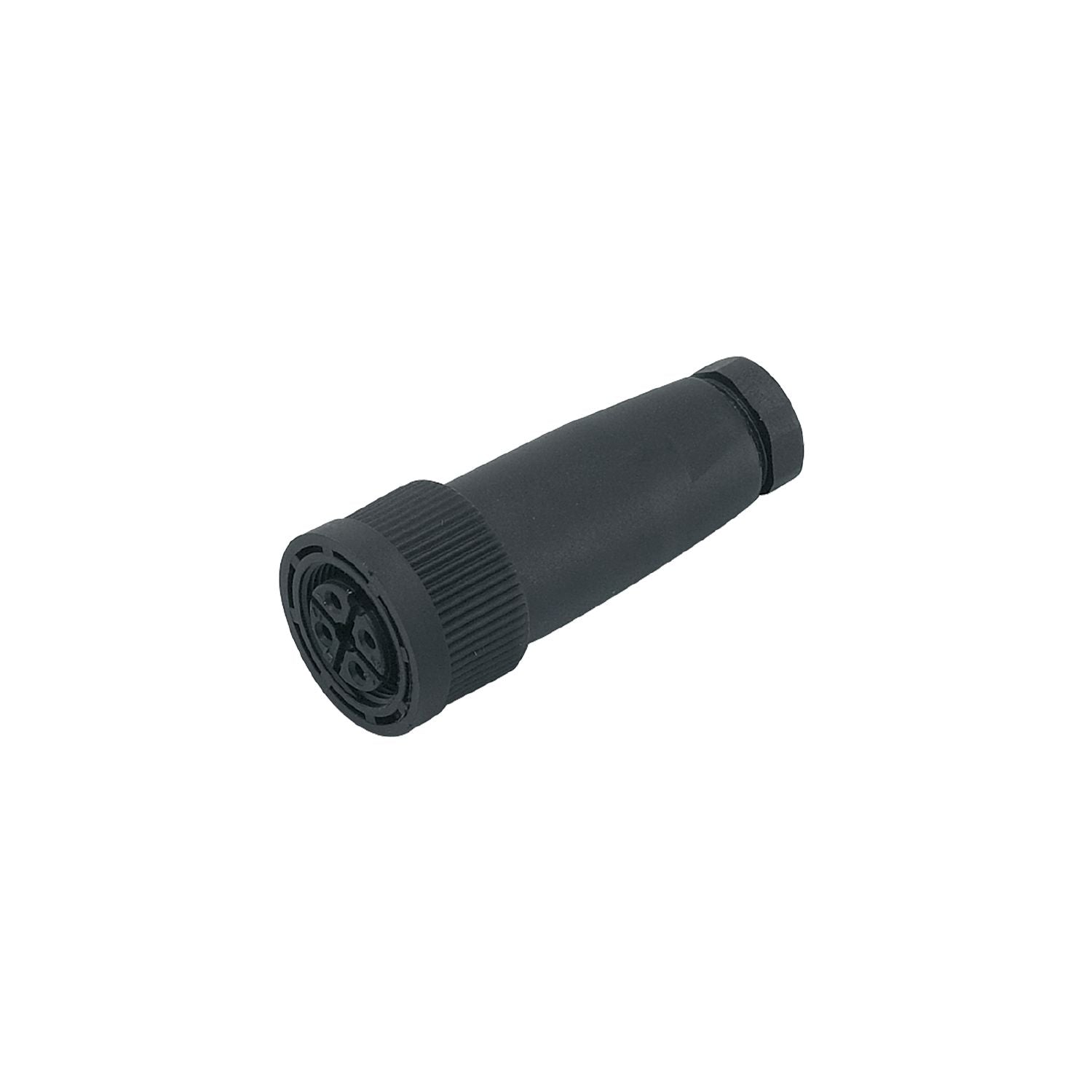

For applications in hazardous areas. Wide operating temperature range. Gold-plated contacts for reliable electrical connections. High protection rating for the requirements of harsh industrial environments. Safe cable connection with screw terminals
Application
connection to certified intrinsically safe circuits
Operating conditions
Ambient temperature [°C]
-20...80
Protection
IP 65
Tests / approvals
Approval
BVS 05 ATEX E106
ATEX marking
II 1G Ex ia IIC T6 Ga
II 1D Ex ia IIIB T85°C Da
II 1D Ex ia IIIC T85°C Da
Weight [g]
35.7
Dimensions [mm]
25 x 25 x 56
Materials
PA
Moulded-body material
PA
Material nut
PA
Remarks
Ta according to table "Total power of the current circuits" in the corresponding operating instructions (safety-related part ATEX)
Several intrinsically safe circuits may be connected to the sockets.
The sum of the voltages of one or more intrinsically safe circuits must not exceed the following value:
Utotal max = 60 V (peak value)
Pack quantity
1 pcs.
Electrical connection
terminals: ...0.75 mm²; Cable sheath: Ø 6...8 mm
Electrical connection - socket
Connection
Connector: 1 x M18, straight; coding: A; Moulded body: PA; Locking: PA
