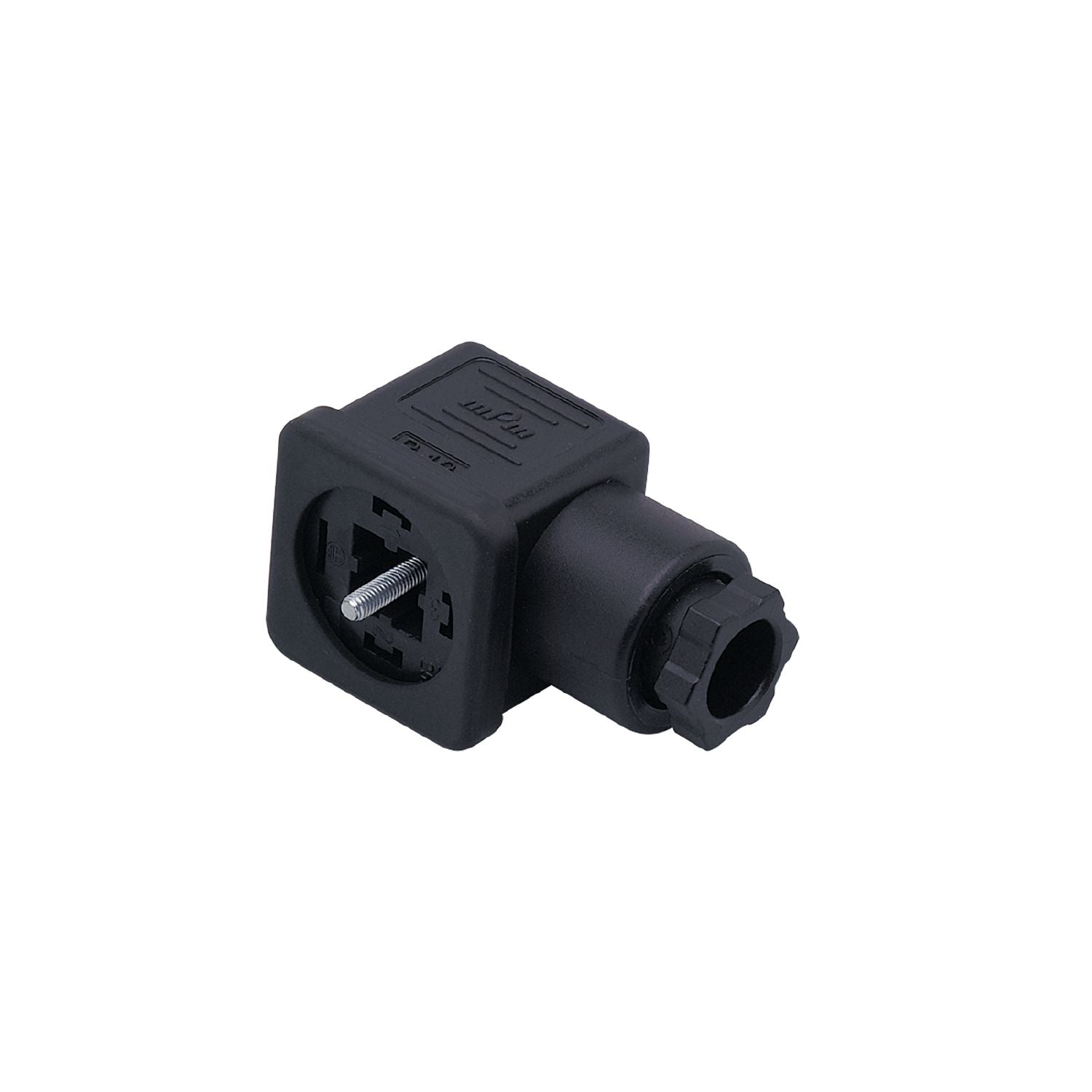

IFM E10058 - Wirable valve connector VALVE PLUG TYPE A

Reliable connection of valves in the field.
Angled type for use where space is restricted.
Wide operating temperature range

Special feature	Free from silicone
Free from silicone	yes

Operating voltage [V]	< 45 AC / < 70 DC
Max. current load total [A]	16

Operating conditions

Ambient temperature [°C]	-40...125
Protection	IP 65

Weight [g]	28
Dimensions [mm]	42 x 29 x 28
Materials	PA
Moulded-body material	PA

Pack quantity	1 pcs.

Electrical connection

	terminals: ...1.5 mm²; Cable sheath: Ø 6...8 mm

Electrical connection - socket

Connection	Connector: 1 x valve plug type A DIN, angled; Moulded body: PA
