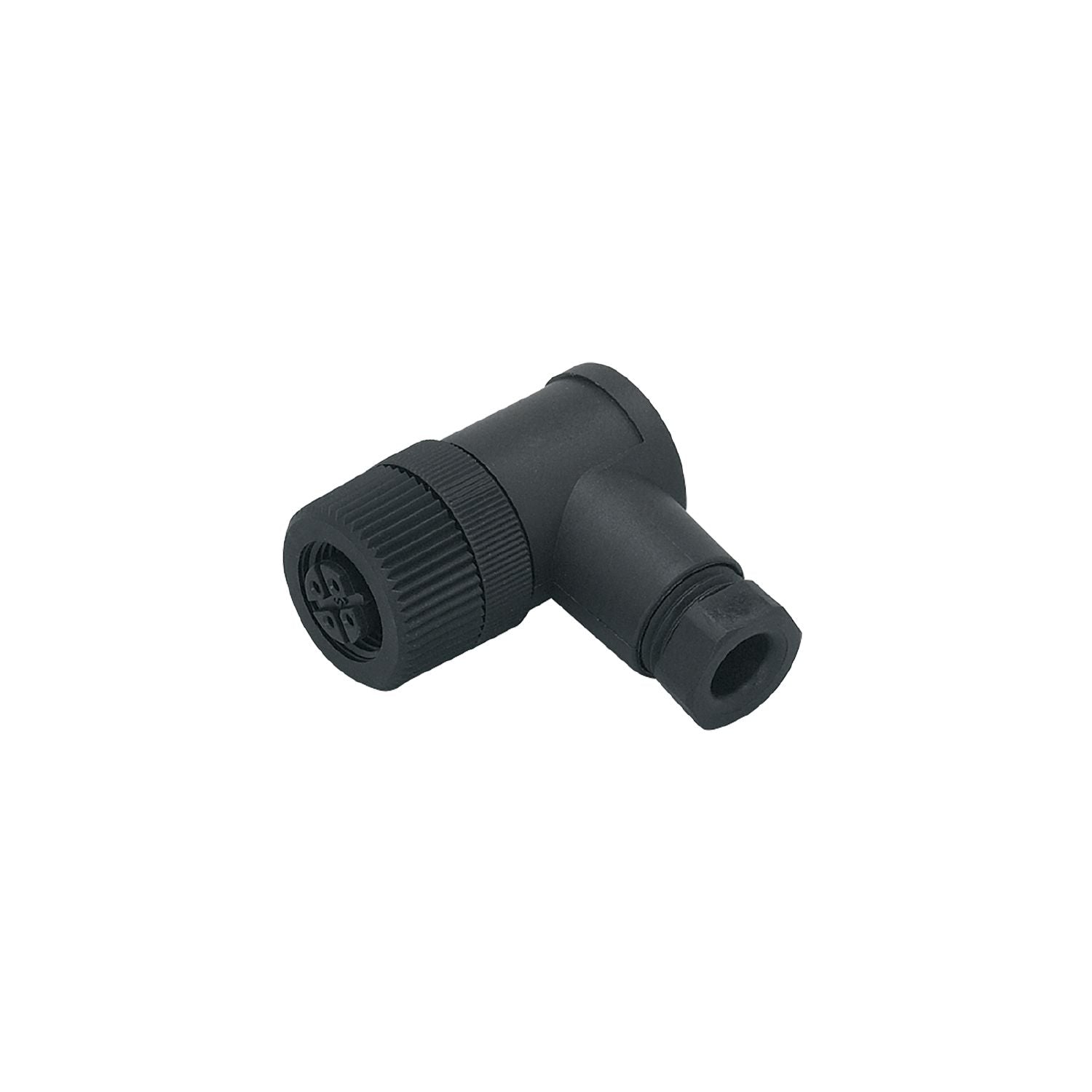

IFM E10108 - Wirable socket SDOAH040PLSFKPG

Angled type for use where space is restricted.
Wide operating temperature range.
Gold-plated contacts for reliable electrical connections.
High protection rating for the requirements of harsh industrial environments.
Safe cable connection with screw terminals

Operating voltage [V]	< 250 AC

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 67

Weight [g]	15.2
Dimensions [mm]	36 x 20 x 30
Materials	PBT
Moulded-body material	PBT
Material nut	PA

Pack quantity	1 pcs.

Electrical connection

	screw terminals: ...0.5 mm²; Cable gland: PG 7

Electrical connection - socket

Connection	Connector: 1 x M12, angled; coding: B; Moulded body: PBT; Locking: PA

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E10108-00 — 06.03.2003 —
