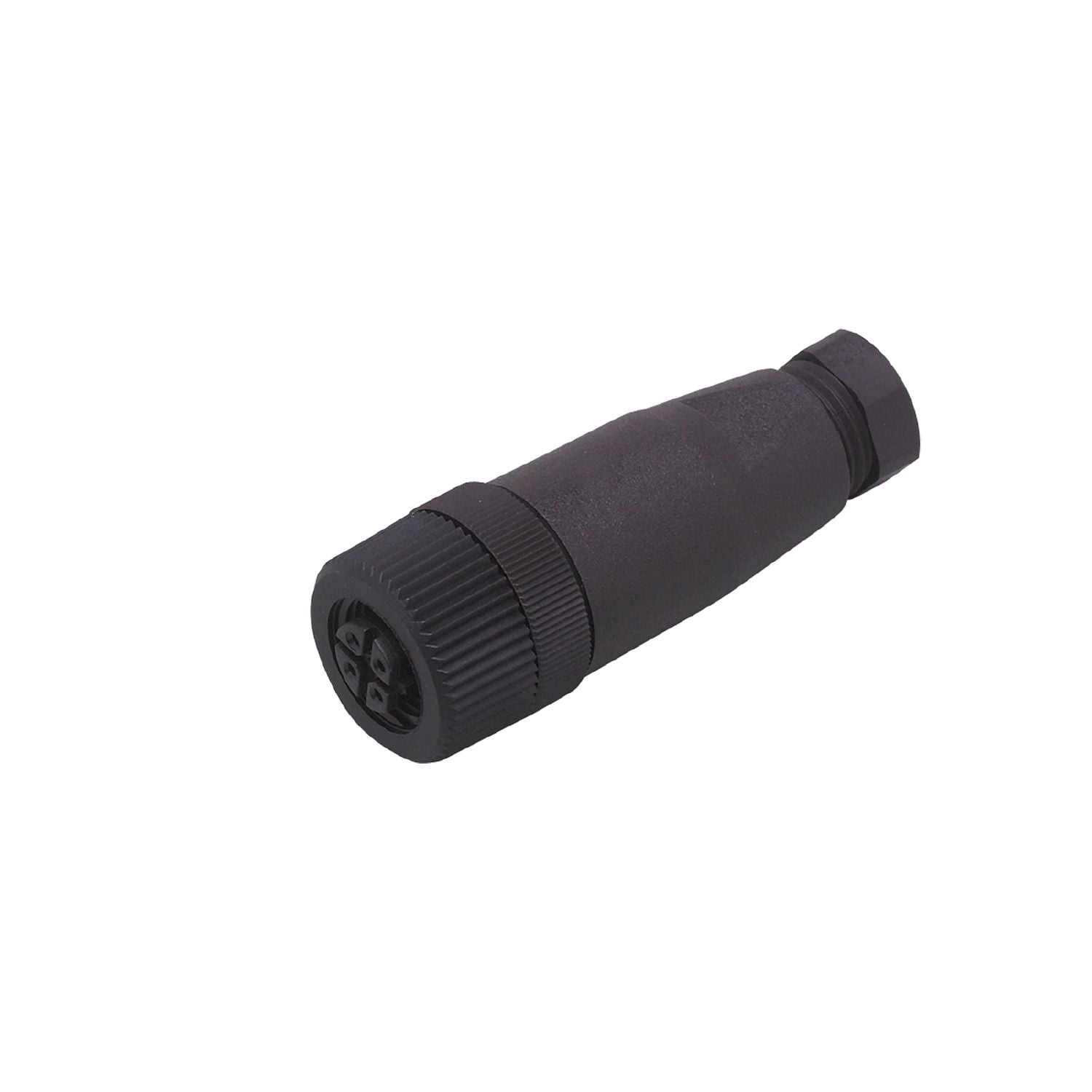

IFM E10109 - Wirable socket SDOGH040PLSFKPG

Wide operating temperature range.
Gold-plated contacts for reliable electrical connections.
High protection rating for the requirements of harsh industrial environments.
Safe cable connection with screw terminals

Operating voltage [V]	< 45 AC / < 70 DC
Max. current load total [A]	4;(...40 °C)

Operating conditions

Ambient temperature [°C]	-25...85
Protection	IP 67

Weight [g]	14.9
Dimensions [mm]	18 x 18 x 46
Materials	PA
Moulded-body material	PA
Material nut	PA

Pack quantity	1 pcs.

Electrical connection

	screw terminals: ...0.75 mm²; Cable sheath: Ø 4...6 mm

Electrical connection - socket

Connection	Connector: 1 x M12, straight; coding: B; Moulded body: PA; Locking: PA

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E10109-00 — 06.03.2003 —
