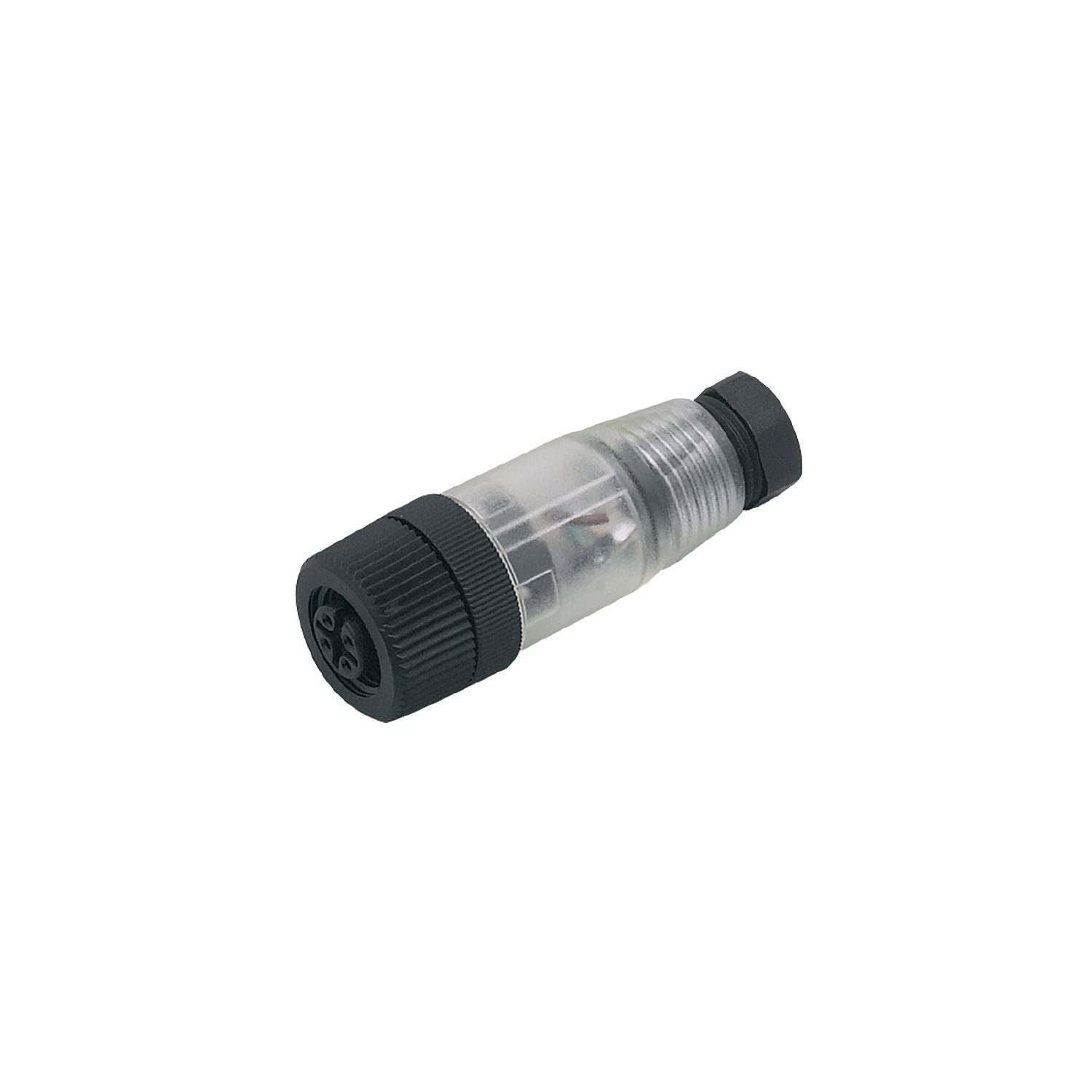

IFM E10136 - Wirable socket SDOGH042PLSFKPG

Clearly visible LED.
Wide operating temperature range.
Gold-plated contacts for reliable electrical connections.
High protection rating for the requirements of harsh industrial environments.
Safe cable connection with screw terminals

Operating voltage [V]	10...30 DC

Outputs

Electrical design	PNP

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 67

Weight [g]	14
Dimensions [mm]	18 x 18 x 46
Materials	PA
Moulded-body material	PA
Material nut	PA

Displays / operating elements

Display	switching status 1 x LED, yellow operation 1 x LED, green

Pack quantity	1 pcs.

Electrical connection

	screw terminals: ...0.75 mm²; Cable sheath: Ø 4...6 mm

Electrical connection - socket

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: PA; Locking: PA

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E10136-00 — 06.03.2003 —
